Impulse Response

The impulse response of a digital filter is the output arising from the unit impulse sequence defined as

δ(n)={1,n=0,0,n0.

You can generate an impulse sequence a number of ways; one straightforward way is

imp = [1; zeros(49,1)];

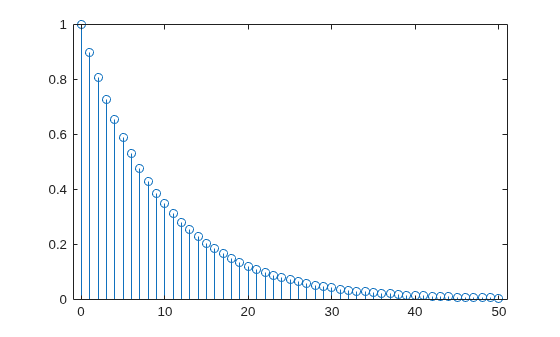

The impulse response of the simple filter with b=1 and a=[1-0.9] is h(n)=0.9n, which decays exponentially.

b = 1;
a = [1 -0.9];

h = filter(b,a,imp);

stem(0:49,h)

A simple way to display the impulse response is with the Filter Visualization Tool, fvtool.

fvtool(b,a)

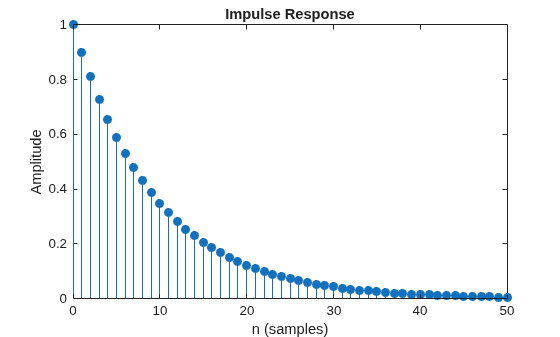

Click the Impulse Response button, [], on the toolbar, select Analysis > Impulse Response from the menu, or type the following code to obtain the exponential decay of the single-pole system.

fvtool(b,a,'Analysis','impulse')
