rosApplyTransform

Transform ROS and ROS 2 message entities into target frame

Since R2021a

collapse all in page

Syntax

tfentity = rosApplyTransform(tfmsg,entity)

Description

tfentity = rosApplyTransform(tfmsg,entity) applies the transformation represented by the 'TransformStamped' ROS or ROS 2 message to the input message structure entity.

This function determines the message type of entity and applies the appropriate transformation method to it.

example

Examples

collapse all

Open Live Script

Load ROS 2 point cloud and transformation messages.

load("ros2PtcloudMsgs.mat")

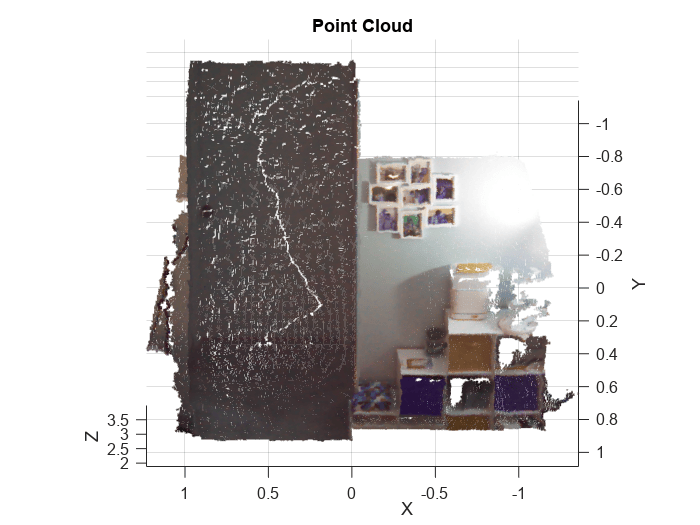

Visualize the point cloud message ptcloudMsg1.

rosPlot(ptcloudMsg1)
xlabel('X')
ylabel('Y')
zlabel('Z')
view([-180 80])

Note that the vertical direction in the point cloud is represented by the y-axis. You can transform the point cloud such that the z-axis represents the vertical direction. To accomplish this transformation, use the geometry_msgs/TransformStamped message, tfMsg, which contains a transform that rotates the points to a target frame that is 90 degrees in the clockwise direction along x-axis. Read the translation and rotation values from tfMsg using the rosReadTransform function.

[trans,rot] = rosReadTransform(tfMsg,OutputOption="pair")
trans = 3×1

     0
     0
     0


rot = 3×3

    1.0000         0         0
         0    0.0000    1.0000
         0   -1.0000    0.0000

Transform the point cloud to the target frame using the rosApplyTransform function.

transformedPtcloudMsg = rosApplyTransform(tfMsg,ptcloudMsg1);

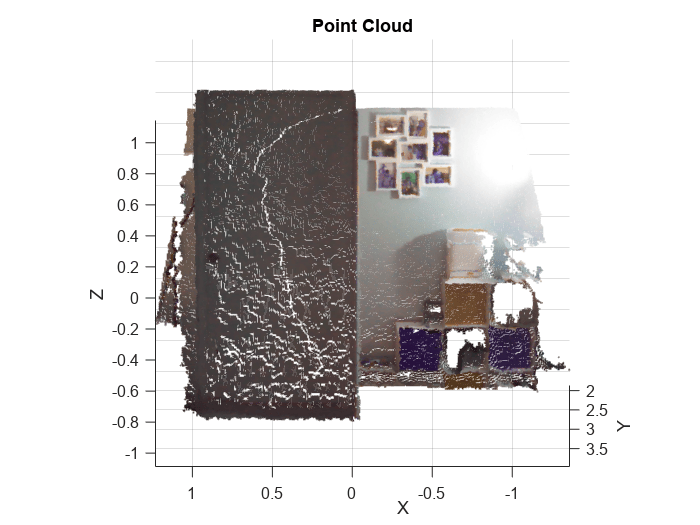

Visualize the transformed point cloud. Note that the vertical direction is now represented by the z-axis.

rosPlot(transformedPtcloudMsg)
view(-180,14)

Input Arguments

collapse all

Transformation message, specified as a TransformStamped ROS or ROS 2 message handle. The tfmsg is a ROS or ROS 2 message of type: 'geometry_msgs/TransformStamped'.

ROS or ROS 2 message, specified as a message structure.

Supported messages are:

  • geometry_msgs/PointStamped

  • sensor_msgs/PointCloud2

  • geometry_msgs/PoseStamped

  • geometry_msgs/QuaternionStamped

  • geometry_msgs/Vector3Stamped

Output Arguments

collapse all

Transformed ROS or ROS 2 message, returned as a message structure.

Extended Capabilities

expand all

Version History

Introduced in R2021a
