# Minimum Snap Polynomial Trajectory

Generate minimum snap polynomial trajectories through multiple waypoints

• Library:
• UAV Toolbox / Algorithms

Robotics System Toolbox / Utilities

## Description

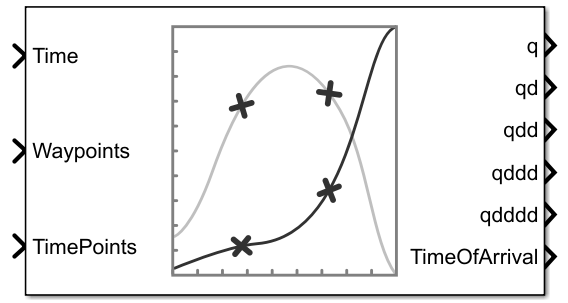

The Minimum Snap Polynomial Trajectory block generates minimum snap polynomial trajectories that pass through the waypoints at the times specified in time points. The block outputs positions, velocities, accelerations, jerks, snap, and time of arrival for achieving this trajectory based on the `Time` input.

The block also accepts boundary conditions for waypoints. The block also outputs the coefficients for the polynomials and status of the trajectory generation.

The initial and final values of positions, velocities, accelerations, jerks, and snap of the trajectory are held constant outside the time period defined in `TimePoints` input.

## Ports

### Input

expand all

Time point along the trajectory, specified as a scalar or vector.

• When the time is specified as a scalar, this value is synced with simulation time and is used to specify the time point for sampling the trajectory. The block outputs a vector of the trajectory variables at that instance in time.

• If the time is specified as a vector, the block outputs a matrix with each column corresponding to each element of the vector.

Data Types: `single` | `double`

Positions of waypoints of the trajectory at given time points, specified as an n-by-p matrix. n is the dimension of the trajectory and p is the number of waypoints.

Data Types: `single` | `double`

Time points for the waypoints of the trajectory, specified as a p-element row vector. p is the number of waypoints.

Data Types: `single` | `double`

Velocity boundary conditions for waypoints, specified as an n-by-p matrix. Each row sets the velocity boundary for the corresponding dimension of the trajectory n at each of p waypoints.

By default, the block uses a value of `0` at the boundary waypoints and `NaN` at the intermediate waypoints.

#### Dependencies

To enable this input port, select `Show boundary conditions input ports`.

Data Types: `single` | `double`

Acceleration boundary conditions for waypoints, specified as an n-by-p matrix. Each row sets the acceleration boundary for the corresponding dimension of the trajectory n at each of p waypoints.

By default, the block uses a value of `0` at the boundary waypoints and `NaN` at the intermediate waypoints.

#### Dependencies

To enable this input port, select `Show boundary conditions input ports`.

Data Types: `single` | `double`

Jerk boundary conditions for waypoints, specified as an n-by-p matrix. Each row sets the jerk boundary for the corresponding dimension of the trajectory n at each of p waypoints.

By default, the block uses a value of `0` at the boundary waypoints and `NaN` at the intermediate waypoints.

#### Dependencies

To enable this input port, select `Show boundary conditions input ports`.

Data Types: `single` | `double`

Snap boundary conditions for waypoints, specified as an n-by-p matrix. Each row sets the snap boundary for the corresponding dimension of the trajectory n at each of p waypoints.

By default, the block uses a value of `0` at the boundary waypoints and `NaN` at the intermediate waypoints.

#### Dependencies

To enable this input port, select `Show boundary conditions input ports`.

Data Types: `single` | `double`

### Output

expand all

Positions of the trajectory, returned as an n-element vector or n-by-m matrix.

• If you specify a scalar for the `Time` input with an n-dimensional trajectory, the output is a vector with n-elements.

• If you specify a vector of m-elements for the `Time` input, the output is an n-by-m matrix.

Data Types: `single` | `double`

Velocities of the trajectory, returned as an n-element vector or n-by-m matrix.

• If you specify a scalar for the `Time` input with an n-dimensional trajectory, the output is a vector with n-elements.

• If you specify a vector of m-elements for the `Time` input, the output is an n-by-m matrix.

Data Types: `single` | `double`

Accelerations of the trajectory, returned as an n-element vector or n-by-m matrix.

• If you specify a scalar for the `Time` input with an n-dimensional trajectory, the output is a vector with n-elements.

• If you specify a vector of m-elements for the `Time` input, the output is an n-by-m matrix.

Data Types: `single` | `double`

Jerks of the trajectory, returned as an n-element vector or n-by-m matrix.

• If you specify a scalar for the `Time` input with an n-dimensional trajectory, the output is a vector with n-elements.

• If you specify a vector of m-elements for the `Time` input, the output is an n-by-m matrix.

Data Types: `single` | `double`

Snaps of the trajectory, returned as an n-element vector or n-by-m matrix.

• If you specify a scalar for the `Time` input with an n-dimensional trajectory, the output is a vector with n-elements.

• If you specify a vector of m-elements for the `Time` input, the output is an n-by-m matrix.

Data Types: `single` | `double`

Time of arrival at each waypoint, returned as a p-element vector. p is the number of waypoints.

Data Types: `single` | `double`

Polynomial coefficients, returned as an n(p`–``1`)-by-`10` matrix. n is the dimension of the trajectory and p is the number of waypoints. Each set of n rows defines the coefficients for the polynomial that described each variable trajectory.

#### Dependencies

To enable this output port, select ```Show polynomial coefficients output port```.

Data Types: `single` | `double`

Status of trajectory generation, returned as a three-element vector of the form ```[SingularityStatus MaxIterStatus MaxTimeStatus]```.

SingularityStatus returned as `0` or `1` indicates the occurrence of singularity. If singularity occurs reduce the `Maximum segment time` to `Minimum segment time` ratio.

MaxIterStatus returned as `0` or `1` indicates if the number of iterations for the solver has exceeded `Maximum iterations`.

MaxTimeStatus returned as `0` or `1` indicates if the time limit for the solver has exceeded `Maximum time`.

#### Dependencies

To enable this output port, select `Show status output port`.

Data Types: `uint8`

## Parameters

expand all

Select this parameter to input the velocity, acceleration, jerk, and snap boundary conditions, at the `VelBC`, `AccelBC`, `JerkBC`, and `SnapBC` ports, respectively.

Tunable: No

Select this parameter to output polynomial coefficients at the `PolynomialCoefs` port.

Tunable: No

Select this parameter to output status at the `Status` port.

Tunable: No

Weight for time allocation, specified as a positive scalar.

Tunable: No

#### Dependencies

To enable this parameter, select `Time allocation`.

Minimum time segment length, specified as a positive scalar or (p`–``1`)-element positive row vector. p is the number of waypoints.

Tunable: No

#### Dependencies

To enable this parameter, select `Time allocation`.

Maximum time segment length, specified as a positive scalar or (p`–``1`)-element positive row vector. p is the number of waypoints.

Tunable: No

#### Dependencies

To enable this parameter, select `Time allocation`.

Maximum iterations for solver, specified as a positive integer scalar.

Tunable: No

#### Dependencies

To enable this parameter, select `Time allocation`.

Maximum time for solver, specified as a positive scalar.

Tunable: No

#### Dependencies

To enable this parameter, select `Time allocation`.

Select the type of simulation to run from these options:

• `Interpreted execution` — Simulate model using the MATLAB® interpreter. This option shortens startup time but has a slower simulation speed than `Code generation`. In this mode, you can debug the source code of the block.

• `Code generation` — Simulate model using generated C code. The first time you run a simulation, Simulink® generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time but the speed of the subsequent simulations is comparable to `Interpreted execution`.

Tunable: No

## References

[1] Bry, Adam, Charles Richter, Abraham Bachrach, and Nicholas Roy. “Aggressive Flight of Fixed-Wing and Quadrotor Aircraft in Dense Indoor Environments.” The International Journal of Robotics Research, 34, no. 7 (June 2015): 969–1002.

[2] Richter, Charles, Adam Bry, and Nicholas Roy. “Polynomial Trajectory Planning for Aggressive Quadrotor Flight in Dense Indoor Environments." Paper presented at the International Symposium of Robotics Research (ISRR 2013), 2013.

## Version History

Introduced in R2022a
