show
Description
show(
displays the PCB component
structure in the figure window.pcbcomponent
)
Examples
Create Default Spiral Inductor
Create and view a default spiral inductor.
inductor = spiralInductor
inductor = spiralInductor with properties: SpiralShape: 'Square' InnerDiameter: 5.0000e-04 Width: 2.5000e-04 Spacing: 2.5000e-04 NumTurns: 4 Height: 0.0010 GroundPlaneLength: 0.0056 GroundPlaneWidth: 0.0056 Substrate: [1x1 dielectric] Conductor: [1x1 metal]
show(inductor)
Create Default Curved U-Bend
Create a curved U-bend with default properties.
curvedubend = ubendCurved
curvedubend = ubendCurved with properties: Name: 'myCurvedubend' ReferencePoint: [0 0] Length: [0.0150 0.0050 0.0150] Width: [0.0050 0.0050 0.0050] CurveRadius: 0.0035
View the shape.

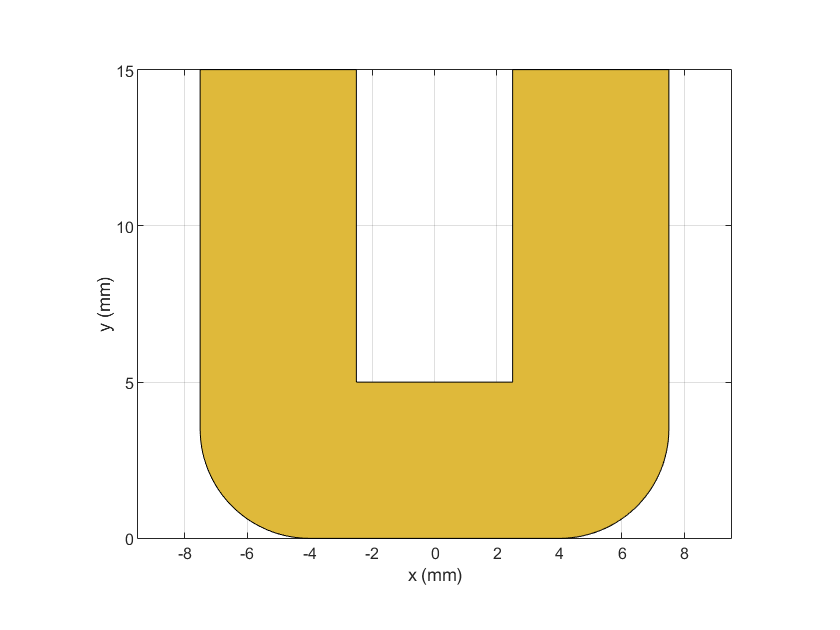

show(curvedubend)
Input Arguments
pcbcomponent
— PCB component object
object handle
PCB component object, specified as an object handle.
Example: microstrip = microstripLine;
show(microstrip)
shape
— Shape created using custom elements and shape objects
object handle
Shape created using custom elements and shape objects of RF PCB Toolbox, specified as an object handle.
Example: shape = bendCurved; show(shape)
Version History
Introduced in R2021b
