volume
Volume of 3-D mesh elements
Description
Examples
Volume of 3-D Mesh
Generate a 3-D mesh and find its volume.
Create a PDE model.
model = createpde;
Import and plot the geometry.
importGeometry(model,"BracketWithHole.stl");
pdegplot(model)
Generate a mesh and plot it.
mesh = generateMesh(model); figure pdemesh(model)
Compute the volume of the entire mesh.
mv = volume(mesh)
mv = 8.0244e-04
Volume of Individual Elements of 3-D Mesh
Generate a 3-D mesh and find the volume of each element.
Create a PDE model.
model = createpde;

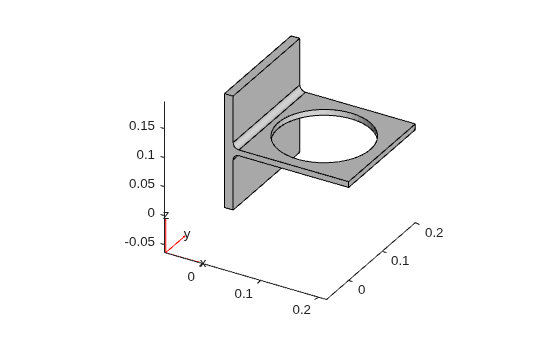

Import and plot the geometry.
importGeometry(model,"BracketWithHole.stl");
pdegplot(model)

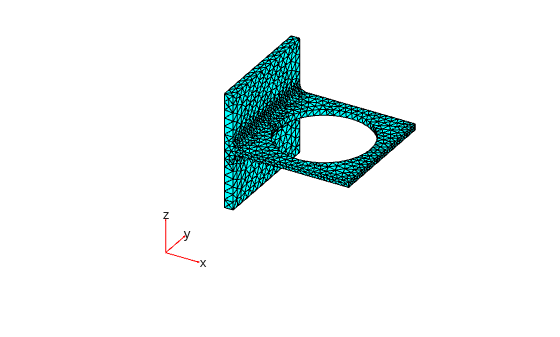

Generate a mesh and plot it.
mesh = generateMesh(model); figure pdemesh(model)
Compute the volume of the entire mesh and the volume of each individual element of the mesh. Display the volumes of the first 5 elements.
[va,vi] = volume(mesh); vi(1:5)
ans = 1×5
10-6 ×
0.3801 0.4653 0.1624 0.4345 0.1729
Total Volume of Group of Elements
Find the combined volume of a group of elements of a 3-D mesh.
Create a PDE model.
model = createpde;
Import and plot the geometry.
importGeometry(model,"BracketWithHole.stl");
pdegplot(model)
Generate a mesh and plot it.
mesh = generateMesh(model); figure pdemesh(model)
Evaluate the shape quality of the mesh elements and find the elements with the quality values less than 0.5.
Q = meshQuality(mesh); elemIDs = find(Q < 0.5);
Compute the total volume of these elements.
mv05 = volume(mesh,elemIDs)
mv05 = 1.4865e-07
Find how much of the total mesh volume belongs to these elements. Return the result as a percentage.
mv05_percent = mv05/volume(mesh)*100
mv05_percent = 0.0185
Input Arguments
mesh
— Mesh object
Mesh
property of a PDEModel
object | output of generateMesh
Mesh object, specified as the Mesh
property of a PDEModel
object or as the
output of generateMesh
.
Example: model.Mesh
elements
— Element IDs
positive integer | matrix of positive integers
Element IDs, specified as a positive integer or a matrix of positive integers.
Example: [10 68 81 97 113 130 136 164]
Output Arguments
V
— Volume
positive number
Volume of the entire mesh or the combined volume of the specified elements of the mesh, returned as a positive number.
VE
— Volume of individual elements
row vector of positive numbers
Volume of individual elements, returned as a row vector of positive numbers.
Version History
Introduced in R2018a
