release

Release the GPS object

Description

example

release(gps) release the system objects, allows configuration of non tunable properties, clear the buffers, and resets the values of SamplesRead and SamplesAvailable properties.

Examples

collapse all

Read data from the GPS receiver connected to the host computer on a specific serial port.

Required Hardware

To run this example, you need:

  • UBlox Neo-6M GPS module

  • GPS antenna

  • USB to UART module

  • USB cable

  • Connecting wires

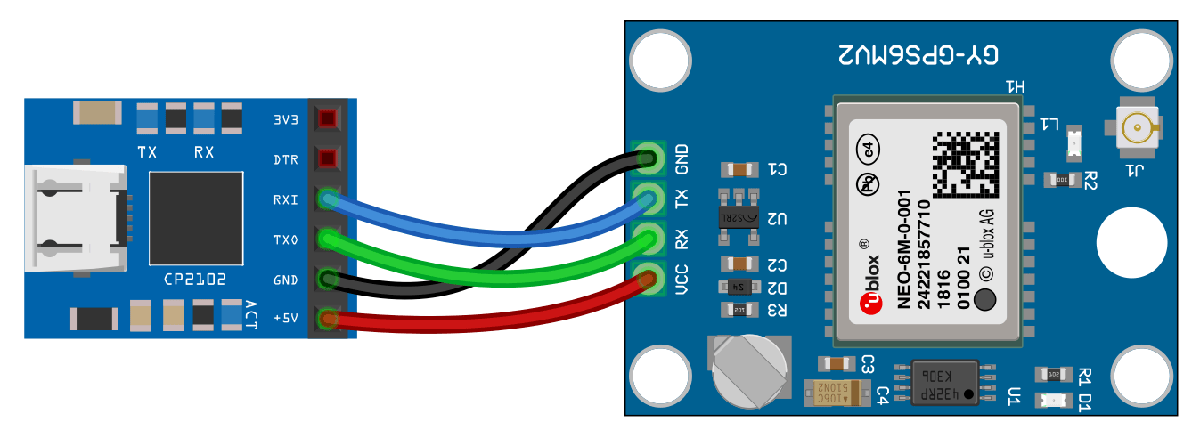

Hardware Connection

Connect the pins on the UBlox Neo-6M GPS module to the pins on your USB to UART module. The connections are:

  • VCC - +5V

  • RX - TXO

  • TX - RXI

  • GND - GND

Connect the GPS antenna to the GPS module. Connect the USB to UART module to the host computer with a USB cable. GPS Fix can be easily acquired in locations that have a clear view of the sky. Wait for the GPS module to acquire satelite signals (Fix).This can be verified by checking the Fix LED (D1) of your GPS module.

Create GPS Object

Create a gpsdev object for the GPS receiver connected to a specific port. Specify the output format of the data as a timetable.

gps = gpsdev('COM4','OutputFormat',"timetable")
gps =
  gpsdev with properties:

                         SerialPort: COM4
                           BaudRate: 9600 (bits/s)

                     SamplesPerRead: 1
                           ReadMode: "latest"
                        SamplesRead: 0
Show all properties all functions

Read the GPS data

Read the GPS data and return them as a timetable.

[tt,overruns] = read(gps)
tt=1×5 timetable
              Time                         LLA               GroundSpeed    Course            DOPs                GPSReceiverTime
    ________________________    _________________________    ___________    ______    ____________________    ________________________

    22-Mar-2021 15:31:15.190    17.47    78.343     449.6      0.25619       NaN      9.31    1.48    9.19    22-Mar-2021 10:01:14.000

overruns = 0

Display number of samples read and the samples available in the host buffer.

gps.SamplesRead
ans = 1
gps.SamplesAvailable
ans = 0

Release the GPS object to configure the non tunable properties. The release function also clears the buffer and resets the SamplesRead and SamplesAvailable properties.

release(gps)

Specify the number of samples per read to 2. Read the GPS data.

gps.SamplesPerRead = 2;
read(gps)
ans=2×5 timetable
              Time                         LLA               GroundSpeed    Course            DOPs                GPSReceiverTime
    ________________________    _________________________    ___________    ______    ____________________    ________________________

    22-Mar-2021 15:31:17.178    17.47    78.343       450     0.063791       NaN      9.32    1.48     9.2    22-Mar-2021 10:01:16.000
    22-Mar-2021 15:31:17.178    17.47    78.343       450     0.063791       NaN      9.32    1.48     9.2    22-Mar-2021 10:01:16.000

Display number of samples read and the samples available in the host buffer.

gps.SamplesRead
ans = 1
gps.SamplesAvailable
ans = 0

Clean Up

When the connection is no longer needed, clear the associated object.

delete(gps);
clear gps;

Input Arguments

collapse all

The GPS sensor, specified as a gpsdev object.

See Also

Objects

Functions

Introduced in R2020b
