Choose Pretrained Cellpose Model for Cell Segmentation

This example shows how to segment cells from microscopy images using a pretrained Cellpose model.

The Cellpose Library [1],[2] provides several pretrained models for cell segmentation in microscopy images. To learn more about each model and its training data, see the Models page of the Cellpose Library Documentation. In this example, you segment an image using three pretrained Cellpose models and visually compare the results. You can use this approach to find the pretrained model that is most suitable for your own images. If none of the pretrained models work well for an image data set, you can train a custom Cellpose model using transfer learning. For more information on training, see the Train Custom Cellpose Model example.

This example requires the Medical Imaging Toolbox™ Interface for Cellpose Library. You can install the Medical Imaging Toolbox Interface for Cellpose Library from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons. The Medical Imaging Toolbox Interface for Cellpose Library requires Deep Learning Toolbox™ and Computer Vision Toolbox™.

Load Image

Read and display an image. This example uses a single-channel grayscale image that is small enough to fit into memory. When working with your own images, consider these tips:

  • Cellpose models expect a 2-D intensity image as input. If you have an RGB or multi-channel image, you can convert to grayscale by using the im2gray function or extract a specific color channel by using the imsplit function. In general, pick the channel with the strongest edges for the cell boundary. If your image contains a separate channel for nuclear staining, consider specifying the nuclear image during segmentation using the AuxiliaryChannel name-value argument of the segmentCells2D function.

  • If you have many images to segment, pick a representative image or subset of images. Use an image that contains cells of the type and shape you want to label in the full data set.

  • If you are working with large images, such as whole-slide microscopy images, extract a representative region of interest. Pick a region containing the cell types you want to label in the full image. For an example that uses the blockedImage object and getRegion object function to extract a region from a large microscopy image, see Process Blocked Images Efficiently Using Partial Images or Lower Resolutions.

img = imread("AT3_1m4_01.tif");

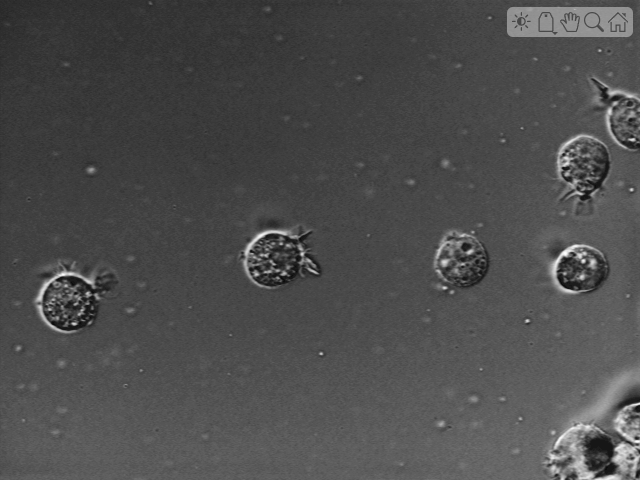

Figure contains an axes object. The axes object contains an object of type image.

Measure Average Cell Diameter

To ensure accurate results, specify the approximate diameter of the cells, in pixels. This example assumes a diameter of 56 pixels.

averageCellDiameter = 56;

Alternatively, you can measure the approximate diameter in the Image Viewer app. Open the app by entering this command:


In the Viewer tab of the app toolstrip, click Measure Distance. In the main display pane, click one point on the boundary of the cell you want to measure, and drag to draw a line across the cell. When you release the button, the app labels the line with a distance measurement, in pixels. You can reposition the endpoints or move the whole line by dragging the ends or middle portion of the line, respectively. This image shows an example of several distance measurements in the app.

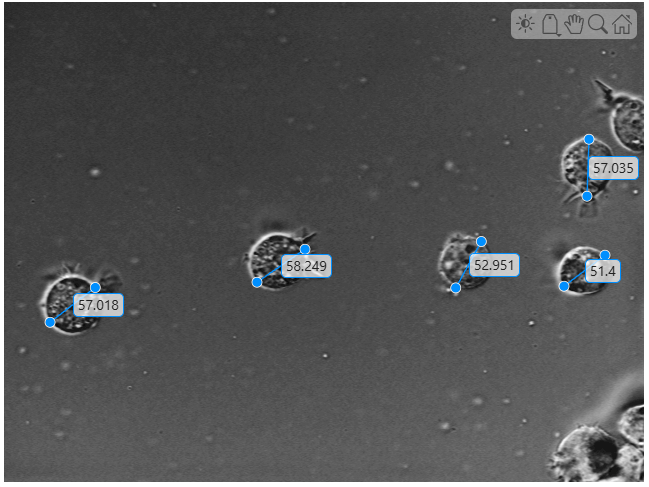

Image Viewer app window showing distance measurements for the diameter of five cells

Segment Image Using Cellpose Models

In this section, you compare the results from three of the pretrained Cellpose Library models: cyto, cyto2, and nuclei.

Configure Cellpose Models

Create a cellpose object for each model, specifying the Model property for each object. The first time you create an object for a given model, MATLAB® downloads the model from the Cellpose Library and saves a local copy. By default, MATLAB saves the models in a folder named cellposeModels within the folder returned by the userpath function. You can change the save location by specifying the ModelFolder property at object creation.

cpCyto = cellpose(Model="cyto");
cpCyto2 = cellpose(Model="cyto2");
cpNuclei = cellpose(Model="nuclei");

Predict Cell Segmentation Labels

Segment the image using each of the three models by using the segmentCells2D object function.

First, specify values for the cell threshold and flow error threshold. The cell threshold typically ranges from –6 to 6, and the flow error threshold typically ranges from 0.1 to 3. For this example, set these values so as to favor a greater number of detections.

cellThreshold = -6;
flowThreshold = 3;

Predict labels for each model. The segmentCells2D object function returns a 2-D label image, where each cell detected by the model has a different numeric pixel value.

labels1 = segmentCells2D(cpCyto,img, ...
    ImageCellDiameter=averageCellDiameter, ...
    CellThreshold=cellThreshold, ...

labels2 = segmentCells2D(cpCyto2,img, ...
    ImageCellDiameter=averageCellDiameter, ...
    CellThreshold=cellThreshold, ...

labels3 = segmentCells2D(cpNuclei,img, ...
    ImageCellDiameter=averageCellDiameter, ...
    CellThreshold=cellThreshold, ...

Compare Results

Visualize the input image and the results from each model. The title for each image includes the model name and the number of cells detected.


h1 = imshow(img);
title("Input image")
h2 = imshow(labeloverlay(img,labels1));
nl = numel(unique(labels1(:))) - 1;
title(cpCyto.Model + " Detected: " + nl + " Cells")
h3 = imshow(labeloverlay(img,labels2));
nl = numel(unique(labels2(:))) - 1;
title(cpCyto2.Model + " Detected: " + nl + " Cells")
h4 = imshow(labeloverlay(img,labels3));
nl = numel(unique(labels3(:))) - 1;
title(cpNuclei.Model + " Detected: " + nl + " Cells")

linkaxes([h1.Parent h2.Parent h3.Parent h4.Parent])

Figure contains 4 axes objects. Axes object 1 with title Input image contains an object of type image. Axes object 2 with title cyto Detected: 82 Cells contains an object of type image. Axes object 3 with title cyto2 Detected: 16 Cells contains an object of type image. Axes object 4 with title nuclei Detected: 37 Cells contains an object of type image.

Zoom in each image to compare the results from each model for a single cell. In general, you want to select a model that accurately detects the correct number of cells, such that it detects one real cell as one cell in the label image. Based on the zoomed in image, the cyto2 model is most suitable for this family of images.

xlim([200 370])
ylim([190 320])

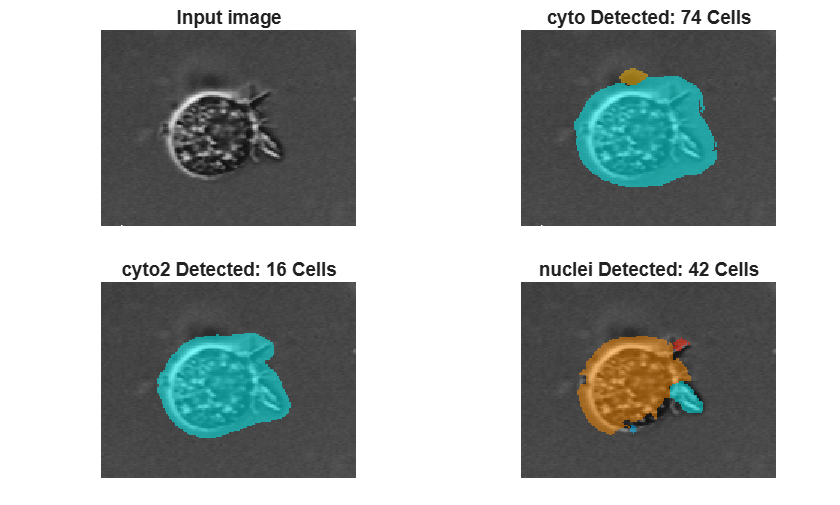

Figure contains 4 axes objects. Axes object 1 with title Input image contains an object of type image. Axes object 2 with title cyto Detected: 82 Cells contains an object of type image. Axes object 3 with title cyto2 Detected: 16 Cells contains an object of type image. Axes object 4 with title nuclei Detected: 37 Cells contains an object of type image.

Once you have selected a model, you can refine the accuracy of the boundaries by tuning parameters such as the cell threshold and flow error threshold. For more information, see the Refine Cellpose Segmentation by Tuning Model Parameters example.


[1] Stringer, Carsen, Tim Wang, Michalis Michaelos, and Marius Pachitariu. “Cellpose: A Generalist Algorithm for Cellular Segmentation.” Nature Methods 18, no. 1 (January 2021): 100–106.

[2] Pachitariu, Marius, and Carsen Stringer. “Cellpose 2.0: How to Train Your Own Model.” Nature Methods 19, no. 12 (December 2022): 1634–41.
