extractFrame

Extract pixel data for one frame of 2-D medical image series

Description

example

X = extractFrame(medImage,frame) extracts the pixel data for the frame at index frame of the medicalImage object medImage.

Examples

collapse all

Specify the name of an echocardiogram series stored as a DICOM file.

fileName = "heartUltrasoundSequence.dcm";

Create a medical image object for the echocardiogram series.

medImage = medicalImage(fileName);

Check the NumFrames property value to determine the number of frames in the series. medImage contains three frames.

numFrames = medImage.NumFrames
numFrames = 3

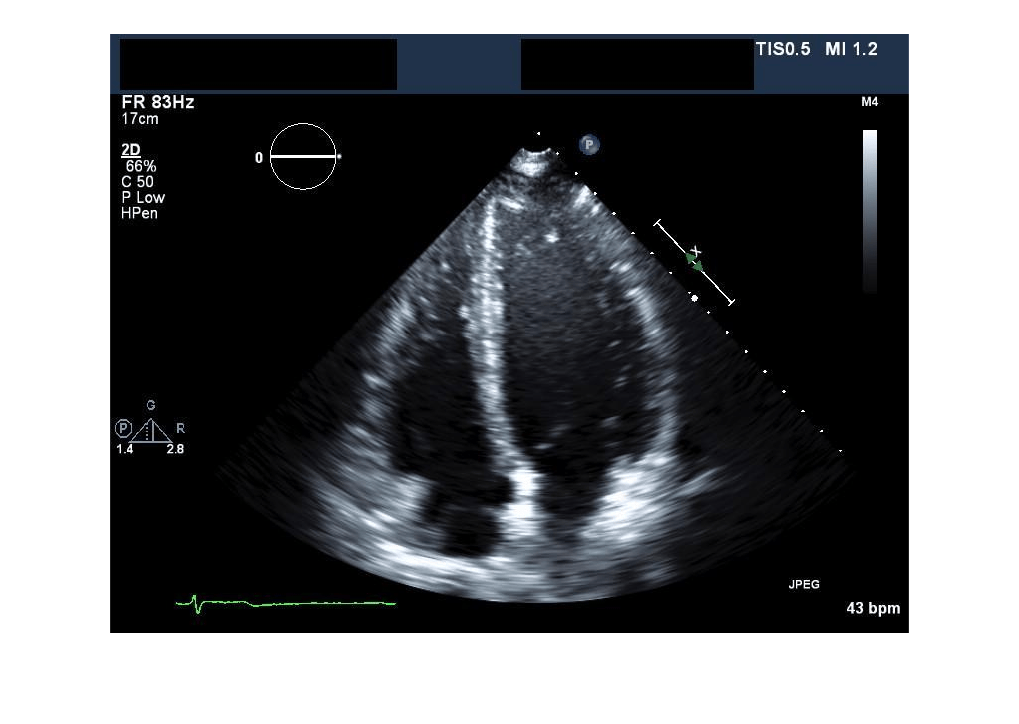

Extract the second frame in the image series. Display the extracted frame image.

X = extractFrame(medImage,2);
imshow(X)

Figure contains an axes object. The axes object contains an object of type image.

Input Arguments

collapse all

Medical image, specified as a medicalImage object.

Frame index, specified as a positive integer scalar in the range [1, numFrames], where numFrames is the number of frames in the image or series of images in medImage. The number of frames is specified by the NumFrames property of medImage.

Data Types: double

Output Arguments

collapse all

Pixel data of the extracted frame, returned as an m-by-n numeric matrix, where m and n are the first two dimensions of the image frame extracted from medImage. The X output matrix is the same data type as the Pixels property of medImage.

Version History

Introduced in R2022b
