polarhistogram
Histogram chart in polar coordinates
Syntax
Description
polarhistogram(
creates
a histogram plot in polar coordinates by sorting the values in theta
)theta
into
equally spaced bins. Specify the values in radians.
polarhistogram(___,
specifies
additional options using one or more name-value pair arguments. For
example, you can use semitransparent bars by specifying Name,Value
)'FaceAlpha'
and
a scalar value between 0 and 1.
polarhistogram(
plots
into the polar axes specified by pax
,___)pax
instead of
into the current axes.
returns
the h
= polarhistogram(___)Histogram
object. Use h
to
modify the histogram after it is created. For a list of properties,
see Histogram Properties.
Examples
Create Histogram Chart in Polar Coordinates
Create a vector of values between 0 and . Create a histogram chart that shows the data sorted into six bins.

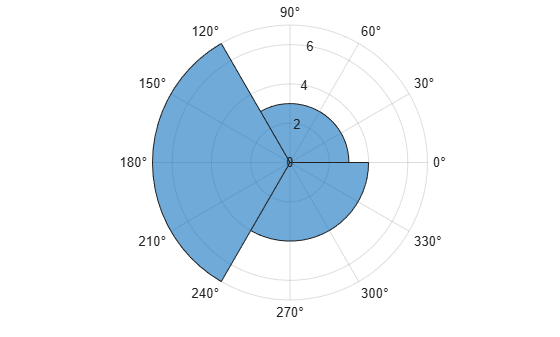

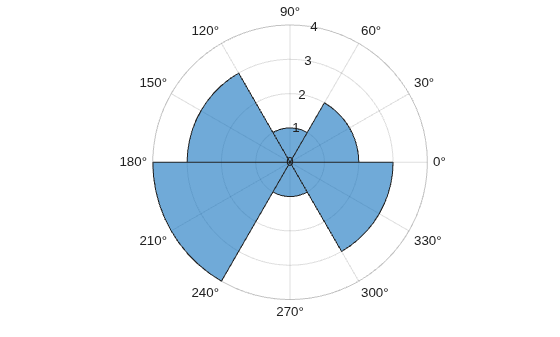

theta = [0.1 1.1 5.4 3.4 2.3 4.5 3.2 3.4 5.6 2.3 2.1 3.5 0.6 6.1]; polarhistogram(theta,6)
Before R2022a, polar axes do not include degree symbols by default. To add them, get the polar axes using pax = gca
. Then modify the tick labels using pax.ThetaTickLabel = string(pax.ThetaTickLabel) + char(176)
.

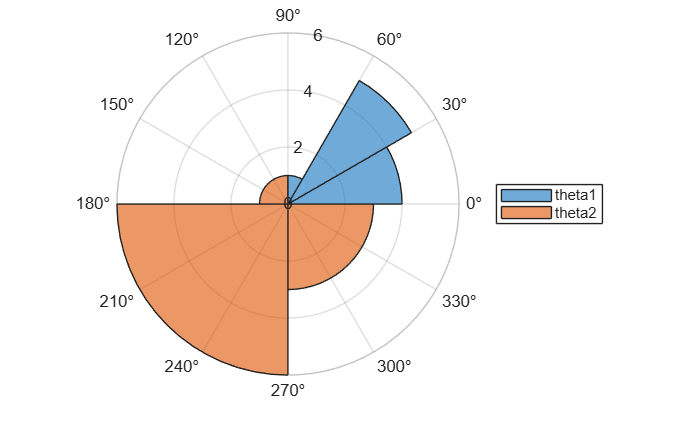

Specify Number of Bins for Polar Histogram Chart
Create a histogram plot from 100,000 values between and , and sort the data into 25 bins.

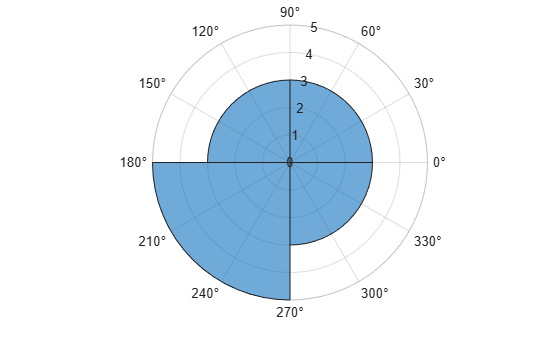

theta = atan2(rand(100000,1)-0.5,2*(rand(100000,1)-0.5)); polarhistogram(theta,25);
Modify Appearance of Histogram Chart
Create a histogram chart in polar coordinates, and then change its appearance. Specify the bar colors by setting the FaceColor
property to a character vector of a color name, such as 'red'
, or an RGB triplet. Specify the transparency by setting the FaceAlpha
property to a value between 0 and 1.

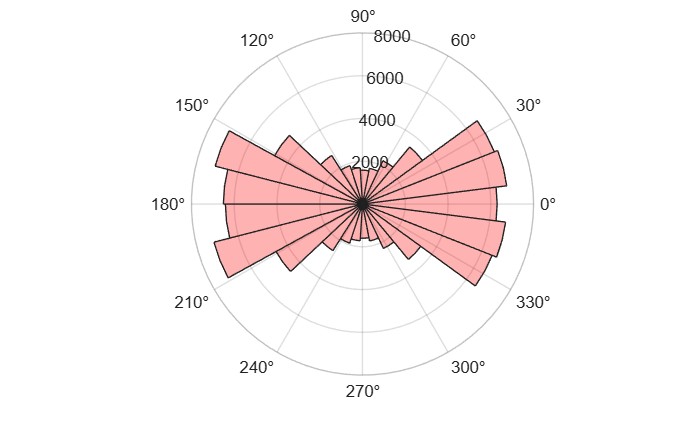

theta = atan2(rand(100000,1)-0.5,2*(rand(100000,1)-0.5)); polarhistogram(theta,25,'FaceColor','red','FaceAlpha',.3);
Modify Appearance of Histogram Chart After Creation
Create a histogram chart in polar coordinates. Assign the histogram object to the variable h
.

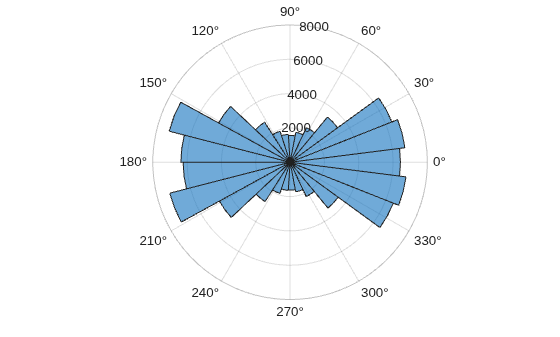

theta = atan2(rand(100000,1)-0.5,2*(rand(100000,1)-0.5)); h = polarhistogram(theta,25)
h = Histogram with properties: Data: [100000x1 double] Values: [6232 7236 4699 2717 1908 1641 1622 1755 2207 3463 6471 6806 6429 6741 6380 3422 2233 1777 1570 1633 1899 2768 4755 7273 6363] NumBins: 25 BinEdges: [-3.1416 -2.8903 -2.6389 -2.3876 -2.1363 -1.8850 -1.6336 -1.3823 -1.1310 -0.8796 -0.6283 -0.3770 -0.1257 0.1257 0.3770 0.6283 0.8796 1.1310 1.3823 1.6336 1.8850 2.1363 2.3876 2.6389 2.8903 3.1416] BinWidth: 0.2513 BinLimits: [-3.1416 3.1416] Normalization: 'count' FaceColor: 'auto' EdgeColor: [0 0 0] Use GET to show all properties
Use h
to access and modify properties of the histogram object after it is created. For example, show just the histogram outline by setting the DisplayStyle
property of the histogram object.

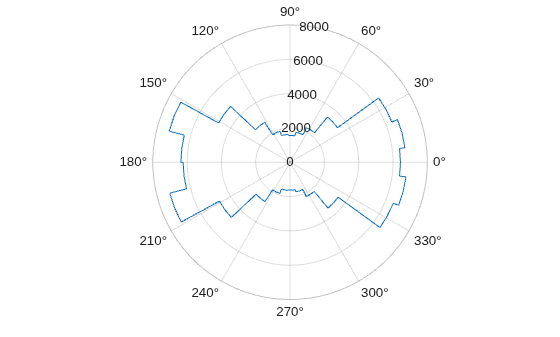

h.DisplayStyle = 'stairs';
Input Arguments
theta
— Data to distribute among bins
vector | matrix
Data to distribute among bins, specified as a vector or a matrix. polarhistogram
creates
one histogram, regardless of whether you specify a vector or a matrix.
Specify the values in radians. To convert degrees to radians, use deg2rad
.
Values that correspond to the same angle direction differ by
exactly 2π, and are sorted into the same bin. polarhistogram
does
not include NaN
, Inf
, and -Inf
values
in any bin.
Example: theta = [0 0.4 0.5 0.7 2.3 3.0 1.7 0.3];
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
nbins
— Number of bins
positive integer
Number of bins, specified as a positive integer. If you do not
specify nbins
, then polarhistogram
automatically
calculates how many bins to use based on the values in theta
.
Example: nbins = 15;
edges
— Bin edges
vector
Bin edges, specified as a vector. The difference between the minimum and maximum edge values must be less than or equal to 2π.
Example: polarhistogram('BinEdges',[0 pi/3 pi 3*pi/2
2*pi],'BinCounts',[5 3 4 6])
counts
— Bin counts
vector
Bin counts, specified as a vector. Use this option if you perform
the bin counts calculation separately and you do not want polarhistogram
to
do any data binning.
Example: polarhistogram('BinEdges',[0 pi/3 pi 3*pi/2
2*pi],'BinCounts',[5 3 4 6])
pax
— PolarAxes
object
PolarAxes
object
PolarAxes
object. If you do not specify the
polar axes, then polarhistogram
uses the current
axes. polarhistogram
does not support plotting
into Cartesian axes.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: polarhistogram(theta,'FaceAlpha',0.3)
creates
a histogram chart with semitransparent bars.
The histogram properties listed here are only a subset. For a complete list, see Histogram Properties.
BinLimits
— Bin limits
two-element vector
Bin limits, specified as a two-element vector of the form [bmin,bmax]
,
where bmin
is less than bmax
.
This option plots a histogram using the input array values that
fall between bmin
and bmax
inclusive.
That is, theta(theta>=bmin & theta<=bmax)
.
Example: polarhistogram(theta,'BinLimits',[-pi/2 pi/2])
plots
a histogram using only the values in theta
that
are between -pi/2
and pi/2
inclusive.
BinWidth
— Width across top of bins
scalar less than 2π
Width across the top of the bins, specified as a scalar less than 2π.
polarhistogram
uses a maximum of 65,536 bins
(or 216).
If the specified bin width requires more bins, then polarhistogram
uses
the maximum number of bins and adjust the bin width accordingly.
Example: polarhistogram(theta,'BinWidth',pi)
uses
bins with a width of π.
Normalization
— Type of normalization
'count'
(default) | 'probability'
| 'countdensity'
| 'pdf'
| 'cumcount'
| 'cdf'
Type of normalization, specified as one of the values in this table.
Value | Description |
---|---|
'count' | Default normalization scheme. The height of each bar
is the number of observations in each bin. The sum of the bar heights
is |
'probability' | The height of each bar is the relative number of observations. Each height is
calculated as (number of observations in bin/total
number of observations). The sum of the bar heights
is |
'countdensity' | The height of each bar is the number of observations in bin/width of bin. |
'pdf' | Probability density function estimate. The height of each bar is (number of
observations in the bin)/(total number of
observations * width of bin). The area of each bar
is the relative number of observations. The sum of
the bar areas is
|
'cumcount' | The height of each bar is the cumulative number of observations
in each bin and all previous bins. The height of the last bar is |
'cdf' | Cumulative distribution function estimate. The height of each bar is equal to the
cumulative relative number of observations in the
bin and all previous bins. The height of the last
bar is |
Example: polarhistogram(theta,'Normalization','pdf')
plots
an estimate of the probability density function for theta
.
DisplayStyle
— Histogram display style
'bar'
(default) | 'stairs'
Histogram display style, specified as one of these values:
'stairs'
— Display the histogram outline only.'bar'
— Show each individual bar with a filled interior.
Example: polarhistogram(theta,'DisplayStyle','stairs')
plots
the outline of the histogram.
FaceAlpha
— Transparency of histogram bars
0.6
(default) | scalar value between 0
and 1
inclusive
Transparency of histogram bars, specified as a scalar value
between 0
and 1
inclusive. polarhistogram
uses
the same transparency for all the bars of the histogram. A value of 1
means
fully opaque and 0
means completely transparent
(invisible).
Example: polarhistogram(theta,'FaceAlpha',.5)
creates
a histogram plot with semi-transparent bars.
FaceColor
— Histogram bar color
'auto'
(default) | RGB triplet | hexadecimal color code | 'r'
| 'g'
| 'b'
| ...
Histogram bar color, specified as 'auto'
, an RGB triplet, a hexadecimal
color code, a color name, or a short name. The default value of
'auto'
lets the histogram choose the
color.
For a custom color, specify an RGB triplet or a hexadecimal color code.
An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range
[0,1]
, for example,[0.4 0.6 0.7]
.A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (
#
) followed by three or six hexadecimal digits, which can range from0
toF
. The values are not case sensitive. Therefore, the color codes"#FF8800"
,"#ff8800"
,"#F80"
, and"#f80"
are equivalent.
Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.
Color Name | Short Name | RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|---|---|
"red" | "r" | [1 0 0] | "#FF0000" | |
"green" | "g" | [0 1 0] | "#00FF00" | |
"blue" | "b" | [0 0 1] | "#0000FF" | |
"cyan"
| "c" | [0 1 1] | "#00FFFF" | |
"magenta" | "m" | [1 0 1] | "#FF00FF" | |
"yellow" | "y" | [1 1 0] | "#FFFF00" | |
"black" | "k" | [0 0 0] | "#000000" | |
"white" | "w" | [1 1 1] | "#FFFFFF" | |
"none" | Not applicable | Not applicable | Not applicable | No color |
Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB® uses in many types of plots.
RGB Triplet | Hexadecimal Color Code | Appearance |
---|---|---|
[0 0.4470 0.7410] | "#0072BD" | |
[0.8500 0.3250 0.0980] | "#D95319" | |
[0.9290 0.6940 0.1250] | "#EDB120" | |
[0.4940 0.1840 0.5560] | "#7E2F8E" | |
[0.4660 0.6740 0.1880] | "#77AC30" | |
[0.3010 0.7450 0.9330] | "#4DBEEE" | |
[0.6350 0.0780 0.1840] | "#A2142F" |
If you specify DisplayStyle
as 'stairs'
,
then polarhistogram
does not use the FaceColor
property.
Example: polarhistogram(theta,'FaceColor','g')
creates
a histogram plot with green bars.
Limitations
polarhistogram
does not support creating histograms of categorical data in polar axes.
Version History
Introduced in R2016b
