fimplicit

Plot implicit function

  • Plot implicit function

Description

example

fimplicit(f) plots the implicit function defined by f(x,y) = 0 over the default interval [-5 5] for x and y.

example

fimplicit(f,interval) specifies the plotting interval for x and y.

fimplicit(ax,___) plots into the axes specified by ax instead of into the current axes. Specify the axes as the first input argument, prior to any of the previous input arguments.

example

fimplicit(___,LineSpec) specifies the line style, marker symbol, and line color. For example, '-r' plots a red line.

example

fimplicit(___,Name,Value) specifies line properties using one or more name-value pair arguments. For example, 'LineWidth',2 specifies a line width of 2 points.

example

fp = fimplicit(___) returns the ImplicitFunctionLine object. Use fp to access and modify properties of the line after it is created. For a list of properties, see ImplicitFunctionLine Properties.

Examples

collapse all

Plot the hyperbola described by the function x2-y2-1=0 over the default interval of [-5 5] for x and y.

fimplicit(@(x,y) x.^2 - y.^2 - 1)

Figure contains an axes object. The axes object contains an object of type implicitfunctionline.

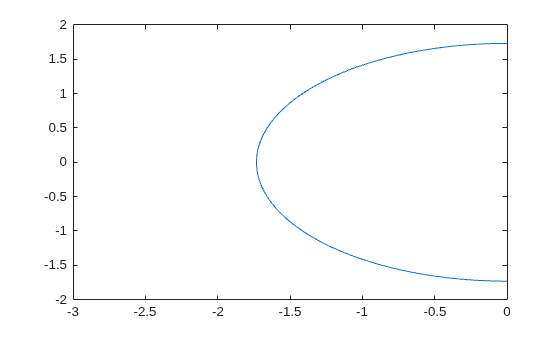

Plot the function x2+y2-3=0 over the intervals [-3 0] for x and [-2 2] for y.

f = @(x,y) x.^2 + y.^2 - 3;
fimplicit(f,[-3 0 -2 2])

Figure contains an axes object. The axes object contains an object of type implicitfunctionline.

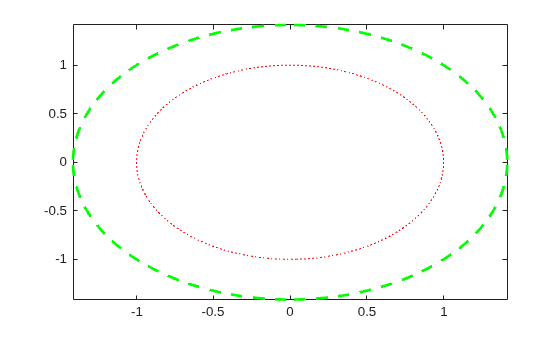

Plot two circles centered at (0,0) with different radius values. For the first circle, use a dotted, red line. For the second circle, use a dashed, green line with a line width of 2 points.

f1 = @(x,y) x.^2 + y.^2 - 1;
fimplicit(f1,':r')

hold on
f2 = @(x,y) x.^2 + y.^2 - 2;
fimplicit(f2,'--g','LineWidth',2)
hold off

Figure contains an axes object. The axes object contains 2 objects of type implicitfunctionline.

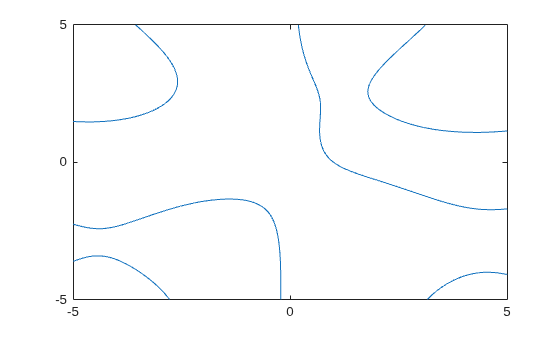

Plot the implicit function ysin(x)+xcos(y)-1=0 and assign the implicit function line object to the variable fp.

fp = fimplicit(@(x,y) y.*sin(x) + x.*cos(y) - 1)

Figure contains an axes object. The axes object contains an object of type implicitfunctionline.

fp =
  ImplicitFunctionLine with properties:

     Function: @(x,y)y.*sin(x)+x.*cos(y)-1
        Color: [0 0.4470 0.7410]
    LineStyle: '-'
    LineWidth: 0.5000

  Use GET to show all properties

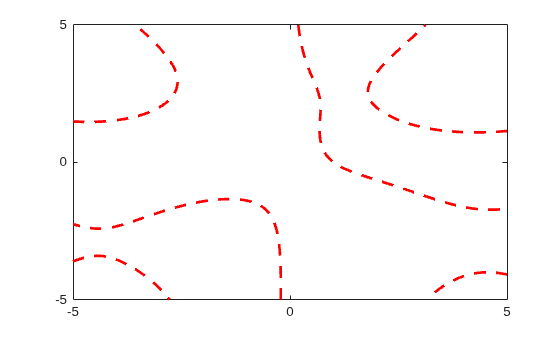

Use fp to access and modify properties of the implicit function line object after it is created. For example, change the color, line style, and line width.

fp.Color = 'r';
fp.LineStyle = '--';
fp.LineWidth = 2;

Figure contains an axes object. The axes object contains an object of type implicitfunctionline.

Input Arguments

collapse all

Implicit function to plot, specified as a function handle to a named or anonymous function.

Specify a function of the form z = f(x,y). The function must accept two matrix input arguments and return a matrix output argument of the same size. Use array operators instead of matrix operators for the best performance. For example, use .* (times) instead of * (mtimes).

Example: fimplicit(@(x,y) x.^2 - y.^2 + 1)

Plotting interval for x and y, specified in one of these forms:

  • Two-element vector of the form [min max] — Use the same plotting interval of [min max] for both x and y.

  • Four-element vector of the form [xmin xmax ymin ymax] — Use different plotting intervals for x and y. Plot over the interval [xmin xmax] for x and [ymin ymax] for y.

Example: fimplicit(f,[-2 3 -5 0])

Line style, marker, and color, specified as a string scalar or character vector containing symbols. The symbols can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line.

Example: "--or" is a red dashed line with circle markers.

Line StyleDescriptionResulting Line
"-"Solid line

Sample of solid line

"--"Dashed line

Sample of dashed line

":"Dotted line

Sample of dotted line

"-."Dash-dotted line

Sample of dash-dotted line, with alternating dashes and dots

MarkerDescriptionResulting Marker
"o"Circle

Sample of circle marker

"+"Plus sign

Sample of plus sign marker

"*"Asterisk

Sample of asterisk marker

"."Point

Sample of point marker

"x"Cross

Sample of cross marker

"_"Horizontal line

Sample of horizontal line marker

"|"Vertical line

Sample of vertical line marker

"square"Square

Sample of square marker

"diamond"Diamond

Sample of diamond marker

"^"Upward-pointing triangle

Sample of upward-pointing triangle marker

"v"Downward-pointing triangle

Sample of downward-pointing triangle marker

">"Right-pointing triangle

Sample of right-pointing triangle marker

"<"Left-pointing triangle

Sample of left-pointing triangle marker

"pentagram"Pentagram

Sample of pentagram marker

"hexagram"Hexagram

Sample of hexagram marker

Color NameShort NameRGB TripletAppearance
"red""r"[1 0 0]

Sample of the color red

"green""g"[0 1 0]

Sample of the color green

"blue""b"[0 0 1]

Sample of the color blue

"cyan" "c"[0 1 1]

Sample of the color cyan

"magenta""m"[1 0 1]

Sample of the color magenta

"yellow""y"[1 1 0]

Sample of the color yellow

"black""k"[0 0 0]

Sample of the color black

"white""w"[1 1 1]

Sample of the color white

Axes object. If you do not specify the axes, then fimplicit uses the current axes.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: fimplicit(f,'MeshDensity',50,'LineWidth',2) specifies the number of evaluation points and the line width.

The ImplicitFunctionLine properties listed here are only a subset. For a complete list, see ImplicitFunctionLine Properties.

Number of evaluation points per direction, specified as a scalar.

Line color, specified as an RGB triplet, a hexadecimal color code, a color name, or a short name.

For a custom color, specify an RGB triplet or a hexadecimal color code.

  • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

  • A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
"red""r"[1 0 0]"#FF0000"

Sample of the color red

"green""g"[0 1 0]"#00FF00"

Sample of the color green

"blue""b"[0 0 1]"#0000FF"

Sample of the color blue

"cyan" "c"[0 1 1]"#00FFFF"

Sample of the color cyan

"magenta""m"[1 0 1]"#FF00FF"

Sample of the color magenta

"yellow""y"[1 1 0]"#FFFF00"

Sample of the color yellow

"black""k"[0 0 0]"#000000"

Sample of the color black

"white""w"[1 1 1]"#FFFFFF"

Sample of the color white

"none"Not applicableNot applicableNot applicableNo color

Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB® uses in many types of plots.

RGB TripletHexadecimal Color CodeAppearance
[0 0.4470 0.7410]"#0072BD"

Sample of RGB triplet [0 0.4470 0.7410], which appears as dark blue

[0.8500 0.3250 0.0980]"#D95319"

Sample of RGB triplet [0.8500 0.3250 0.0980], which appears as dark orange

[0.9290 0.6940 0.1250]"#EDB120"

Sample of RGB triplet [0.9290 0.6940 0.1250], which appears as dark yellow

[0.4940 0.1840 0.5560]"#7E2F8E"

Sample of RGB triplet [0.4940 0.1840 0.5560], which appears as dark purple

[0.4660 0.6740 0.1880]"#77AC30"

Sample of RGB triplet [0.4660 0.6740 0.1880], which appears as medium green

[0.3010 0.7450 0.9330]"#4DBEEE"

Sample of RGB triplet [0.3010 0.7450 0.9330], which appears as light blue

[0.6350 0.0780 0.1840]"#A2142F"

Sample of RGB triplet [0.6350 0.0780 0.1840], which appears as dark red

Example: 'blue'

Example: [0 0 1]

Example: '#0000FF'

Line style, specified as one of the options listed in this table.

Line StyleDescriptionResulting Line
"-"Solid line

Sample of solid line

"--"Dashed line

Sample of dashed line

":"Dotted line

Sample of dotted line

"-."Dash-dotted line

Sample of dash-dotted line, with alternating dashes and dots

"none"No lineNo line

Line width, specified as a positive value in points, where 1 point = 1/72 of an inch. If the line has markers, then the line width also affects the marker edges.

The line width cannot be thinner than the width of a pixel. If you set the line width to a value that is less than the width of a pixel on your system, the line displays as one pixel wide.

Marker symbol, specified as one of the values listed in this table. By default, the object does not display markers. Specifying a marker symbol adds markers at each data point or vertex.

MarkerDescriptionResulting Marker
"o"Circle

Sample of circle marker

"+"Plus sign

Sample of plus sign marker

"*"Asterisk

Sample of asterisk marker

"."Point

Sample of point marker

"x"Cross

Sample of cross marker

"_"Horizontal line

Sample of horizontal line marker

"|"Vertical line

Sample of vertical line marker

"square"Square

Sample of square marker

"diamond"Diamond

Sample of diamond marker

"^"Upward-pointing triangle

Sample of upward-pointing triangle marker

"v"Downward-pointing triangle

Sample of downward-pointing triangle marker

">"Right-pointing triangle

Sample of right-pointing triangle marker

"<"Left-pointing triangle

Sample of left-pointing triangle marker

"pentagram"Pentagram

Sample of pentagram marker

"hexagram"Hexagram

Sample of hexagram marker

"none"No markersNot applicable

Marker size, specified as a positive value in points, where 1 point = 1/72 of an inch.

Marker outline color, specified as "auto", an RGB triplet, a hexadecimal color code, a color name, or a short name. The default value of "auto" uses the same color as the Color property.

For a custom color, specify an RGB triplet or a hexadecimal color code.

  • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

  • A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
"red""r"[1 0 0]"#FF0000"

Sample of the color red

"green""g"[0 1 0]"#00FF00"

Sample of the color green

"blue""b"[0 0 1]"#0000FF"

Sample of the color blue

"cyan" "c"[0 1 1]"#00FFFF"

Sample of the color cyan

"magenta""m"[1 0 1]"#FF00FF"

Sample of the color magenta

"yellow""y"[1 1 0]"#FFFF00"

Sample of the color yellow

"black""k"[0 0 0]"#000000"

Sample of the color black

"white""w"[1 1 1]"#FFFFFF"

Sample of the color white

"none"Not applicableNot applicableNot applicableNo color

Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.

RGB TripletHexadecimal Color CodeAppearance
[0 0.4470 0.7410]"#0072BD"

Sample of RGB triplet [0 0.4470 0.7410], which appears as dark blue

[0.8500 0.3250 0.0980]"#D95319"

Sample of RGB triplet [0.8500 0.3250 0.0980], which appears as dark orange

[0.9290 0.6940 0.1250]"#EDB120"

Sample of RGB triplet [0.9290 0.6940 0.1250], which appears as dark yellow

[0.4940 0.1840 0.5560]"#7E2F8E"

Sample of RGB triplet [0.4940 0.1840 0.5560], which appears as dark purple

[0.4660 0.6740 0.1880]"#77AC30"

Sample of RGB triplet [0.4660 0.6740 0.1880], which appears as medium green

[0.3010 0.7450 0.9330]"#4DBEEE"

Sample of RGB triplet [0.3010 0.7450 0.9330], which appears as light blue

[0.6350 0.0780 0.1840]"#A2142F"

Sample of RGB triplet [0.6350 0.0780 0.1840], which appears as dark red

Marker fill color, specified as 'auto', an RGB triplet, a hexadecimal color code, a color name, or a short name. The 'auto' value uses the same color as the MarkerEdgeColor property.

For a custom color, specify an RGB triplet or a hexadecimal color code.

  • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

  • A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
"red""r"[1 0 0]"#FF0000"

Sample of the color red

"green""g"[0 1 0]"#00FF00"

Sample of the color green

"blue""b"[0 0 1]"#0000FF"

Sample of the color blue

"cyan" "c"[0 1 1]"#00FFFF"

Sample of the color cyan

"magenta""m"[1 0 1]"#FF00FF"

Sample of the color magenta

"yellow""y"[1 1 0]"#FFFF00"

Sample of the color yellow

"black""k"[0 0 0]"#000000"

Sample of the color black

"white""w"[1 1 1]"#FFFFFF"

Sample of the color white

"none"Not applicableNot applicableNot applicableNo color

Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.

RGB TripletHexadecimal Color CodeAppearance
[0 0.4470 0.7410]"#0072BD"

Sample of RGB triplet [0 0.4470 0.7410], which appears as dark blue

[0.8500 0.3250 0.0980]"#D95319"

Sample of RGB triplet [0.8500 0.3250 0.0980], which appears as dark orange

[0.9290 0.6940 0.1250]"#EDB120"

Sample of RGB triplet [0.9290 0.6940 0.1250], which appears as dark yellow

[0.4940 0.1840 0.5560]"#7E2F8E"

Sample of RGB triplet [0.4940 0.1840 0.5560], which appears as dark purple

[0.4660 0.6740 0.1880]"#77AC30"

Sample of RGB triplet [0.4660 0.6740 0.1880], which appears as medium green

[0.3010 0.7450 0.9330]"#4DBEEE"

Sample of RGB triplet [0.3010 0.7450 0.9330], which appears as light blue

[0.6350 0.0780 0.1840]"#A2142F"

Sample of RGB triplet [0.6350 0.0780 0.1840], which appears as dark red

Example: [0.3 0.2 0.1]

Example: 'green'

Example: '#D2F9A7'

Tips

  • Use element-wise operators for the best performance and to avoid a warning message. For example, use x.*y instead of x*y. For more information, see Array vs. Matrix Operations.

  • When you zoom in on the chart, fimplicit recalculates the data, which can reveal hidden details.

Version History

Introduced in R2016b
