Graphical Comparison of Exponential Functions

This example shows an interesting graphical approach for discovering whether eπ is greater than πe.

The question is: which is greater, eπ or πe? The easy way to find out is to type it directly at the MATLAB® command prompt. But another way to analyze the situation is to ask a more general question: what is the shape of the function z(x,y)=xy-yx?

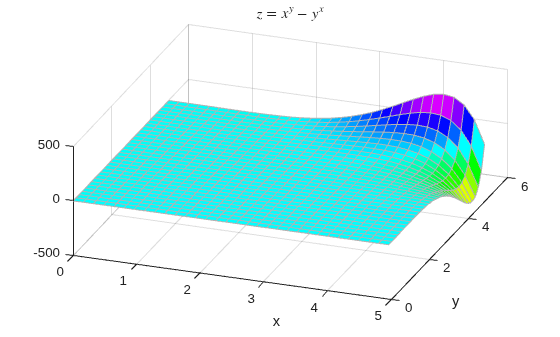

Here is a plot of z.

% Define the mesh
x = 0:0.16:5;
y = 0:0.16:5;
[xx,yy] = meshgrid(x,y);

% The plot
zz = xx.^yy-yy.^xx;
h = surf(x,y,zz);
h.EdgeColor = [0.7 0.7 0.7];
title('$z = x^y-y^x$','Interpreter','latex')
hold on

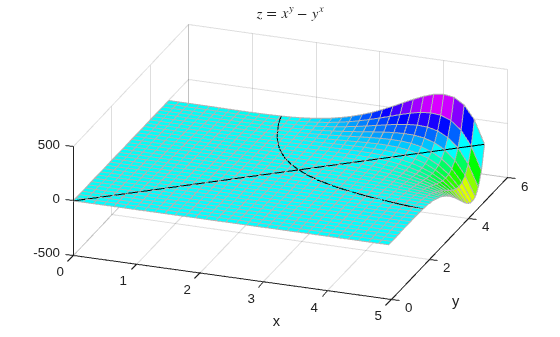

The solution of the equation xy-yx=0 has a very interesting shape, and our original question is not easily solved by inspection. Here is a plot of the xy values that yield z=0.

c = contourc(x,y,zz,[0 0]);
list1Len = c(2,1);
xContour = [c(1,2:1+list1Len) NaN c(1,3+list1Len:size(c,2))];
yContour = [c(2,2:1+list1Len) NaN c(2,3+list1Len:size(c,2))];
% Note that the NAN above prevents the end of the first contour line from being
% connected to the beginning of the second line

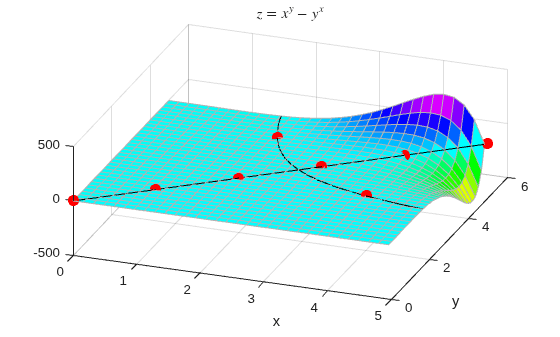

Some combinations of x and y along the black curve are integers. This next plot is of the integer solutions to the equation xy-yx=0. Notice that 24=42 is the only integer solution where xy.

plot([0:5 2 4],[0:5 4 2],'r.','MarkerSize',25);

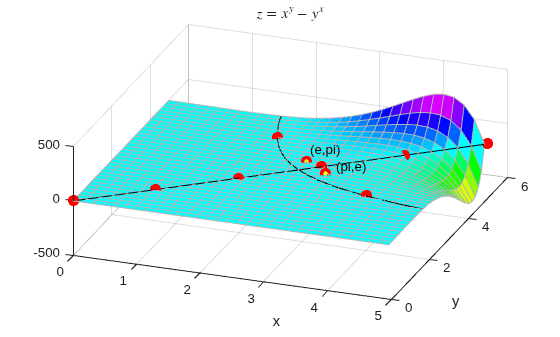

Finally, plot the points (π,e) and (e,π) on the surface. The result shows that eπ is indeed larger than πe (though not by much).

e = exp(1);
plot([e pi],[pi e],'r.','MarkerSize',25);
plot([e pi],[pi e],'y.','MarkerSize',10);
text(e,3.3,'(e,pi)','Color','k', ...
hold off;

Verify the results.

e = exp(1);
ans = 23.1407
ans = 22.4592
