Wrap angle in radians to [−pi pi]



lambdaWrapped = wrapToPi(lambda) wraps angles in lambda, in radians, to the interval [−pi, pi] such that pi maps to pi and −pi maps to −pi. In general, odd, positive multiples of pi map to pi and odd, negative multiples of pi map to −pi.


collapse all

Specify a short list of angles to wrap.

lambda = [-2*pi -pi-0.1 -pi -2.8 3.1 pi pi+1 2*pi];

Wrap the angles to the range [-π, π] radians.

lambdaWrapped = wrapToPi(lambda)
lambdaWrapped = 1×8

         0    3.0416   -3.1416   -2.8000    3.1000    3.1416   -2.1416         0

Specify a second list of angles, and wrap them.

lambda2 = -10:0.1:10;
lambda2Wrapped = wrapToPi(lambda2);

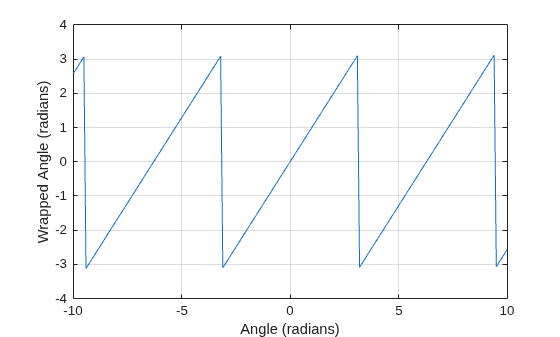

Plot the wrapped angles. The wrapped angles stay in the range [-π, π] radians.

xlabel("Angle (radians)")
ylabel("Wrapped Angle (radians)")
grid on

Figure contains an axes object. The axes object with xlabel Angle (radians), ylabel Wrapped Angle (radians) contains an object of type line.

Input Arguments

collapse all

Angles, specified as a numeric vector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Output Arguments

collapse all

Wrapped angles, specified as a numeric vector with values in the range [−pi, pi].

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2007b
