Create R-Set file from image file
Create R-Set From Large TIFF Image File
Load a TIFF image file into the workspace.
filename = 'mandi.tif';
Create an R-Set file from the image file. The function creates the R-Set in the current working folder.
rsetfile = rsetwrite(filename);

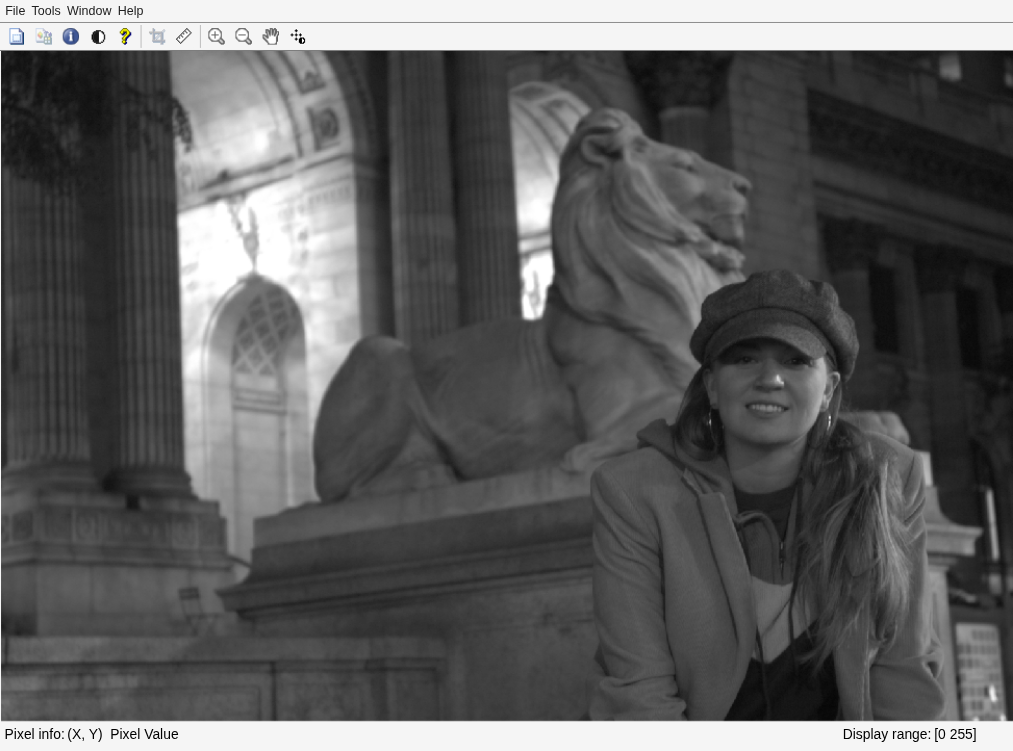

Display the R-Set file by using the Image Viewer function.

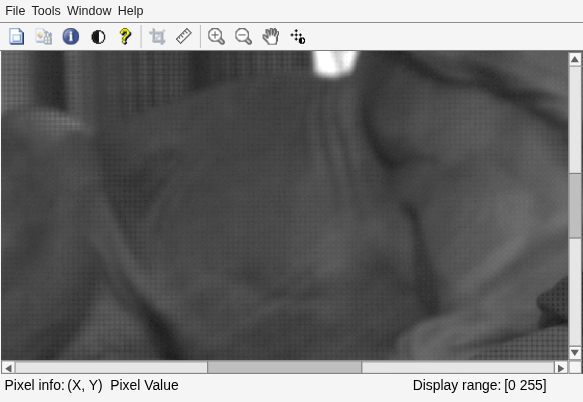

Zoom in on the R-Set by 65% to view the spatial tiles.
Create R-Set from
Load a file containing an
ImageAdapter object into the workspace.
Specify a name for the R-Set file to be created.
rsetfilename = 'MandiRSet';
Create an R-Set file from the
ImageAdapter object. The function creates the R-Set in the current working folder.
rsetfile = rsetwrite(adapter,rsetfilename)
rsetfile = 'MandiRSet'
Display the R-Set file using the Image Viewer function.
Zoom in on the R-Set by 53% to view the spatial tiles.
filename — Name of TIFF or NITF image file
character vector | string scalar
Name of a TIFF or NITF image file, specified as a character vector or string scalar.
adapter — Image adapter object
Image adapter object, specified as an
ImageAdapter object. An
ImageAdapter is a user-defined
object that provides
rsetwrite function with a common API to read a
particular image file format.
rsetfile — Name of R-Set file
Name of the R-Set file, returned as a string scalar. This value specifies the name of the file to which the R-Set is stored.
rsetwritecreates an R-Set by dividing an image into spatial tiles and resampling the image at different resolution levels. The R-Set file contains a compressed copy of the full-resolution image data. You can use the Image Viewer app to open the R-Set file and zoom in to view the tiles at a higher resolution. When you zoom out, the function displays tiles at a lower resolution. In this way, an R-Set file balances clarity of the image and memory usage for optimal performance.
When creating an R-Set, a progress bar shows the status of the completion. If you cancel the creation process before it is complete, the function does not create an R-Set and returns an empty
rsetwritesupports NITF image files that are uncompressed and Version 2.0 or higher. This function does not support NITF files with more than three data bands or with floating-point data. Images with more than one data band are accepted if they contain unsigned integer data.
You can create an R-Set from an image whose dimensions are smaller than the size of a single R-Set tile. However, the resulting R-Set file might be larger and take longer to load than the original file. The current size of a tile in an R-Set is 512-by-512 pixels.
Introduced in R2009a
