# normxcorr2

Normalized 2-D cross-correlation

## Syntax

C = normxcorr2(template,A)

## Description

example

C = normxcorr2(template,A) computes the normalized cross-correlation of the matrices template and A. The resulting matrix C contains the correlation coefficients.

You optionally can compute the normalized cross-correlation using a GPU (requires Parallel Computing Toolbox™). For more information, see Image Processing on a GPU.

## Examples

collapse all

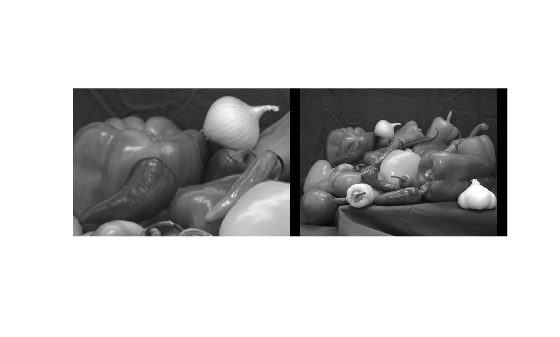

Read two images into the workspace, and convert them to grayscale for use with normxcorr2. Display the images side-by-side.

imshowpair(peppers,onion,'montage')

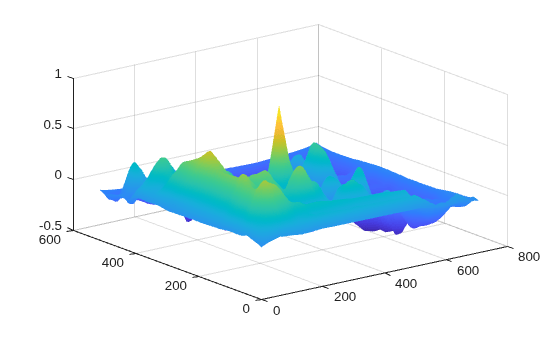

Perform cross-correlation, and display the result as a surface.

c = normxcorr2(onion,peppers);

Find the peak in cross-correlation.

[ypeak, xpeak] = find(c==max(c(:)));

yoffSet = ypeak-size(onion,1);
xoffSet = xpeak-size(onion,2);

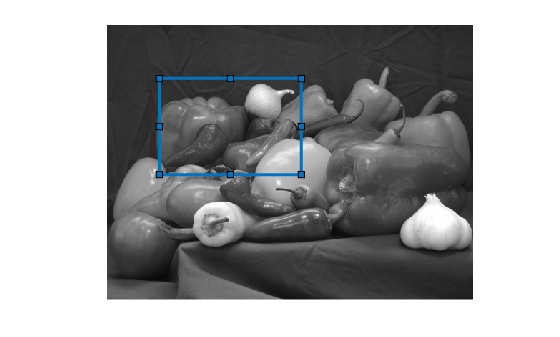

Display the matched area.

figure
imshow(peppers);
imrect(gca, [xoffSet+1, yoffSet+1, size(onion,2), size(onion,1)]);

Convert the color images to 2-D grayscale. The rgb2gray function accepts gpuArrays.

onion   = rgb2gray(onion);
peppers = rgb2gray(peppers);

Perform cross-correlation, and display the result as a surface.

c = normxcorr2(onion,peppers);

Find the peak in cross-correlation.

[ypeak, xpeak] = find(c==max(c(:)));

yoffSet = ypeak-size(onion,1);
xoffSet = xpeak-size(onion,2);

Move the data back to the CPU for display.

yoffSet = gather(ypeak-size(onion,1));
xoffSet = gather(xpeak-size(onion,2));

Display the matched area.

figure
imshow(peppers);
imrect(gca, [xoffSet+1, yoffSet+1, size(onion,2), size(onion,1)]);

## Input Arguments

collapse all

Input template, specified as a numeric matrix. The values of template cannot all be the same.

To perform the computation using a GPU, specify template as a gpuArray that contains a numeric matrix.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Input image, specified as a numeric image. A must be larger than the matrix template for the normalization to be meaningful.

Normalized cross-correlation is an undefined operation in regions where A has zero variance over the full extent of the template. In these regions, normxcorr2 assigns correlation coefficients of zero to the output C.

To perform the computation using a GPU, specify A as a gpuArray that contains a numeric matrix.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

## Output Arguments

collapse all

Correlation coefficients, returned as a numeric matrix with values in the range [-1, 1].

If the correlation coefficients are computed using a GPU, then C is returned as a gpuArray containing a numeric matrix with values in the range [-1, 1].

Data Types: double

## Algorithms

normxcorr2 uses the following general procedure [1], [2]:

1. Calculate cross-correlation in the spatial or the frequency domain, depending on size of images.

2. Calculate local sums by precomputing running sums [1].

3. Use local sums to normalize the cross-correlation to get correlation coefficients.

The implementation closely follows the formula from [1]:

$\gamma \left(u,v\right)=\frac{{\sum }_{x,y}\left[f\left(x,y\right)-{\overline{f}}_{u,v}\right]\left[t\left(x-u,y-v\right)-\overline{t}\right]}{{\left\{{{\sum }_{x,y}\left[f\left(x,y\right)-{\overline{f}}_{u,v}\right]}^{2}{\sum }_{x,y}{\left[t\left(x-u,y-v\right)-\overline{t}\right]}^{2}\right\}}^{0.5}}$

where

• $f$ is the image.

• $\overline{t}$ is the mean of the template

• ${\overline{f}}_{u,v}$ is the mean of $f\left(x,y\right)$ in the region under the template.

## References

[2] Haralick, Robert M., and Linda G. Shapiro, Computer and Robot Vision, Volume II, Addison-Wesley, 1992, pp. 316-317.
