Split multichannel image into its individual channels


[c1,c2,c3,...,ck] = imsplit(I)



[c1,c2,c3,...,ck] = imsplit(I) returns a set of k images representing the individual channels in the k-channel image I.


collapse all

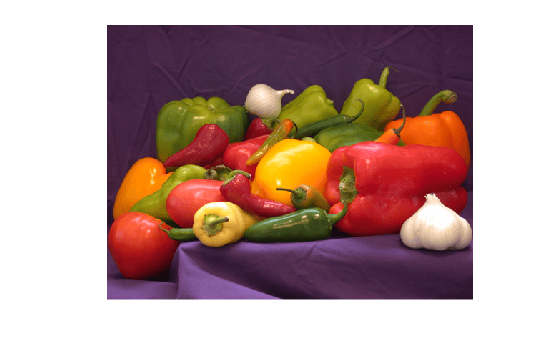

Read an RGB image into the workspace and display the image.

I = imread('peppers.png');

Split the image into its component red, green, and blue channels.

[r,g,b] = imsplit(I);

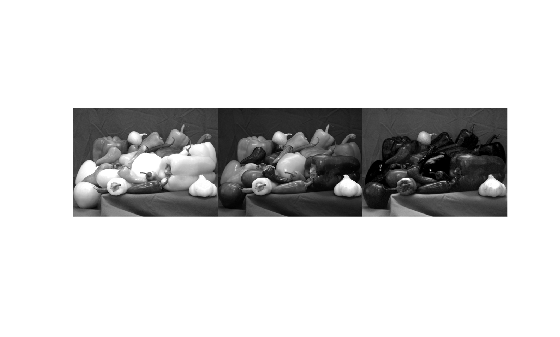

Display the three color channels as a montage. Red peppers have a signal predominantly in the red channel. Yellow and green peppers have a signal in both the red and green channels. White objects, such as the garlic in the foreground, have a strong signal in all three channels.

montage({r,g,b},'Size',[1 3])

Read an RGB image into the workspace and display the image.

rgbImage = imread('peppers.png');

Convert the RGB image to the HSV colorspace by using the rgb2hsv function.

hsvImage = rgb2hsv(rgbImage);

Split the HSV image into its compotent hue, saturation, and value channels.

[h,s,v] = imsplit(hsvImage);

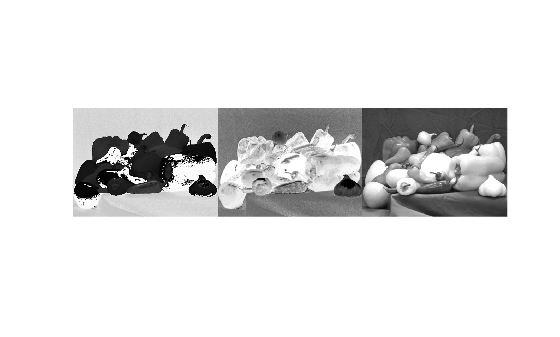

Display the three channels as a montage.

montage({h,s,v},'Size',[1 3])

Input Arguments

collapse all

Input image, specified as an m-by-n-by-k numeric array.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Output Arguments

collapse all

Output images, returned as k individual numeric matrices, where k is the number of channels in the input image. The output images are the same class as the input image.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Introduced in R2018b
