measureIlluminant

Measure scene illuminant using test chart

Syntax

illuminant = measureIlluminant(chart)

Description

illuminant = measureIlluminant(chart) measures the scene illuminant using the gray regions of interest (ROIs) of an Imatest^® eSFR chart [1] or a Calibrite ColorChecker^® Classic chart [2].

Examples

Measure Illuminant of eSFR Chart

This example shows how to measure the illuminant of an eSFR chart using the gray patch ROIs. The example then white balances the image of the eSFR chart.

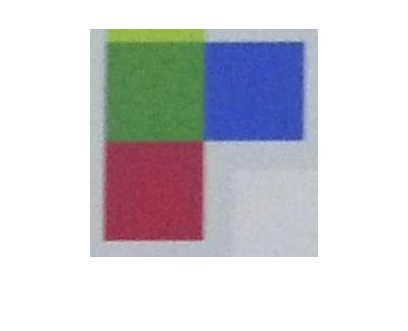

Read an image of an eSFR chart into the workspace.

I = imread("eSFRTestImage.jpg");

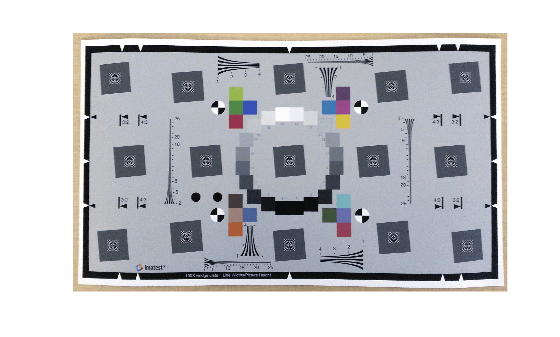

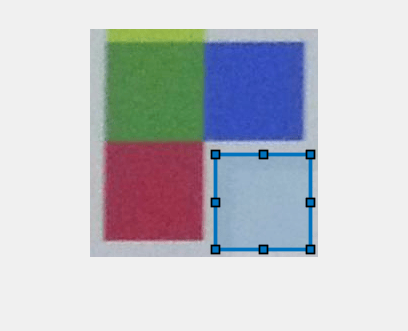

Create an esfrChart object. Display the chart, highlighting the 20 gray patches.

chart = esfrChart(I);
displayChart(chart,displayEdgeROIs=false, ...
    displayColorROIs=false,displayRegistrationPoints=false)

Estimate the illuminant using the gray patch ROIs. The illuminant has a stronger blue component than the red and green. This result is consistent with the image of the test chart, which has a blue tint.

illum = measureIlluminant(chart)

illum = 1×3

  110.9147  116.0008  123.2339

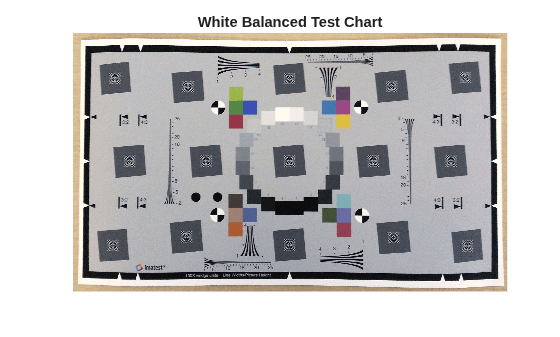

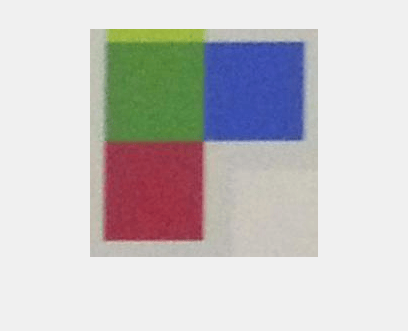

White balance the chart image and display the result. The white balanced image has less of a blue tint, especially in the middle gray patches and over the background of the image.

J = chromadapt(I,illum);
imshow(J)
title("White Balanced Test Chart")

You can use the estimated illuminant to white balance other images acquired under similar lighting conditions.

Input Arguments

chart — Test chart

esfrChart object | colorChecker object

Test chart, specified as an esfrChart object or a colorChecker object.

Output Arguments

illuminant — Scene illuminant

3-element row vector

Scene illuminant, returned as a 3-element row vector.

Data Types: double

Tips

• To white-balance an image, use the chromadapt function.

• It is recommended to measure the scene illuminant using linear image data. If you need to linearize your image data, then you can use the rgb2lin function.

References

[1] Imatest. "Esfr". https://www.imatest.com/mathworks/esfr/.

[2] Calibrite. "ColorChecker Classic". https://calibrite.com/us/product/colorchecker-classic/.

Version History

Introduced in R2017b

R2021a: Measure scene illuminant using X-Rite ColorChecker test chart

You can now measure the scene illuminant of an image of an X-Rite^® ColorChecker test chart by using the measureIlluminant function.
