Transform Between Time-Domain and Frequency-Domain Data

System Identification Toolbox™ provides tools for analyzing data and for estimating and evaluating models in both the time and the frequency domains. To use tools and methods that are not in the same domain as your measured data, you can transform your data between the time domain and the frequency domain.

The iddata object stores time-domain or frequency-domain data.

  • Time-domain data consists of one or more input variables u(t) and one or more output variables y(t), sampled as a function of time.

  • Frequency-domain data consists of either transformed input and output time-domain signals or system frequency response sampled as a function of the independent variable frequency.

For detailed information about representing time-domain and frequency-domain data in MATLAB®, see Representing Data in MATLAB Workspace.

You can transform your data from one domain to the other. The table summarizes the commands for transforming data between the time and frequency domains. For more command information, see the corresponding command reference pages.

CommandDescriptionSyntax Example

Transform time-domain data to the frequency domain.

You can specify N, the number of frequency values.

To transform time-domain iddata object t_data to frequency-domain iddata object f_data with N frequency points, use:

f_data =
ifftTransform frequency-domain data to the time domain. Frequencies are linear and equally spaced.

To transform frequency-domainiddata object f_data to time-domain iddata object t_data, use:

t_data =

Converting iddata data into the form of an idfrd frequency response is a type of estimation. If you want to estimate the frequency response using an iddata object, see Transforming Between Frequency-Domain and Frequency-Response Data.

Transform Data Between Time and Frequency Domains

Transform data from the time domain to the frequency domain and back to the time domain, and compare performance for models estimated from the original and transformed data.

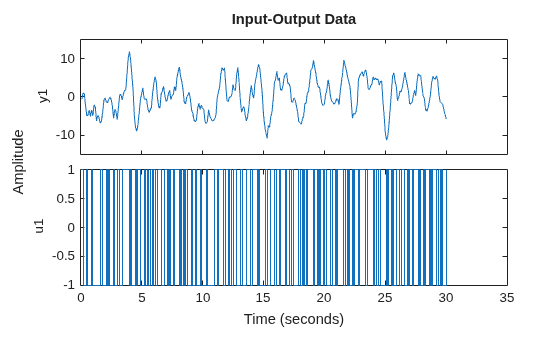

Load and plot the time-domain data z1, which contains 300 samples.

load iddata1 z1

Find the sample time Ts of z1.

Ts = z1.Ts
Ts = 0.1000

The sample time is 0.1 s.

Transform z1 into the frequency domain.

z1f = fft(z1)
z1f =

Frequency domain data set with responses at 151 frequencies.
Frequency range: 0 to 31.416 rad/seconds
Sample time: 0.1 seconds
Outputs      Unit (if specified)
Inputs       Unit (if specified)

The frequency range extends to 31.416 rad/s, which is equal to the Nyquist frequency of pi/Ts.

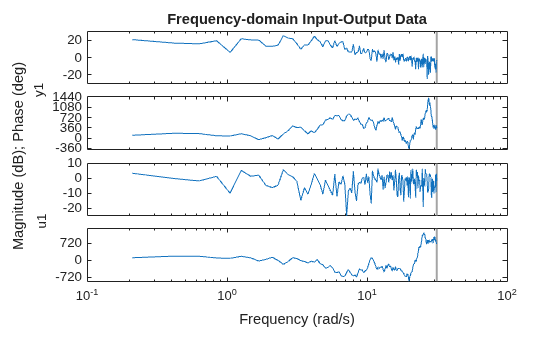

Plot the frequency-domain data.

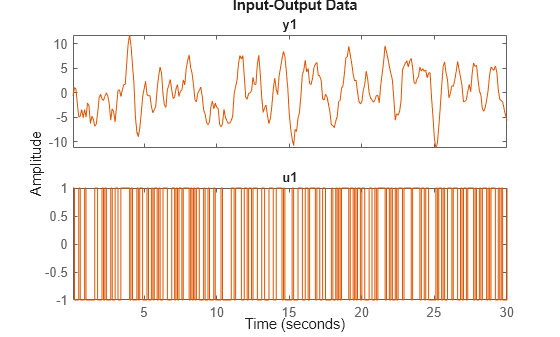

Transform z1f back to the time domain and plot the two time-domain signals together..

z1t = ifft(z1f)
z1t =

Time domain data set with 300 samples.
Sample time: 0.1 seconds
Outputs      Unit (if specified)
Inputs       Unit (if specified)

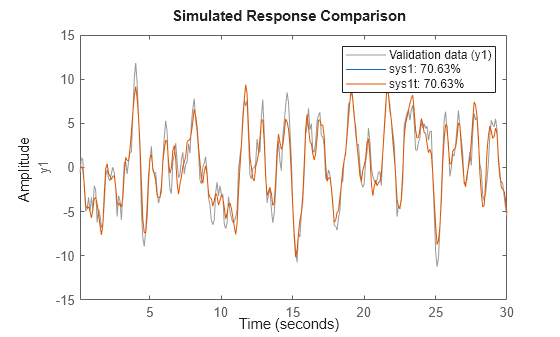

The signals line up precisely.

Estimate second-order state-space models for z1 and z1t.

sys1 = ssest(z1,2);
sys1t = ssest(z1t,2);

Estimate a state-space model for z1f.

sys1f = ssest(z1f,2);

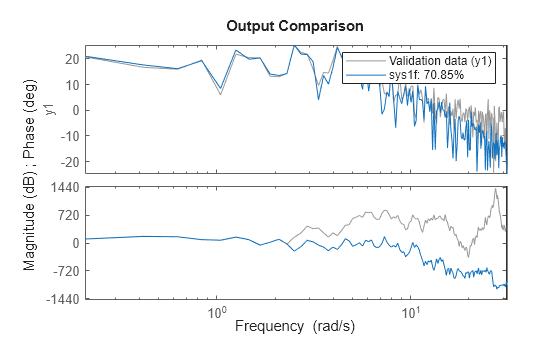

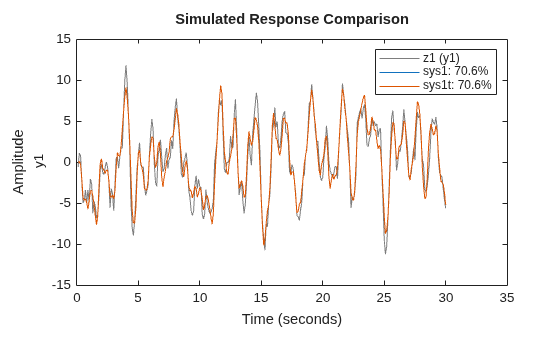

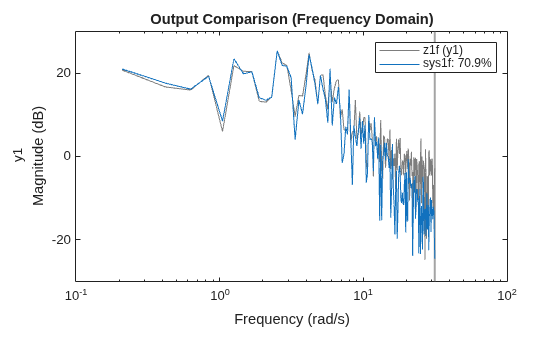

The fit percentages for the time-domain and frequency-domain models are similar.
