Generalized bell-shaped membership function


This function computes fuzzy membership values using a generalized bell-shaped membership function. You can also compute this membership function using a fismf object. For more information, see fismf Object.


y = gbellmf(x,params) returns fuzzy membership values computed using the following generalized bell-shaped membership function:


To configure the membership function, specify parameters, a, b, and c using params.

Membership values are computed for each input value in x.


collapse all

Specify input values across the universe of discourse.

x = 0:0.1:10;

Evaluate membership function for the input values.

y = gbellmf(x,[2 4 6]);

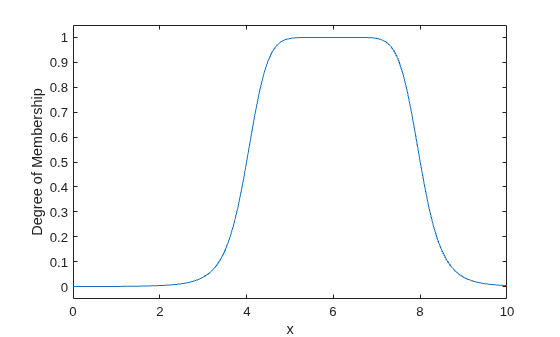

Plot the membership function.

title('gbellmf, P=[2 4 6]')
ylabel('Degree of Membership')
ylim([-0.05 1.05])

Input Arguments

collapse all

Input values for which to compute membership values, specified as a scalar or vector.

Membership function parameters, specified as the vector [a b c].


  • a defines the width of the membership function, where a larger value creates a wider membership function.

  • b defines the shape of the curve on either side of the central plateau, where a larger value creates a more steep transition.

  • c defines the center of the membership function.

Output Arguments

collapse all

Membership value returned as a scalar or a vector. The dimensions of y match the dimensions of x. Each element of y is the membership value computed for the corresponding element of x.

Alternative Functionality

fismf Object

You can create and evaluate a fismf object that implements the gbellmf membership function.

mf = fismf("gbellmf",P);
Y = evalmf(mf,X);

Here, X, P, and Y correspond to the x, params, and y arguments of gbellmf, respectively.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced before R2006a
