## Customize FIS Tuning Process

You can customize your FIS tuning process by either:

For more information on tuning a FIS, see Tuning Fuzzy Inference Systems.

### Specify Custom Cost Function in Fuzzy Logic Designer

To specify a custom cost function when tuning a FIS using Fuzzy Logic Designer, on the Tuning tab, select Custom Cost Function.

Then, in the Custom Cost Function drop-down list, select Add a Custom Cost Fcn.

For this example, consider the following cost function, myCostFcn, which simulates a Simulink model using the specified FIS.

• The first input of the cost function is the FIS object, which is a required input.

• The other inputs are the name of the Simulink model and the FIS variable name in the MATLAB workspace. Specifying additional inputs is optional.

• The cost function updates the FIS variable in the workspace and simulates the model. It then extracts the reference and actual outputs from the model and computes the root mean square error.

• The output of the cost function is the scalar cost value, which in this case is the root mean square error.

function cost = myCostFcn(fis,model,fisVarName)
% Evaluate model, generate output, and find the cost.

% Update workspace variable for the controller.
assignin('base',fisVarName,fis)

% Get simulation output.
out = sim(model);

% Get output and reference values from simulation output.
outVal = out.yout.signals(1).values;
refVal = out.yout.signals(2).values;
tout = out.yout.time;

% Calculate error from the nominal value.
err = outVal - refVal;

% Calculate cost as the root mean square of the error.
cost = sqrt(mean(err.^2));

end

In the Add cost function dialog box, in the Function field, enter the name of your custom cost function. When you do so, the Required Inputs table shows the FIS input argument and the Additional Inputs table shows the other inputs.

Specify values for the additional inputs by selecting previously defined variables from the MATLAB workspace. For this example:

• input2 corresponds to the Simulink model name. Select the modelName variable.

• input3 corresponds to the FIS name in model workspace. Select the fisName variable.

The values of these variables are saved in the app with the cost function. Therefore, their values do not change when the variable in the MATLAB workspace changes. For this example, if the model name or FIS name change, you must add a new custom cost function in the app.

The dialog box shows a preview of the cost function signature. To add this cost function to the app, click .

The app imports and selects the custom cost function.

### Tune FIS Using Custom Cost Function

You can use a custom cost function to combine the outputs of the component FISs of a FIS tree using mathematical operations.

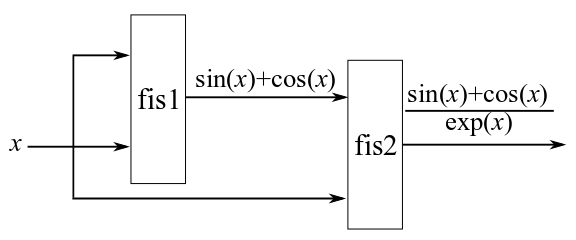

As an example, consider the FIS tree from Tune Fuzzy Trees.

Suppose you want to modify the FIS tree as shown in the following diagram, combining the FIS outputs using known mathematical operations from the training data.

Create the FIS tree, which contains three FIS objects. The outputs of the FIS tree are the outputs of the individual FIS objects.

fis1 = sugfis('Name','fis1');

fis2 = sugfis('Name','fis2');

fis3 = sugfis('Name','fis3');

con = ["fis1/input1" "fis2/input1";"fis2/input1" "fis3/input1"];

fisT = fistree([fis1 fis2 fis3],con);

Generate training data.

x = (0:0.1:10)';
y1 = sin(x)+cos(x);
y2 = y1./exp(x);
y = [y1;y2];

To implement the addition and multiplication operations, use a cost function. For this example, use the custom function customcostfcn, included at the end of the example. Learn a rule base using this cost function.

options = tunefisOptions('Method',"particleswarm",'OptimizationType',"learning");
options.MethodOptions.MaxIterations = 5;
rng('default')
fisTout1 = tunefis(fisT,[],@(fis)customcostfcn(fis,x,y),options);
Best            Mean     Stall
Iteration     f-count            f(x)            f(x)    Iterations
0             100           0.746            1.31        0
1             200          0.5089           1.249        0
2             300          0.5089           1.086        1
3             400          0.5089           1.112        2
4             500          0.5089           1.106        3
5             600          0.4999           1.051        0
Optimization ended: number of iterations exceeded OPTIONS.MaxIterations.

Next, tune all the parameters of the FIS tree.

options.Method = 'patternsearch';
options.MethodOptions.MaxIterations = 25;
[in,out,rule] = getTunableSettings(fisTout1);
rng('default')
fisTout2 = tunefis(fisTout1,[in;out;rule],@(fis)customcostfcn(fis,x,y),options);
Iter     Func-count       f(x)      MeshSize     Method
0           1       0.499882             1
1          17       0.499882             2     Successful Poll
2          21       0.499882             1     Refine Mesh
3          64       0.499882           0.5     Refine Mesh
4         128       0.499882          0.25     Refine Mesh
5         143       0.499309           0.5     Successful Poll
6         206       0.499309          0.25     Refine Mesh
7         216       0.497834           0.5     Successful Poll
8         237        0.49493             1     Successful Poll
9         279        0.49493           0.5     Refine Mesh
10         341        0.49493          0.25     Refine Mesh
11         405        0.49493         0.125     Refine Mesh
12         463       0.490647          0.25     Successful Poll
13         527       0.490647         0.125     Refine Mesh
14         567       0.490257          0.25     Successful Poll
15         631       0.490257         0.125     Refine Mesh
16         673       0.486303          0.25     Successful Poll
17         737       0.486303         0.125     Refine Mesh
18         748       0.485744          0.25     Successful Poll
19         812       0.485744         0.125     Refine Mesh
20         884       0.485744        0.0625     Refine Mesh
21         921       0.484482         0.125     Successful Poll
22         932       0.484045          0.25     Successful Poll
23         996       0.484045         0.125     Refine Mesh
24        1067       0.484045        0.0625     Refine Mesh
25        1080       0.483977         0.125     Successful Poll
26        1151       0.483977        0.0625     Refine Mesh
Maximum number of iterations exceeded: increase options.MaxIterations.

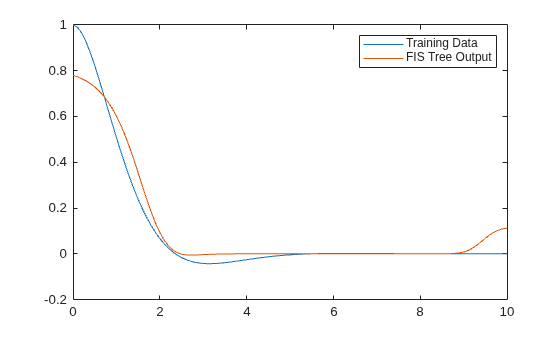

You can add more input/output MFs and specify additional FIS tree outputs to improve the tuning performance. Using additional MF parameters and more training data for additional FIS tree outputs can further fine-tune the outputs of fis1, fis2, and fis3.

Custom Cost Function

function cost = customcostfcn(fis,x,y)

tY = evalfis(fis,x);
sincosx = tY(:,1)+tY(:,2);
sincosexpx = sincosx.*tY(:,3);
actY = [sincosx;sincosexpx];
d = y(:)-actY;
cost = sqrt(mean(d.*d));

end

### Tune FIS Using Custom Optimization Method

You can also implement your own FIS parameter optimization method using getTunableSettings, getTunableValues, and setTunableValues. This example uses these functions to tune a rule base of a fuzzy system.

Create a FIS to approximate $\mathrm{sin}\left(\theta \right)$, where $\theta$ varies from 0 to $2\pi$.

fisin = mamfis;

Add an input with a range of [0, $2\pi$] and having five Gaussian MFs. Also, add an output with a range of [–1, 1] and having five Gaussian MFs.

fisin = addRule(fisin,[1 1 1 1;2 2 1 1;3 3 1 1;4 4 1 1;5 5 1 1]);
fisin.Rules
ans =
1x5 fisrule array with properties:

Description
Antecedent
Consequent
Weight
Connection

Details:
Description
________________________________

1    "input1==mf1 => output1=mf1 (1)"
2    "input1==mf2 => output1=mf2 (1)"
3    "input1==mf3 => output1=mf3 (1)"
4    "input1==mf4 => output1=mf4 (1)"
5    "input1==mf5 => output1=mf5 (1)"

For a faster FIS update, set DisableStructuralChecks to true.

fisin.DisableStructuralChecks = true;

Obtain the rule parameter settings.

[~,~,rule] = getTunableSettings(fisin);

Make the rule antecedents nontunable. In the rule consequents, do not allow NOT logic (negative MF indices) or empty variables (zero MF indices).

for i = 1:numel(rule)
rule(i).Antecedent.Free = false;
rule(i).Consequent.AllowNot = false;
rule(i).Consequent.AllowEmpty = false;
end

Generate data for tuning.

x = (0:0.1:2*pi)';
y = sin(x);

To tune the rule parameters, use the custom function customtunefis included at the end of this example. Set the number of iterations to 2, and do not allow invalid parameter values when updating the FIS using setTunableValues.

numite = 2;
ignoreinvp = false;
fisout = customtunefis(fisin,rule,x,y,numite,ignoreinvp);
Initial cost = 1.170519
Iteration 1: Cost = 0.241121
Iteration 2: Cost = 0.241121

Display the tuned rules.

fisout.Rules
ans =
1x5 fisrule array with properties:

Description
Antecedent
Consequent
Weight
Connection

Details:
Description
________________________________

1    "input1==mf1 => output1=mf4 (1)"
2    "input1==mf2 => output1=mf5 (1)"
3    "input1==mf3 => output1=mf3 (1)"
4    "input1==mf4 => output1=mf1 (1)"
5    "input1==mf5 => output1=mf2 (1)"

Allow NOT logic in the rules and optimize the FIS again.

for i = 1:numel(rule)
rule(i).Consequent.AllowNot = true;
end
fisout = customtunefis(fisin,rule,x,y,numite,ignoreinvp);
Initial cost = 1.170519
Iteration 1: Cost = 0.357052
Iteration 2: Cost = 0.241121
fisout.Rules
ans =
1x5 fisrule array with properties:

Description
Antecedent
Consequent
Weight
Connection

Details:
Description
________________________________

1    "input1==mf1 => output1=mf4 (1)"
2    "input1==mf2 => output1=mf5 (1)"
3    "input1==mf3 => output1=mf3 (1)"
4    "input1==mf4 => output1=mf1 (1)"
5    "input1==mf5 => output1=mf2 (1)"

Using NOT logic creates more combinations of rule parameters, resulting in more iterations to tune a FIS.

Next, reset AllowNot to false and set AllowEmpty to true. In other words, allow the absence of variables (zero output MF indices) in the consequents. Tune the FIS with the updated rule parameter settings.

for i = 1:numel(rule)
rule(i).Consequent.AllowNot = false;
rule(i).Consequent.AllowEmpty = true;
end

try
fisout = customtunefis(fisin,rule,x,y,numite,ignoreinvp);
catch me
disp("Error: "+me.message)
end
Initial cost = 1.170519
Error: Rule consequent must have at least one nonzero membership function index.

The tuning process fails since the FIS contains only one output, which must be nonzero (nonempty) in the rule consequent. To ignore invalid parameter values, specify IgnoreInvalidParameters with setTunableValues.

Set ignoreinvp to true, which specifies the IgnoreInvalidParameters value in the call to setTunableValues used in customtunefis.

ignoreinvp = true;
fisout = customtunefis(fisin,rule,x,y,numite,ignoreinvp);
Initial cost = 1.170519
Iteration 1: Cost = 0.241121
Iteration 2: Cost = 0.241121
fisout.Rules
ans =
1x5 fisrule array with properties:

Description
Antecedent
Consequent
Weight
Connection

Details:
Description
________________________________

1    "input1==mf1 => output1=mf4 (1)"
2    "input1==mf2 => output1=mf5 (1)"
3    "input1==mf3 => output1=mf3 (1)"
4    "input1==mf4 => output1=mf1 (1)"
5    "input1==mf5 => output1=mf2 (1)"

In this case, the tuning process bypasses the invalid values and uses only valid parameter values for optimization.

By default, tunefis ignores invalid values when updating fuzzy system parameters. You can change this behavior by setting tunefisOptions.IgnoreInvalidParameters to false.

Custom Functions

function fis = customtunefis(fis,rule,x,y,n,ignore)

% Show the initial cost.
cost = findcost(fis,x,y);
fprintf('Initial cost = %f\n',cost);

% Optimize the rule parameters.
numMFs = numel(fis.Outputs.MembershipFunctions);
for ite = 1:n
for i = 1:numel(rule)
% Get the consequent value.
pval = getTunableValues(fis,rule(i));
% Loop through the output MF indices to minimize the cost.
% Use the output indices according to AllowNot and AllowEmpty.
allowNot = rule(i).Consequent.AllowNot;
allowEmpty = rule(i).Consequent.AllowEmpty;
if allowNot && allowEmpty
mfID = -numMFs:numMFs;
elseif allowNot && ~allowEmpty
mfID = [-numMFs:-1 1:numMFs];
elseif ~allowNot && allowEmpty
mfID = 0:numMFs;
else
mfID = 1:numMFs;
end
cost = 1000;
minCostFIS = fis;
for j = 1:length(mfID)
% Update the consequent value.
pval(1) = mfID(j);
% Set the consequent value in the FIS.
fis = setTunableValues(fis,rule(i),pval,'IgnoreInvalidParameters',ignore);
% Evaluate cost.
rmse = findcost(fis,x,y);
% Update the FIS with the minimum cost.
if rmse<cost
cost = rmse;
minCostFIS = fis;
end
end
fis = minCostFIS;
end
fprintf('Iteration %d: Cost = %f\n',ite,cost);
end

end
function cost = findcost(fis,x,y)

actY = evalfis(fis,x);
d = y - actY;
cost = sqrt(mean(d.*d));

end
