# fillmissing

Replace missing values for credit scorecard predictors

## Syntax

``sc = fillmissing(sc,PredictorNames,Statistics)``
``sc = fillmissing(___,ConstantValue)``

## Description

example

````sc = fillmissing(sc,PredictorNames,Statistics)` replaces missing values of the predictor `PredictorNames` with values defined by `Statistics` and returns an updated credit scorecard object (`sc`). Standard missing data is defined as follows: `NaN` for numeric arrays`<undefined>` for categorical arrays NoteIf you run `fillmissing` after binning a predictor, the existing cutpoints and bin edges are preserved and the "Good" and "Bad" counts from the `<missing>` bin are added to the corresponding bin. ```

example

````sc = fillmissing(___,ConstantValue)` uses arguments from the previous syntax and a value for a `ConstantValue` to replace missing values.```

## Examples

collapse all

This example shows how to use `fillmissing` to replace missing values in the `CustAge` and `ResStatus` predictors with user-defined values. For additional information on alternative approaches for "treating" missing data, see Credit Scorecard Modeling with Missing Values.

Load the credit scorecard data and use `dataMissing` for the training data.

```load CreditCardData.mat disp(head(dataMissing));```
``` CustID CustAge TmAtAddress ResStatus EmpStatus CustIncome TmWBank OtherCC AMBalance UtilRate status ______ _______ ___________ ___________ _________ __________ _______ _______ _________ ________ ______ 1 53 62 <undefined> Unknown 50000 55 Yes 1055.9 0.22 0 2 61 22 Home Owner Employed 52000 25 Yes 1161.6 0.24 0 3 47 30 Tenant Employed 37000 61 No 877.23 0.29 0 4 NaN 75 Home Owner Employed 53000 20 Yes 157.37 0.08 0 5 68 56 Home Owner Employed 53000 14 Yes 561.84 0.11 0 6 65 13 Home Owner Employed 48000 59 Yes 968.18 0.15 0 7 34 32 Home Owner Unknown 32000 26 Yes 717.82 0.02 1 8 50 57 Other Employed 51000 33 No 3041.2 0.13 0 ```

Create a `creditscorecard` object with `'BinMissingData'` set to `true`.

```sc = creditscorecard(dataMissing,'BinMissingData',true); sc = autobinning(sc);```

Use `bininfo` and `plotbins` to display the `CustAge` and `ResStatus` predictors with missing data.

`bininfo(sc,'CustAge')`
```ans=10×6 table Bin Good Bad Odds WOE InfoValue _____________ ____ ___ ______ ________ __________ {'[-Inf,33)'} 69 52 1.3269 -0.42156 0.018993 {'[33,37)' } 63 45 1.4 -0.36795 0.012839 {'[37,40)' } 72 47 1.5319 -0.2779 0.0079824 {'[40,46)' } 172 89 1.9326 -0.04556 0.0004549 {'[46,48)' } 59 25 2.36 0.15424 0.0016199 {'[48,51)' } 99 41 2.4146 0.17713 0.0035449 {'[51,58)' } 157 62 2.5323 0.22469 0.0088407 {'[58,Inf]' } 93 25 3.72 0.60931 0.032198 {'<missing>'} 19 11 1.7273 -0.15787 0.00063885 {'Totals' } 803 397 2.0227 NaN 0.087112 ```

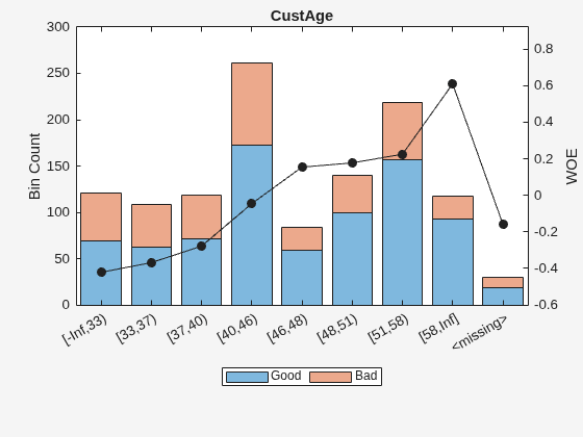

`plotbins(sc,'CustAge');`

`bininfo(sc,'ResStatus')`
```ans=5×6 table Bin Good Bad Odds WOE InfoValue ______________ ____ ___ ______ _________ __________ {'Tenant' } 296 161 1.8385 -0.095463 0.0035249 {'Home Owner'} 352 171 2.0585 0.017549 0.00013382 {'Other' } 128 52 2.4615 0.19637 0.0055808 {'<missing>' } 27 13 2.0769 0.026469 2.3248e-05 {'Totals' } 803 397 2.0227 NaN 0.0092627 ```

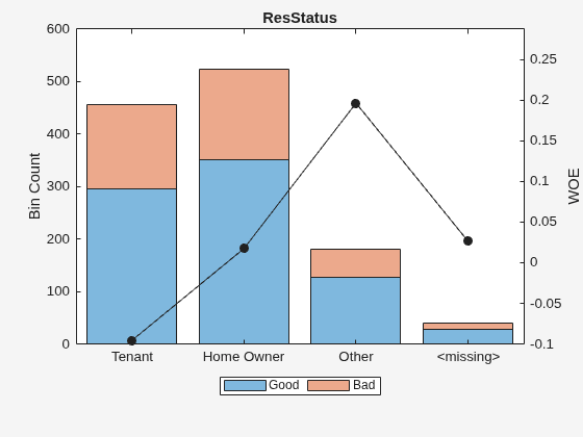

`plotbins(sc,'ResStatus');`

Use `fillmissing` to replace `NaN` values in `CustAge` with the median value and to replace the `<missing>` values in `ResStatus` with `'Tenant'`. Use `predictorinfo` to verify the filled values.

```sc = fillmissing(sc,{'CustAge'},'median'); sc = fillmissing(sc,{'ResStatus'},'constant','Tenant'); predictorinfo(sc,'CustAge')```
```ans=1×4 table PredictorType LatestBinning LatestFillMissingType LatestFillMissingValue _____________ ________________________ _____________________ ______________________ CustAge {'Numeric'} {'Automatic / Monotone'} {'Median'} {[45]} ```
`predictorinfo(sc,'ResStatus')`
```ans=1×5 table PredictorType Ordinal LatestBinning LatestFillMissingType LatestFillMissingValue _______________ _______ ________________________ _____________________ ______________________ ResStatus {'Categorical'} false {'Automatic / Monotone'} {'Constant'} {'Tenant'} ```

Use `bininfo` and `plotbins` to display the `CustAge` and `ResStatus` predictors to verify that the missing data has been replaced with the values defined by `fillmissing`.

`bininfo(sc,'CustAge')`
```ans=9×6 table Bin Good Bad Odds WOE InfoValue _____________ ____ ___ ______ _________ _________ {'[-Inf,33)'} 69 52 1.3269 -0.42156 0.018993 {'[33,37)' } 63 45 1.4 -0.36795 0.012839 {'[37,40)' } 72 47 1.5319 -0.2779 0.0079824 {'[40,46)' } 191 100 1.91 -0.057315 0.0008042 {'[46,48)' } 59 25 2.36 0.15424 0.0016199 {'[48,51)' } 99 41 2.4146 0.17713 0.0035449 {'[51,58)' } 157 62 2.5323 0.22469 0.0088407 {'[58,Inf]' } 93 25 3.72 0.60931 0.032198 {'Totals' } 803 397 2.0227 NaN 0.086822 ```

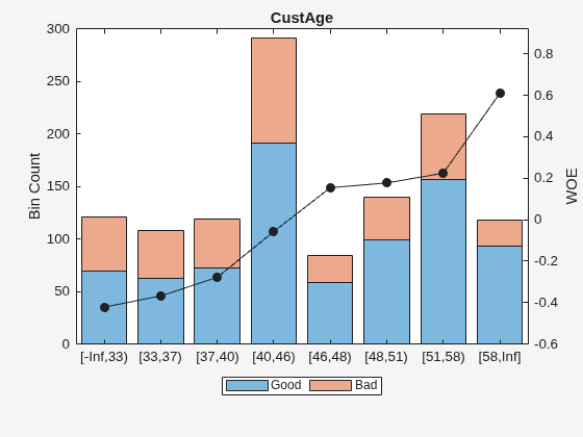

`plotbins(sc,'CustAge');`

`bininfo(sc,'ResStatus')`
```ans=4×6 table Bin Good Bad Odds WOE InfoValue ______________ ____ ___ ______ _________ __________ {'Tenant' } 323 174 1.8563 -0.085821 0.0030935 {'Home Owner'} 352 171 2.0585 0.017549 0.00013382 {'Other' } 128 52 2.4615 0.19637 0.0055808 {'Totals' } 803 397 2.0227 NaN 0.0088081 ```

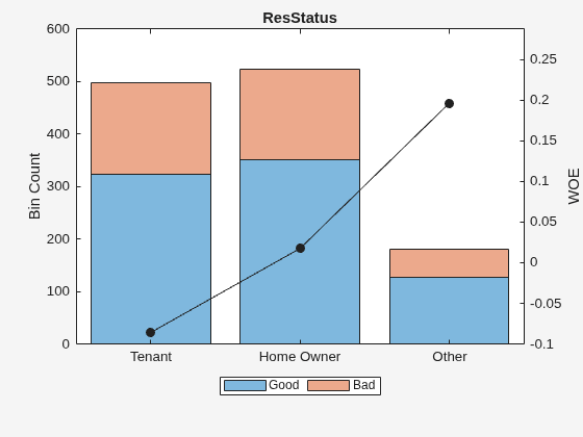

`plotbins(sc,'ResStatus');`

Use `fitmodel` and then run `formatpoints`, `displaypoints`, and `score`.

```sc = fitmodel(sc,'Display','off'); sc = formatpoints(sc,'WorstAndBest',[300 800]); t = displaypoints(sc)```
```t=31×3 table Predictors Bin Points ______________ _________________ ______ {'CustAge' } {'[-Inf,33)' } 72.565 {'CustAge' } {'[33,37)' } 76.588 {'CustAge' } {'[37,40)' } 83.346 {'CustAge' } {'[40,46)' } 99.902 {'CustAge' } {'[46,48)' } 115.78 {'CustAge' } {'[48,51)' } 117.5 {'CustAge' } {'[51,58)' } 121.07 {'CustAge' } {'[58,Inf]' } 149.93 {'CustAge' } {'<missing>' } 99.902 {'EmpStatus' } {'Unknown' } 79.64 {'EmpStatus' } {'Employed' } 133.98 {'EmpStatus' } {'<missing>' } NaN {'CustIncome'} {'[-Inf,29000)' } 21.926 {'CustIncome'} {'[29000,33000)'} 73.949 {'CustIncome'} {'[33000,35000)'} 97.117 {'CustIncome'} {'[35000,40000)'} 101.44 ⋮ ```

When a validation data set has missing values and you use `fillmissing` with the training dataset, the missing values in the validation data set are assigned the same points as the corresponding bins containing the filled values.

As the table shows, the `'<missing>'` bin for the `CustAge` predictor is assigned the same points as the `'[40,46)'` bin because the missing data is filled with the median value `45`.

The points assigned to the `'<missing>'` bin for the `EmpStatus` predictor are `NaN` because `fillmissing` is not used for that predictor. The assigned points are decided by the default `'NoScore'` for the `'Missing'` name-value pair argument in `formatpoints`.

Create a test validation data set (`tdata`) and add missing values.

```tdata = data(1:10,:); tdata.CustAge(1) = NaN; tdata.ResStatus(2) = '<undefined>'; [scr,pts] = score(sc,tdata)```
```scr = 10×1 566.7335 611.2547 584.5130 628.7876 609.7148 671.1048 403.6413 551.9461 575.9874 524.4789 ```
```pts=10×5 table CustAge EmpStatus CustIncome TmWBank AMBalance _______ _________ __________ _______ _________ 99.902 79.64 153.88 145.38 87.933 149.93 133.98 153.88 85.531 87.933 115.78 133.98 101.44 145.38 87.933 117.5 133.98 153.88 83.991 139.44 149.93 133.98 153.88 83.991 87.933 149.93 133.98 153.88 145.38 87.933 76.588 79.64 73.949 85.531 87.933 117.5 133.98 153.88 85.531 61.06 117.5 79.64 153.88 85.531 139.44 117.5 79.64 153.88 85.531 87.933 ```

This example shows different possibilities for handling missing data in validation data.

When scoring data from a validation data set, you have several options. If you choose to do nothing, the points assigned to the missing data are `NaN`, which comes from the default `'NoScore'` for the `'Missing'` name-value pair argument in `formatpoints`.

If you want to score missing values of all the predictors with one consistent metric, you can use the options `'ZeroWOE'`, `'MinPoints'`, or `'MaxPoints'` for the `'Missing'` name-value pair argument in `formatpoints`.

```load CreditCardData.mat sc = creditscorecard(data); predictorinfo(sc,'CustAge')```
```ans=1×4 table PredictorType LatestBinning LatestFillMissingType LatestFillMissingValue _____________ _________________ _____________________ ______________________ CustAge {'Numeric'} {'Original Data'} {'Original'} {0x0 double} ```
`predictorinfo(sc,'ResStatus')`
```ans=1×5 table PredictorType Ordinal LatestBinning LatestFillMissingType LatestFillMissingValue _______________ _______ _________________ _____________________ ______________________ ResStatus {'Categorical'} false {'Original Data'} {'Original'} {0x0 double} ```
```sc = autobinning(sc); sc = fitmodel(sc,'display','off'); displaypoints(sc)```
```ans=37×3 table Predictors Bin Points ______________ ________________ _________ {'CustAge' } {'[-Inf,33)' } -0.15894 {'CustAge' } {'[33,37)' } -0.14036 {'CustAge' } {'[37,40)' } -0.060323 {'CustAge' } {'[40,46)' } 0.046408 {'CustAge' } {'[46,48)' } 0.21445 {'CustAge' } {'[48,58)' } 0.23039 {'CustAge' } {'[58,Inf]' } 0.479 {'CustAge' } {'<missing>' } NaN {'ResStatus' } {'Tenant' } -0.031252 {'ResStatus' } {'Home Owner' } 0.12696 {'ResStatus' } {'Other' } 0.37641 {'ResStatus' } {'<missing>' } NaN {'EmpStatus' } {'Unknown' } -0.076317 {'EmpStatus' } {'Employed' } 0.31449 {'EmpStatus' } {'<missing>' } NaN {'CustIncome'} {'[-Inf,29000)'} -0.45716 ⋮ ```
```sc = formatpoints(sc,'Missing','minpoints','WorstAndBestScores',[300 850]); displaypoints(sc)```
```ans=37×3 table Predictors Bin Points ______________ ________________ ______ {'CustAge' } {'[-Inf,33)' } 46.396 {'CustAge' } {'[33,37)' } 48.727 {'CustAge' } {'[37,40)' } 58.772 {'CustAge' } {'[40,46)' } 72.167 {'CustAge' } {'[46,48)' } 93.256 {'CustAge' } {'[48,58)' } 95.256 {'CustAge' } {'[58,Inf]' } 126.46 {'CustAge' } {'<missing>' } 46.396 {'ResStatus' } {'Tenant' } 62.421 {'ResStatus' } {'Home Owner' } 82.276 {'ResStatus' } {'Other' } 113.58 {'ResStatus' } {'<missing>' } 62.421 {'EmpStatus' } {'Unknown' } 56.765 {'EmpStatus' } {'Employed' } 105.81 {'EmpStatus' } {'<missing>' } 56.765 {'CustIncome'} {'[-Inf,29000)'} 8.9706 ⋮ ```

The value of `-32.5389` for the `<missing>` bin of `'CustAge'` comes from the `'minPoints'` argument for `formatpoints`.

`[scr,pts] = score(sc,dataMissing(1:5,:))`
```scr = 5×1 602.0394 648.1988 560.5569 613.5595 646.8109 ```
```pts=5×7 table CustAge ResStatus EmpStatus CustIncome TmWBank OtherCC AMBalance _______ _________ _________ __________ _______ _______ _________ 95.256 62.421 56.765 121.18 116.05 86.224 64.15 126.46 82.276 105.81 121.18 62.107 86.224 64.15 93.256 62.421 105.81 76.585 116.05 42.287 64.15 46.396 82.276 105.81 121.18 60.719 86.224 110.96 126.46 82.276 105.81 121.18 60.719 86.224 64.15 ```

Alternatively, you can score missing data for each individual predictor with a different statistic based on that predictor's information. To do so, use `fillmissing` for a `creditscorecard` object`.`

```load CreditCardData.mat sc = creditscorecard(data); sc = fillmissing(sc,'CustAge','constant',35); predictorinfo(sc,'CustAge')```
```ans=1×4 table PredictorType LatestBinning LatestFillMissingType LatestFillMissingValue _____________ _________________ _____________________ ______________________ CustAge {'Numeric'} {'Original Data'} {'Constant'} {[35]} ```
```sc = fillmissing(sc,'ResStatus','Mode'); predictorinfo(sc,'ResStatus')```
```ans=1×5 table PredictorType Ordinal LatestBinning LatestFillMissingType LatestFillMissingValue _______________ _______ _________________ _____________________ ______________________ ResStatus {'Categorical'} false {'Original Data'} {'Mode'} {'Home Owner'} ```
```sc = autobinning(sc); sc = fitmodel(sc,'display','off'); sc = formatpoints(sc,'Missing','minpoints','WorstAndBestScores',[300 850]); displaypoints(sc)```
```ans=37×3 table Predictors Bin Points ______________ ________________ ______ {'CustAge' } {'[-Inf,33)' } 46.396 {'CustAge' } {'[33,37)' } 48.727 {'CustAge' } {'[37,40)' } 58.772 {'CustAge' } {'[40,46)' } 72.167 {'CustAge' } {'[46,48)' } 93.256 {'CustAge' } {'[48,58)' } 95.256 {'CustAge' } {'[58,Inf]' } 126.46 {'CustAge' } {'<missing>' } 48.727 {'ResStatus' } {'Tenant' } 62.421 {'ResStatus' } {'Home Owner' } 82.276 {'ResStatus' } {'Other' } 113.58 {'ResStatus' } {'<missing>' } 82.276 {'EmpStatus' } {'Unknown' } 56.765 {'EmpStatus' } {'Employed' } 105.81 {'EmpStatus' } {'<missing>' } 56.765 {'CustIncome'} {'[-Inf,29000)'} 8.9706 ⋮ ```

The value of `<missing>` for `'CustAge'` comes from the fill value of `35` even though the training data has no missing values.

`disp(dataMissing(1:5,:));`
``` CustID CustAge TmAtAddress ResStatus EmpStatus CustIncome TmWBank OtherCC AMBalance UtilRate status ______ _______ ___________ ___________ _________ __________ _______ _______ _________ ________ ______ 1 53 62 <undefined> Unknown 50000 55 Yes 1055.9 0.22 0 2 61 22 Home Owner Employed 52000 25 Yes 1161.6 0.24 0 3 47 30 Tenant Employed 37000 61 No 877.23 0.29 0 4 NaN 75 Home Owner Employed 53000 20 Yes 157.37 0.08 0 5 68 56 Home Owner Employed 53000 14 Yes 561.84 0.11 0 ```
`[scr,pts] = score(sc,dataMissing(1:5,:))`
```scr = 5×1 621.8943 648.1988 560.5569 615.8904 646.8109 ```
```pts=5×7 table CustAge ResStatus EmpStatus CustIncome TmWBank OtherCC AMBalance _______ _________ _________ __________ _______ _______ _________ 95.256 82.276 56.765 121.18 116.05 86.224 64.15 126.46 82.276 105.81 121.18 62.107 86.224 64.15 93.256 62.421 105.81 76.585 116.05 42.287 64.15 48.727 82.276 105.81 121.18 60.719 86.224 110.96 126.46 82.276 105.81 121.18 60.719 86.224 64.15 ```

## Input Arguments

collapse all

Credit scorecard model, specified as a `creditscorecard` object.

Name of `creditscorecard` predictor to fill missing data for, specified as a scalar character vector, scalar string, cell array of character vectors, or string array.

Data Types: `char` | `string` | `cell`

Statistic to use to fill missing data for the predictors, specified as a character vector or string with one of the following values.

• `'mean'` — Replace missing data with the average or mean value. The option is valid only for numeric data. The `'mean'` calculates the weighted mean of the predictor by referring to the predictor column and the `Weights` column from the `creditscorecard` object. For more information, see Weighted Mean.

• `'median'` — Replace missing data with the median value. Valid for numeric and ordinal data. The `'median'` calculates the weighted median of the predictor by referring to the predictor column and the `Weights` column from the `creditscorecard` object. For more information, see Weighted Median.

• `'mode'` — Replace missing data with the mode. Valid for numeric and both nominal and ordinal categorical data. The `'mode'` calculates the weighted `mode` of the predictor by referring to the predictor column and the `Weights` column from the `creditscorecard` object. For more information, see Weighted Mode.

• `'original'` — Set the missing data for numeric and categorical predictors back to its original value: `NaN` if numeric, `<undefined>` or `<missing>` if categorical.

• `'constant'` — Set the missing data for numeric and categorical predictors to a constant value that you specify in the optional argument for `ConstantValue`.

Data Types: `char` | `string`

(Optional) Value to fill missing entries in predictors specified in `PredictorNames`, specified as a numeric value, character vector, string, or cell array of character vectors.

Note

You can use `ConstantValue` only if you set the `Statistics` argument to `'constant'`.

Data Types: `char` | `double` | `string` | `cell`

## Output Arguments

collapse all

Updated `creditscorecard` object, returned as an object.

collapse all

### Weighted Mean

The weighted mean is similar to an ordinary mean except that instead of each of the data points contributing equally to the final average, some data points contribute more than others.

The weighted mean for a nonempty finite multiset of data (x) with corresponding nonnegative weights (w) is

`$\overline{x}=\frac{\sum _{i=1}^{n}{w}_{i}{x}_{i}}{\sum _{i=1}^{n}{w}_{i}}$`

### Weighted Median

The weighted median is the 50% weighted percentile, where the percentage in the total weight is counted instead of the total number.

For n distinct ordered elements (x) positive weights (w) such that $\sum _{i=1}^{n}{w}_{i}=1$, the weighted median is the element xk:

In the case where the respective weights of both elements border the midpoint of the set of weights without encapsulating it, each element defines a partition equal to 1/2. These elements are referred to as the lower weighted median and upper weighted median. The weighted median is chosen based on which element keeps the partitions most equal. This median is always the weighted median with the lowest weight. In the event that the upper and lower weighted medians are equal, the lower weighted median is accepted.

### Weighted Mode

The weighted mode of a set of weighted data values is the value that appears most often.

The mode of a sample is the element that occurs most often in the collection. For example, the mode of the sample [1, 3, 6, 6, 6, 6, 7, 7, 12, 12, 17] is 6.

## References

[1] “Basel Committee on Banking Supervision: Studies on the Validation of Internal Rating Systems.” Working Paper No. 14, February 2005.

[2] Refaat, M. Credit Risk Scorecards: Development and Implementation Using SAS. lulu.com, 2011.

[3] Loeffler, G. and Posch, P. N. Credit Risk Modeling Using Excel and VBA. Wiley Finance, 2007.

Introduced in R2020a
