Estimate covariance matrix using shrinkage estimators

Since R2023a



SigmaHat = covarianceShrinkage(AssetReturns) returns a covariance estimate using linear shrinkage to reduce the mean squared error (MSE).

covarianceShrinkage computes an estimate of the covariance matrix from a sample of asset returns using the multiple of the identity shrinkage estimation method. For more information, see Covariance Shrinkage and covarianceShrinkage Algorithm.

In addition, you can use covarianceDenoising to compute an estimate of covariance matrix using denoising. For information on which covariance estimation method to choosesee Comparison of Methods for Covariance Estimation.


collapse all

This example shows how to use covarianceShrinkage to compute covariance estimations that take into account the noise in the sample. In mean-variance portfolio optimization, a noisy estimate of the covariance estimate results in unstable solutions that cause high turnover and transaction costs. Ideally, to decrease the estimation error, it is desirable to increase the sample size. Yet, there are cases where this is not possible. In extreme cases in which the number of assets is larger than the number of observations, the traditional covariance matrix results in a singular matrix. Working with a nearly singular or an ill-conditioned covariance matrix magnifies the impact of estimation errors.

Compute a portfolio efficient frontier using different covariance estimates with the same sample data.

% Load portfolio data with 225 assets
load port5.mat
covariance = corr2cov(stdDev_return,Correlation);
% Generate a sample with 200 observations
nScen = 200;
retSeries = portsim(mean_return',covariance,nScen);

Compute the traditional and shrunk covariance estimates. Use covarianceShrinkage to reduce the effect of noise in the covariance approximation.

Sigma = cov(retSeries);
shrunkSigma = covarianceShrinkage(retSeries);

Compute the condition number of both covariance estimates. The shrunken covariance (shrunkSigma) has a lower condition number than the traditional covariance estimate Sigma.

conditionNum = [cond(Sigma); cond(shrunkSigma)];
condNumT = table(conditionNum,'RowNames',{'Sigma','SigmaHat'})
condNumT=2×1 table

    Sigma        6.8746e+18
    SigmaHat         5274.8

Use Portfolio to construct Portfolio objects that use the different AssetCovar values. Then use setDefaultConstraints to set the portfolio constraints with nonnegative weights that sum to 1 for the three portfolios: the true mean with the true covariance, the traditional covariance estimate, and the shrunk estimate.

% Create a Portfolio object with the true parameters
p = Portfolio(AssetMean=mean_return,AssetCovar=covariance);
p = setDefaultConstraints(p);

% Create a Portfolio object with true mean and traditional covariance estimate
pTraditional = Portfolio(AssetMean=mean_return,AssetCovar=Sigma);
pTraditional = setDefaultConstraints(pTraditional);

% Create a Portfolio object with true mean and shrunk covariance
pShrunk = Portfolio(AssetMean=mean_return,AssetCovar=shrunkSigma);
pShrunk = setDefaultConstraints(pShrunk);

Use estimateFrontier to estimate the efficient frontier for each of the Portfolio objects.

% Number of portfolios on the efficient frontier
nPort = 20;

% True efficient portfolios
w = estimateFrontier(p,nPort);

% Traditional covariance efficient portfolios
wTraditional = estimateFrontier(pTraditional,nPort);

% Denoised covariance efficient portfolios
wShrunk = estimateFrontier(pShrunk,nPort);

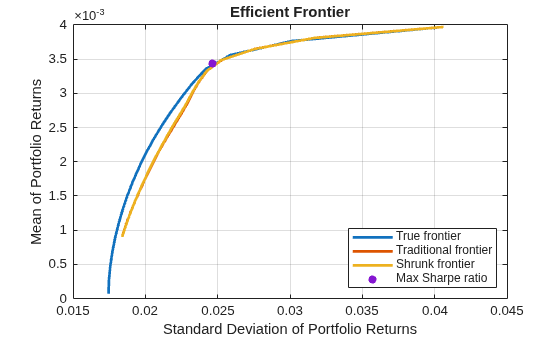

Use plotFrontier to plot the frontier obtained from the different weights using the true parameter values.

hold on
legend('True frontier','Traditional frontier','Shrunk frontier', ...,
'Max Sharpe ratio',Location='southeast');
hold off

In this example, the efficient frontiers obtained using the traditional covariance estimate and the shrunk estimate are close to each other. This means that both methods achieve similar risk and returns out-of-sample. Where the difference between these methods is more noticeable is for the portfolios to the left of the maximum Sharpe ratio portfolio. For those portfolios, the allocation computed using shrinkage has better returns out-of-sample.

This example compares a minimum variance investment strategy using the traditional covariance estimate with a minimum variance strategy using covariance shrinkage.

Load the data.

% Read a table of daily adjusted close prices for 2006 DJIA stocks.
T = readtable('dowPortfolio.xlsx');

% Convert the table to a timetable.
pricesTT = table2timetable(T,'RowTimes','Dates');
numAssets = size(pricesTT.Variables, 2);

Use the first 42 days of the dowPortfolio.xlsx data set to initialize the backtest strategies. The backtest is then run over the remaining data.

warmupPeriod = 42;

Compute the initial weights. Use the traditionalStrat and shrunkStrat functions in Local Functions to compute the weights.

% Specify no current weights (100% cash position).
w0 = zeros(1,numAssets);

% Specify warm-up partition of data set timetable.
warmupTT = pricesTT(1:warmupPeriod,:);

% Compute the initial portfolio weights for each strategy.
traditional_initial = traditionalStrat(w0,warmupTT);
shrunk_initial = shrunkStrat(w0,warmupTT);

Create traditional and shrinkage backtest strategy objects using backtestStrategy.

% Rebalance approximately every month.
rebalFreq = 21;

% Set the rolling lookback window to be at least 2 months and at
% most 6 months.
lookback  = [42 126];

% Use a fixed transaction cost (buy and sell costs are both 0.5%
% of amount traded).
transactionsFixed = 0.005;

% Specify the strategy objects.
strat1 = backtestStrategy('Traditional', @traditionalStrat, ...
    RebalanceFrequency=rebalFreq, ...
    LookbackWindow=lookback, ...
    TransactionCosts=transactionsFixed, ...

strat2 = backtestStrategy('Shrinkage', @shrunkStrat, ...
    RebalanceFrequency=rebalFreq, ...
    LookbackWindow=lookback, ...
    TransactionCosts=transactionsFixed, ...

% Aggregate the two strategy objects into an array.
strategies = [strat1, strat2];

Create a backtestEngine object then use runBacktest to run the backtest.

% Create the backtesting engine object.
backtester = backtestEngine(strategies);

% Run the backtest.
backtester = runBacktest(backtester,pricesTT,'Start',warmupPeriod);

% Generate summary table of the performance of the strategies.
ans=9×2 table
                       Traditional    Shrinkage
                       ___________    __________

    TotalReturn           0.13431        0.14101
    SharpeRatio           0.10807        0.11565
    Volatility          0.0057472      0.0056077
    AverageTurnover     0.0098378      0.0077384
    MaxTurnover           0.36237        0.31835
    AverageReturn       0.0006196     0.00064699
    MaxDrawdown          0.058469       0.058133
    AverageBuyCost        0.51636        0.40533
    AverageSellCost       0.51636        0.40533

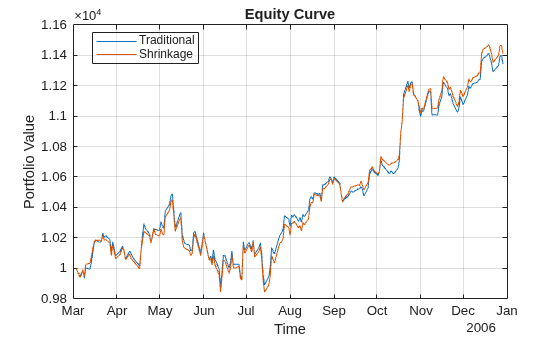

Use equityCurve to plot the equity curve to compare the performance of both strategies.


The maximum and average turnover are decreased using covariance shrinkage. Also, the covariance shrinkage strategy results in a decrease of buy and sell costs. In this example, not only is the turnover decreased, but also the volatility and the maximum drawdown are decreased. Therefore, in this example the shrunk covariance produces more robust weights.

Local Functions

function new_weights = traditionalStrat(~, pricesTT)
% Function for minimum variance portfolio using traditional covariance estimate.

% Compute the returns from the prices timetable.
assetReturns = tick2ret(pricesTT);
mu = mean(assetReturns.Variables);
Sigma = cov(assetReturns.Variables,"omitrows");

% Create the portfolio problem.
p = Portfolio(AssetMean=mu,AssetCovar=Sigma);
% Specify long-only fully invested contraints.
p = setDefaultConstraints(p);

% Compute the minimum variance portfolio.
new_weights = estimateFrontierLimits(p,'min');

function new_weights = shrunkStrat(~, pricesTT)
% Function for minimum variance portfolio using covariance shrinkage.

% Compute the returns from the prices timetable.
assetReturns = tick2ret(pricesTT);
mu = mean(assetReturns.Variables);
Sigma = covarianceShrinkage(assetReturns.Variables);

% Create the portfolio problem.
p = Portfolio(AssetMean=mu,AssetCovar=Sigma);
% Specify long-only fully invested contraints.
p = setDefaultConstraints(p);

% Compute the minimum variance portfolio.
new_weights = estimateFrontierLimits(p,'min');

Input Arguments

collapse all

Asset returns, specified as a NumObservations-by-NumAssets matrix, table, or timetable.


All NumObservations with one or more NaN values are removed before computing the covariance estimate.

Data Types: double | table | timetable

Output Arguments

collapse all

Covariance estimate, returned as a NumAssets-by-NumAssets matrix.

More About

collapse all

Covariance Shrinkage

Shrinkage estimators for covariance shrinkage are used to reduce the effect of noise in the covariance approximation.

The goal of covariance shrinkage is to pull all eigenvalues of the traditional covariance matrix towards a target.


The covarianceShrikage function applies a linear shrinkage method that shrinks the traditional covariance estimate to a multiple of the identity matrix.


Here, Σ is the standard covariance estimate, τ is the average sample variance, and α[0,1] is the intensity parameter computed using


where zi is the i th row of the centered sample matrix Z and N is the sample size.


[1] Ledoit, O. and Wollf, M. "A Well-Conditioned Estimator for Large-Dimensional Covariance Matrices." Journal of Multivariate Analysis. vol. 88, no. 2, 365–411, 2004.

Version History

Introduced in R2023a
