recessionplot

Overlay recession bands on time series plot

Syntax

``recessionplot``
``recessionplot(Name,Value)``
``hBands = recessionplot(___)``

Description

example

````recessionplot` overlays shaded US recession bands, as reported by the National Bureau of Economic Research (NBER), on a time series plot in the current axes. Abscissa data must represent dates created by `datenum` or `datetime`.```

example

````recessionplot(Name,Value)` uses additional options specified by one or more name-value arguments. For example, `recessionplot('recessions',recessionPeriods)` specifies overlaying shaded bands for the recession periods in `recessionPeriods`. ```

example

````hBands = recessionplot(___)` returns a vector of handles to the recession bands, using any of the input-argument combinations in the previous syntaxes.```

Examples

collapse all

Load the `Data_Unemployment.mat` data set, which contains a monthly US unemployment rate series measured from 1954 through 1998.

`load Data_Unemployment`

The variables `Data` and `dates`, among others, appear in the workspace. For more details on the data, enter `Description`.

`Data` is a 45-by-12 matrix of the unemployment rates. The rows of `Data` correspond to successive years and its columns correspond to successive months; `Data(``j``,``k``)` is the unemployment rate in month `k` of year `j`. Represent `Data` as a vector of regular time series data by transposing the matrix, and then vertically concatenating the columns of the result.

```Data = Data'; un = Data(:);```

`dates` is a numeric vector of the 45 consecutive sampling years. Create a `datetime` vector that expands `dates` by including all months within each year.

```Y = repmat(dates',12,1); Y = Y(:); M = repmat((1:12)',length(dates),1); D = ones(length(un),1); t = datetime(Y,M,D);```

Alternatively, you can use the `calmonths` function to efficiently include all months within each year.

```tspan = datetime([dates(1); dates(end)],[1; 12],[1; 1]); t = (tspan(1):calmonths(1):tspan(2))';```

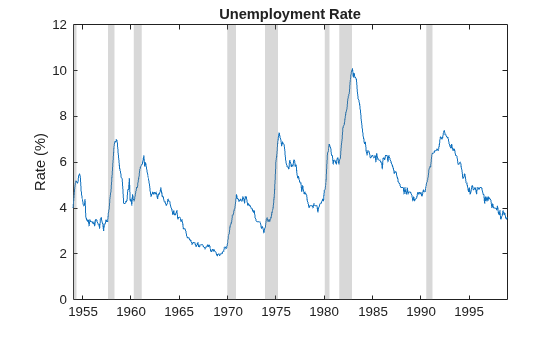

Plot the unemployment rate series. Overlay bands for recession periods reported by NBER.

```figure plot(t,un) recessionplot ylabel('Rate (%)') title("Unemployment Rate")```

Periods of recession appear to occur with sudden, relatively large increases in the unemployment rate.

Overlay recession bands on time series plot, then return the handles of the recession bands to change the color and opacity of the bands.

Load the `Data_CreditDefaults.mat` data set, which contains a credit default rate series and several predictor series measured annually from 1984 through 2004.

`load Data_CreditDefaults`

The variables `Data` and `dates`, among others, appear in the workspace. For more details on the data, enter `Description`.

`Data` is a 21-by-5 numeric matrix containing the series. Extract the predictor series, which comprise the first four columns.

`X = Data(:,1:4);`

dates is a numeric vector containing the 21 sampling years. Convert `dates` to a `datetime` vector of years. Assume the series are measured at the end of the year.

```T = numel(dates); dates = [dates [12 31].*ones(T,2)]; dates = datetime(dates);```

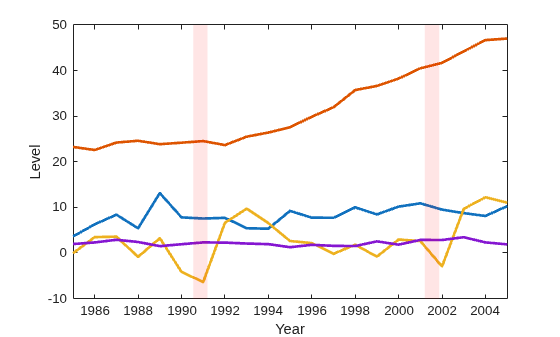

Plot the predictor series. Overlay recession bands and return the handles to the bands. Change the band color to red and reduce the opacity to 0.1.

```figure; plot(dates,X,'LineWidth',2); xlabel("Year"); ylabel("Level"); hBands = recessionplot; set(hBands,'FaceColor',"r",'FaceAlpha',0.1);```

Input Arguments

collapse all

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `'recessions',recessionPeriods` specifies overlaying shaded bands for the recession periods in `recessionPeriods`.

Axes on which to overlay recession bands, specified as an `Axes` object. The target axes must contain a time series plot with serial dates on the horizontal axis.

By default, `recessionplot` plots to the current axes (`gca`).

Recession periods, or data indicating the beginning and end of historical recessions, specified as a `numRecessions`-by-`2` matrix of serial date numbers or `datetime` entries. Each row is a period of recession, with the first column indicating the beginning of the recession and the second column indicating the end of the recession.

The default is the US recession data in `Data_Recessions.mat`, reported by NBER [1].

Output Arguments

collapse all

Handles to plotted graphics objects, returned as a graphics vector. `hBands` contains unique plot identifiers, which you can use to query or modify properties of the recession bands.

Tips

• `recessionplot` requires `datetime` values or serial date numbers on the horizontal axis of a time series plot. To convert other date information to this format before plotting, use `datetime` or `datenum`.

• To achieve satisfactory displays on certain monitors and projectors, change the color and opacity of the recession bands by setting the `FaceColor` and `FaceAlpha` properties of the output handles.

References

[1] National Bureau of Economic Research (NBER), Business Cycle Expansions and Contractions, `https://www.nber.org/research/data/us-business-cycle-expansions-and-contractions`.

Version History

Introduced in R2012a
