cascade

Cascade of filter system objects

collapse all in page

Syntax

FC = cascade(obj1,obj2,...objn)

Description

FC = cascade(obj1,obj2,...objn) returns an object, FC, of type dsp.FilterCascade. FC is a cascaded version of the input System objects obj1, obj2,....objn. You can input multiple System objects to the function. The input System objects must be supported by the cascade method. For the list of supported System objects, see Input Arguments.

example

Examples

collapse all

Open Live Script

Design a two-stage decimator by cascading dsp.CICDecimator and dsp.CICCompensationDecimator System objects.

Construct the objects

CICDecim = dsp.CICDecimator('DecimationFactor', 6, ...
                            'NumSections', 6);
fs = 16e3;     % Sampling frequency of input of compensation decimator
fPass = 4e3;   % Passband frequency
fStop = 4.5e3; % Stopband frequency
CICCompDecim = dsp.CICCompensationDecimator(CICDecim, ...
                              'DecimationFactor', 2, ...
                              'PassbandFrequency', fPass, ...
                              'StopbandFrequency', fStop, ...
                              'SampleRate', fs);

Create a cascade of the two objects using the cascade method

 FC = cascade(CICDecim, CICCompDecim);

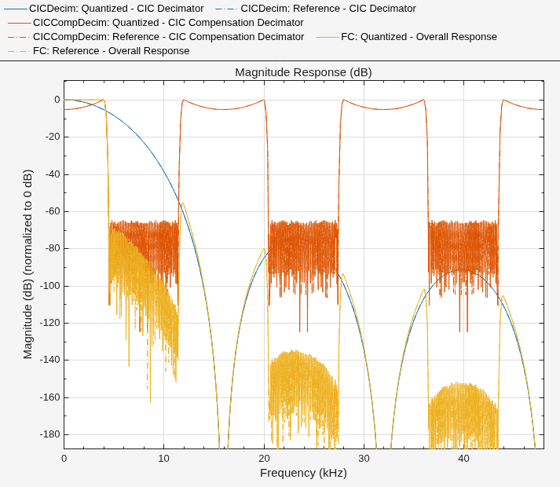

Visualize the frequency response of the cascade

 f = fvtool(CICDecim, CICCompDecim, FC, 'Fs', [fs*6, fs, fs*6],...
        'Arithmetic', 'fixed');
 set(f, 'NormalizeMagnitudeto1', 'on');
 legend(f,'CIC Decimator','CIC Compensation Decimator', ...
             'Overall Response');

Input Arguments

collapse all

obj1, obj2,....objn are filters to be cascaded. To see the list of System objects you can pass to the cascade method, type

dsp.FilterCascade.helpSupportedSystemObjects
in the MATLAB® command prompt.

Output Arguments

collapse all

Cascaded filter, returned as a System object of type dsp.FilterCascade. For information on the properties of the filter in each stage, type info(FC) in the MATLAB command prompt.

Version History

Introduced in R2016a
