rotate
Rotate mesh about coordinate axes
Description
rotate the rotatedMesh
= rotate(mesh
,orient
)mesh
object by an orientation, orient
.
Examples
Create and Rotate Cuboid Mesh
Create an extendedObjectMesh
object and rotate the object.
Construct a cuboid mesh.
mesh = extendedObjectMesh('cuboid');
Rotate the mesh by 30 degrees around the z axis.
mesh = rotate(mesh,[30 0 0]);

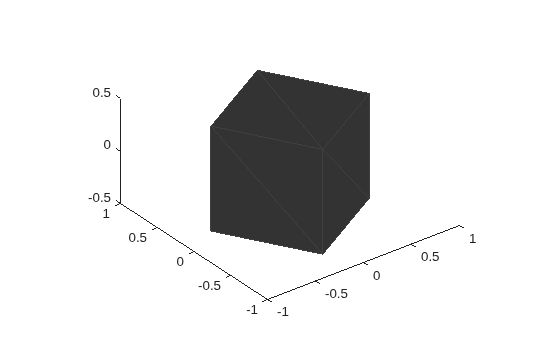

Visualize the mesh.
ax = show(mesh);
Input Arguments
mesh
— Extended object mesh
extendedObjectMesh
object
Extended object mesh, specified as an extendedObjectMesh
object.
orient
— Description of rotation
3-by-3 orthonormal matrix | quaternion | 1-by-3 vector
Description of rotation for an object mesh, specified as:
3-by-3 orthonormal rotation matrix
1-by-3 vector, where the elements are positive rotations in degrees about the z, y, and x axes, in that order.
Output Arguments
rotatedMesh
— Rotated object mesh
extendedObjectMesh
object
Rotated object mesh, returned as an extendedObjectMesh
object.
Version History
