## Description

The `comm.FMBroadcastModulator` System object™ pre-emphasizes an audio signal and modulates it onto a baseband FM signal. If the `Stereo` property is set to `true`, the object modulates the audio input (LR) in the 38 kHz band, in addition to modulating it in the baseband (L+R). If the `RBDS` property is set to `true`, the object modulates a baseband RDS/RBDS signal at 57 kHz. For more details, see Algorithms.

To FM modulate an audio signal:

1. Define and set up the `comm.FMBroadcastModulator` object. See Construction.

2. Call `step` to apply broadcast FM modulation to an audio signal according to the properties of `comm.FMBroadcastModulator`.

Note

Starting in R2016b, instead of using the `step` method to perform the operation defined by the System object, you can call the object with arguments, as if it were a function. For example, ```y = step(obj,x)``` and `y = obj(x)` perform equivalent operations.

## Construction

`fmbMod = comm.FMBroadcastModulator` creates a modulator System object, `fmbMod`, that frequency modulates an input signal.

`fmbMod = comm.FMBroadcastModulator(demod)` creates a broadcast FM modulator object whose properties are determined by the corresponding broadcast FM demodulator object, `demod`.

`fmbMod = comm.FMBroadcastModulator(Name,Value)` creates a broadcast FM modulator object with each specified property `Name` set to the specified `Value`. You can specify additional name-value pair arguments in any order as (`Name1`,`Value1`,...,`NameN`,`ValueN`).

## Properties

 `SampleRate` Output signal sample rate (Hz) Specify the sample rate of the output signal in Hz as a positive real scalar. The default value is `240e3`. This property is nontunable. `FrequencyDeviation` Peak deviation of the output signal frequency (Hz) Specify the frequency deviation of the FM modulator in Hz as a positive real scalar. The default value is `75e3`. The system bandwidth is equal to twice the sum of the frequency deviation and the message bandwidth. FM broadcast standards specify a value of 75 kHz in the United States and 50 kHz in Europe. This property is nontunable. `FilterTimeConstant` Filter time constant (s) Specify the pre-emphasis highpass filter time constant as a positive real scalar. FM broadcast standards specify a value of 75 μs in the United States and 50 μs in Europe. The default value is `7.5e-05`. The property is nontunable. `AudioSampleRate` Sample rate of the input audio signal (Hz) Specify the audio sample rate as a positive real scalar. The default value is `48000`. This property is nontunable. `Stereo` Flag to set stereo operations Set this property to `true` if the input is a stereophonic audio signal. Set to `false` if the input signal is monophonic. The default is `false`. This property is nontunable. `RBDS` Flag to modulate RDS/RBDS waveform If `RBDS` is set to true, the `step` method accepts the baseband RDS/RBDS waveform as its second input and the object modulates the signal at 57 kHz. The default value is `false`. This property is nontunable. `RBDSSamplesPerSymbol` Oversampling factor of RDS/RBDS input Specify the number of samples per RDS/RBDS symbol as a positive integer. The RDS/RBDS sample rate is given by `RBDSSamplesPerSymbol` × `1187.5` Hz. According to the RDS/RBDS standard, the sample rate of each bit is 1187.5 Hz. This property applies only when you set `RBDS` to `true`. The default is 10.

## Methods

Common to All System Objects
`release`

Allow System object property value changes

`reset`

Reset internal states of System object

When using `reset`, this method resets the windowed suffix from the last symbol in the previously processed frame.

## Examples

collapse all

Modulate and demodulate a streaming audio signal with the FM broadcast modulator and demodulator objects. Play the audio signal using a default audio device.

Note: This example runs only in R2016b or later. If you are using an earlier release, replace each call to the function with the equivalent `step` syntax. For example, myObject(x) becomes step(myObject,x).

Create an audio file reader System object™ and read the file `guitartune.wav`.

`audio = dsp.AudioFileReader('guitartune.wav','SamplesPerFrame',4410);`

Create FM broadcast modulator and demodulator objects. Set the `AudioSampleRate` property to match the sample rate of the input signal. Set the `SampleRate` property of the demodulator to match the specified sample rate of the modulator. Set the `PlaySound` property of the demodulator to `true` to enable audio playback.

```fmbMod = comm.FMBroadcastModulator('AudioSampleRate',audio.SampleRate, ... 'SampleRate',240e3); fmbDemod = comm.FMBroadcastDemodulator( ... 'AudioSampleRate',audio.SampleRate, ... 'SampleRate',240e3,'PlaySound',true);```

Read the audio data in frames of length 4410, apply FM broadcast modulation, demodulate the FM signal and playback the audio input.

```while ~isDone(audio) audioData = audio(); modData = fmbMod(audioData); demodData = fmbDemod(modData); end```

Generate a basic RBDS waveform, FM modulate it with an audio signal, and then demodulate it.

Note: This example runs only in R2017a or later.

Create a RBDS waveform with 19 groups per frame and 10 samples per symbol. The sample rate of the RBDS waveform is given by 1187.5 x 10. Set the audio sample rate to 1187.5 x 40.

```groupLen = 104; sps = 10; groupsPerFrame = 19; rbdsFrameLen = groupLen*sps*groupsPerFrame; afrRate = 40*1187.5; rbdsRate = 1187.5*sps; outRate = 4*57000; afr = dsp.AudioFileReader('rbds_capture_47500.wav','SamplesPerFrame',rbdsFrameLen*afrRate/rbdsRate); rbds = comm.RBDSWaveformGenerator('GroupsPerFrame',groupsPerFrame,'SamplesPerSymbol',sps); fmMod = comm.FMBroadcastModulator('AudioSampleRate',afr.SampleRate,'SampleRate',outRate,... 'Stereo',true,'RBDS',true,'RBDSSamplesPerSymbol',sps); fmDemod = comm.FMBroadcastDemodulator('SampleRate',outRate,... 'Stereo',true,'RBDS',true,'PlaySound',true); scope = timescope('SampleRate',outRate,'YLimits',10^-2*[-1 1]); ```

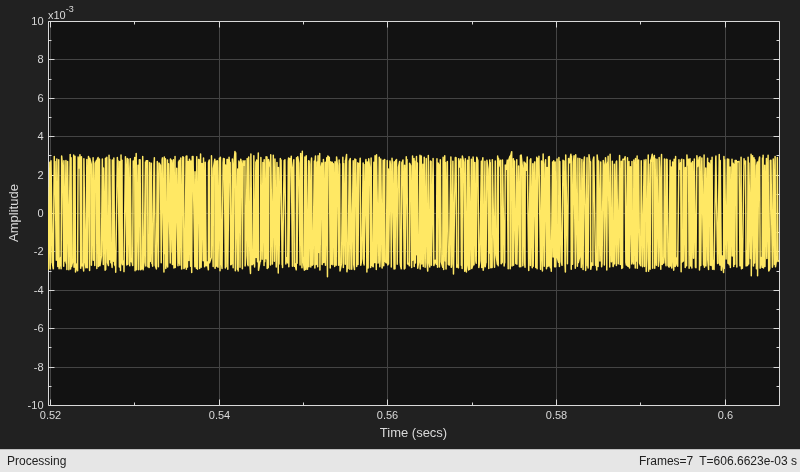

Get the current audio input. Generate RBDS information at the same configured rate as audio. FM modulate the stereo audio with RBDS information. Add additive white Gaussian noise. FM demodulate the audio and RBDS waveforms. View the waveforms in a time scope.

```for idx = 1:7 input = afr(); rbdsWave = rbds(); yFM = fmMod([input input], rbdsWave); rcv = awgn(yFM, 40); [audioRcv, rbdsRcv] = fmDemod(rcv); scope(rbdsRcv); end ```

## Algorithms

The FM Broadcast modulator includes the functionality of the baseband FM modulator, pre-emphasis filtering, and the ability to transmit stereophonic signals. The algorithms which govern basic FM modulation and demodulation are covered in `comm.FMModulator`.

### Filtering

FM amplifies high-frequency noise and degrades the overall signal-to-noise ratio. To compensate, FM broadcasters insert a pre-emphasis filter prior to FM modulation to amplify the high-frequency content. The FM receiver has a reciprocal de-emphasis filter after the FM demodulator to attenuate high-frequency noise and restore a flat signal spectrum.

The pre-emphasis filter has a highpass characteristic transfer function given by

`${H}_{p}\left(f\right)=1+j2\pi f{\tau }_{s}\text{\hspace{0.17em}},$`

where τs is the filter time constant. The time constant is 50 μs in Europe and 75 μs in the United States. Similarly, the transfer function for the lowpass de-emphasis filter is given by

`${H}_{d}\left(f\right)=\frac{1}{1+j2\pi f{\tau }_{s}}\text{\hspace{0.17em}}.$`

Irrespective of the audio sampling rate, the signal is converted to a 152 kHz output sampling rate. For an audio sample rate of 44.1 kHz, the pre-emphasis filter has the following response.

### Stereo and RDS/RBDS FM – Multiplex Signal

The FM broadcast modulator supports stereophonic and monophonic operations. To support stereo transmission, the left (L) and right (R) channel information (L+R) is assigned to the mono portion of the spectrum (0 to 15 kHz). The (L-R) information is amplitude modulated onto the 23 to 53 kHz region of the baseband spectrum using a 38 kHz subcarrier signal. A pilot tone at 19 kHz in the multiplexed signal enables the FM receiver to coherently demodulate the stereo and RDS/RBDS signals. Here is the spectrum of the multiplex baseband signal.

Here is the block diagram of the FM broadcast modulator, which is used to generate the multiplex baseband signal. L(t) and R(t) denote the time-domain waveforms from the left and right channels. RBDS(t) denotes the time-domain waveform of the RDS/RBDS signal.

The multiplex message signal, m(t) is given by

`$m\left(t\right)={C}_{0}\left[L\left(t\right)+R\left(t\right)\right]+{C}_{1}\mathrm{cos}\left(2\pi ×19kHz×t\right)+{C}_{0}\left[L\left(t\right)-R\left(t\right)\right]\mathrm{cos}\left(2\pi ×38kHz×t\right)+{C}_{2}RBDS\left(t\right)\mathrm{cos}\left(2\pi ×57kHz×t\right)\text{\hspace{0.17em}},$`

where C0, C1, and C2 are gains. To generate the appropriate modulation level, these gains scale the amplitudes of the (L(t)±R(t)) signals, the 19 kHz pilot tone, and the RDS/RBDS subcarrier, respectively.

## Limitations

• If `RBDS` is `true`, both the audio and RDS/RBDS inputs must satisfy the following equation:

`$\frac{audioLength}{audioSampleRate}=\frac{RBDSLength}{RBDSSampleRate}$`

• The input length of the audio signal must be an integer multiple of the `AudioDecimationFactor` property. The input length of the RDS/RBDS signal must be an integer multiple of the `RBDSDecimationFactor` property. For more information on these two properties, see the `info` method.

## References

[1] Chakrabarti, I. H., and Hatai, I. “A New High-Performance Digital FM Modulator and Demodulator for Software-Defined Radio and Its FPGA Implementation.” International Journal of Reconfigurable Computing. Vol. 2011, No. 10.1155/2011, 2011, p. 10.

[2] Taub, Herbert, and Donald L. Schilling. Principles of Communication Systems. New York: McGraw-Hill, 1971, pp. 142–155.

[3] Der, Lawrence. “Frequency Modulation (FM) Tutorial”. FM Tutorial. Silicon Laboratories Inc., pp. 4–8.

## Extended Capabilities

Introduced in R2015a
