PHY Modeling
Bluetooth® Toolbox features and reference examples enable you to model Bluetooth basic rate/enhanced data rate (BR/EDR) and low energy (LE) physical layer (PHY) processing based on Bluetooth Core Specification 5.3.
Use the PHY modeling capabilities of the toolbox to:
Configure a Bluetooth BR/EDR and LE channel.
Generate and visualize Bluetooth BR/EDR and LE waveforms.

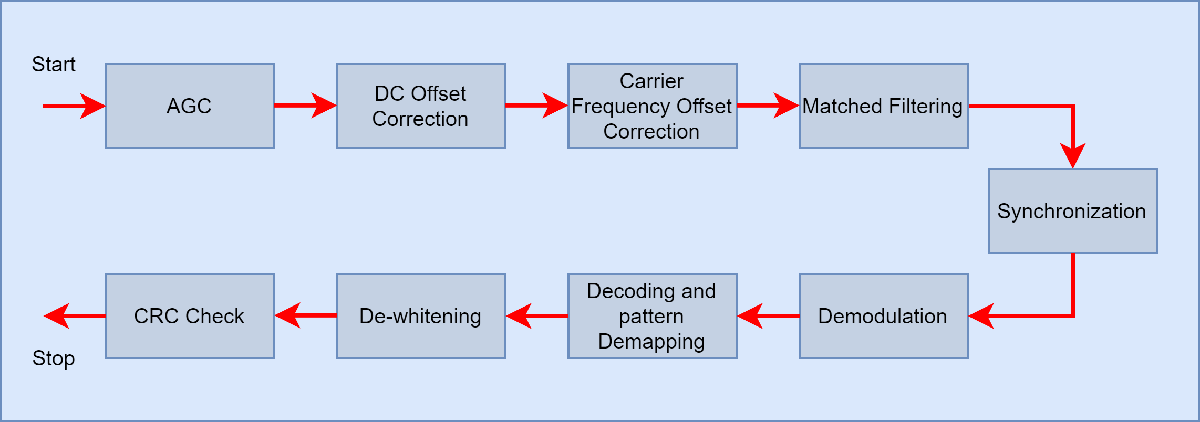

Decode Bluetooth BR/EDR and LE waveforms using the ideal receiver. The ideal receiver assumes perfect synchronization and enables you to demodulate and decode synchronized time-domain Bluetooth waveforms.
You can also decode the captured signals or the signals received in real time using software-defined radio (SDR) hardware such as the ADALM-PLUTO Radio.
Compute the packet error rate (PER) and bit error rate (BER) values for the Bluetooth BR/EDR and LE waveforms.

Functions
bluetoothWaveformGenerator | Generate Bluetooth BR/EDR PHY waveform |
bluetoothIdealReceiver | Decode Bluetooth BR/EDR PHY waveform |
bleWaveformGenerator | Generate Bluetooth LE PHY waveform |
bleIdealReceiver | Decode Bluetooth LE PHY waveform |
bleCTEIQSample | Perform IQ sampling on CTE field of Bluetooth LE packet |
bluetoothPacketDuration | Compute Bluetooth BR/EDR or LE packet duration |
Objects
bluetoothWaveformConfig | Bluetooth BR/EDR waveform generator configuration parameters |
bluetoothPhyConfig | Bluetooth BR/EDR PHY configuration parameters |
bluetoothWhiten | Whiten or dewhiten input data bits |
Topics
- Bluetooth Protocol Stack
Differentiate between the Bluetooth BR/EDR and Bluetooth LE protocol stack.
- Bluetooth Packet Structure
Explore the Bluetooth BR/EDR and Bluetooth LE packet structures.

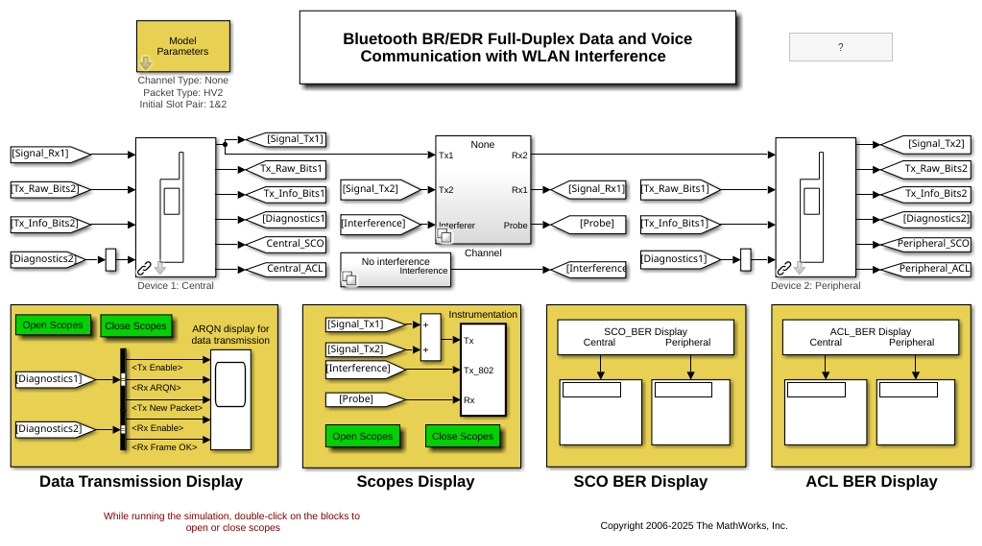

- Configure Bluetooth BR/EDR Channel with WLAN Interference and Pass the Waveform Through Channel
Model a Bluetooth BR/EDR channel with WLAN interference and pass the waveform through the channel.
- Generate Bluetooth LE Waveform and Add RF Impairments
Generate a Bluetooth LE waveform and add radio frequency (RF) impairments.
- Generate and Attenuate Bluetooth BR/EDR Waveform in Industrial Environment
Generate and attenuate Bluetooth BR/EDR waveform in an industrial environment.
