samplealign

Align two data sets containing sequential observations by introducing gaps

Syntax

```[I, J] = samplealign(X, Y) [I, J] = samplealign(X, Y, ...'Band', BandValue, ...) [I, J] = samplealign(X, Y, ...'Width', WidthValue, ...) [I, J] = samplealign(X, Y, ...'Gap', GapValue, ...) [I, J] = samplealign(X, Y, ...'Quantile', QuantileValue, ...) [I, J] = samplealign(X, Y, ...'Distance', DistanceValue, ...) [I, J] = samplealign(X, Y, ...'Weights', WeightsValue, ...) [I, J] = samplealign(X, Y, ...'ShowConstraints', ShowConstraintsValue, ...) [I, J] = samplealign(X, Y, ...'ShowNetwork', ShowNetworkValue, ...) [I, J] = samplealign(X, Y, ...'ShowAlignment', ShowAlignmentValue, ...) ```

Input Arguments

 `X`, `Y` Matrices of data where rows correspond to observations or samples, and columns correspond to features or dimensions. `X` and `Y` can have a different number of rows, but they must have the same number of columns. The first column is the reference dimension and must contain unique values in ascending order. The reference dimension could contain sample indices of the observations or a measurable value, such as time. `BandValue` Either of the following: Scalar. Function specified using `@(z)`, where `z` is the mid-point between a given observation in one data set and a given observation in the other data set. `BandValue` specifies a maximum allowable distance between observations (along the reference dimension only) in the two data sets, thus limiting the number of potential matches between observations in two data sets. If `S` is the value in the reference dimension for a given observation (row) in one data set, then that observation is matched only with observations in the other data set whose values in the reference dimension fall within `S` ± `BandValue`. Then, only these potential matches are passed to the algorithm for further scoring. Default `BandValue` is `Inf`. `WidthValue` Either of the following:Two-element vector, [`U`, `V`]Scalar that is used for both `U` and `V``WidthValue` limits the number of potential matches between observations in two data sets; that is, each observation in `X` is scored to the closest `U` observations in `Y`, and each observation in `Y` is scored to the closest `V` observations in `X`. Then, only these potential matches are passed to the algorithm for further scoring. Closeness is measured using only the first column (reference dimension) in each data set. Default is `Inf` if `'Band'` is specified; otherwise default is `10`. `GapValue` Any of the following:Cell array, {`G`, `H`}, where `G` is either a scalar or a function handle specified using `@(X)`, and `H` is either a scalar or a function handle specified using `@(Y)`. The functions `@(X)` and `@(Y)` must calculate the penalty for each observation (row) when it is matched to a gap in the other data set. The functions `@(X)` and `@(Y)` must return a column vector with the same number of rows as `X` or `Y`, containing the gap penalty for each observation (row).Single function handle specified using `@(Z)`, which is used for both `G` and `H`. The function `@(Z)` must calculate the penalty for each observation (row) in both `X` and `Y` when it is matched to a gap in the other data set. The function `@(Z)` must take as arguments `X` and `Y`. The function `@(Z)` must return a column vector with the same number of rows as `X` or `Y`, containing the gap penalty for each observation (row).Scalar that is used for both `G` and `H`.`GapValue` specifies the position-dependent terms for assigning gap penalties. The calculated value, `GPX`, is the gap penalty for matching observations from the first data set `X` to gaps inserted in the second data set `Y`, and is the product of two terms: `GPX` = `G` * `QMS`. The term `G` takes its value as a function of the observations in `X`. Similarly, `GPY` is the gap penalty for matching observations from `Y` to gaps inserted in `X`, and is the product of two terms: `GPY` = `H` * `QMS`. The term `H` takes its value as a function of the observations in `Y`. By default, the term `QMS` is the 0.75 quantile of the score for the pairs of observations that are potential matches (that is, pairs that comply with the `'Band'` and `'Width'` constraints). Default `GapValue` is `1`. `QuantileValue` Scalar between `0` and `1` that specifies the quantile value used to calculate the term `QMS`, which is used by the `'Gap'` property to calculate gap penalties. Default is `0.75`. `DistanceValue` Function handle specified using `@(R,S)`. The function `@(R,S)` must: Calculate the distance between pairs of observations that are potential matches.Take as arguments, `R` and `S`, matrices that have the same number of rows and columns, and whose paired rows represent all potential matches of observations in `X` and `Y` respectively. Return a column vector of positive values with the same number of elements as rows in `R` and `S`.Default is the Euclidean distance between the pairs.CautionAll columns in `X` and `Y`, including the reference dimension, are considered when calculating distances. If you do not want to include the reference dimension in the distance calculations, use the `'Weight'` property to exclude it. `WeightsValue` Either of the following:Logical row vector with the same number of elements as columns in `X` and `Y`, that specifies columns in `X` and `Y`.Numeric row vector with the same number of elements as columns in `X` and `Y`, that specifies the relative weights of the columns (features).This property controls the inclusion/exclusion of columns (features) or the emphasis of columns (features) when calculating the distance score between observations that are potential matches, that is, when using the `'Distance'` property. Default is a logical row vector with all elements set to `true`.TipUsing a numeric row vector for `WeightsValue` and setting some values to `0` can simplify the distance calculation when the data sets have many columns (features).NoteThe weight values are not considered when using the `'Band'`, `'Width'`, or `'Gap'` property. `ShowConstraintsValue` Controls the display of the search space constrained by the specified `'Band'` and `'Width'` input parameters, thereby giving an indication of the memory required to run the algorithm with the specific `'Band'` and `'Width'` parameters on your data sets. Choices are `true` or `false` (default). `ShowNetworkValue` Controls the display of the dynamic programming network, the match scores, the gap penalties, and the winning path. Choices are `true` or `false` (default). `ShowAlignmentValue` Controls the display of the first and second columns of the `X` and `Y` data sets in the abscissa and the ordinate respectively, of a two-dimensional plot. Choices are `true`, `false` (default), or an integer specifying a column of the `X` and `Y` data sets to plot as the ordinate.

Output Arguments

 `I` Column vector containing indices of rows (observations) in `X` that match to a row (observation) in `Y`. Missing indices indicate that row (observation) is matched to a gap. `J` Column vector containing indices of rows (observations) in `Y` that match to a row (observation) in `X`. Missing indices indicate that row (observation) is matched to a gap.

Description

```[I, J] = samplealign(X, Y)``` aligns the observations in two matrices of data, `X` and `Y`, by introducing gaps. `X` and `Y` are matrices of data where rows correspond to observations or samples, and columns correspond to features or dimensions. `X` and `Y` can have different number of rows, but must have the same number of columns. The first column is the reference dimension and must contain unique values in ascending order. The reference dimension could contain sample indices of the observations or a measurable value, such as time. The `samplealign` function uses a dynamic programming algorithm to minimize the sum of positive scores resulting from pairs of observations that are potential matches and the penalties resulting from the insertion of gaps. Return values `I` and `J` are column vectors containing indices that indicate the matches for each row (observation) in `X` and `Y` respectively.

Tip

If you do not specify return values, `samplealign` does not run the dynamic programming algorithm. Running `samplealign` without return values, but setting the `'ShowConstraints'`, `'ShowNetwork'`, or `'ShowAlignment'` property to `true`, lets you explore the constrained search space, the dynamic programming network, or the aligned observations, without running into potential memory problems.

```[I, J] = samplealign(X, Y, ...'PropertyName', PropertyValue, ...)``` calls `samplealign` with optional properties that use property name/property value pairs. You can specify one or more properties in any order. Each `PropertyName` must be enclosed in single quotation marks and is case insensitive. These property name/property value pairs are as follows:

``` [I, J] = samplealign(X, Y, ...'Band', BandValue, ...)``` specifies a maximum allowable distance between observations (along the reference dimension only) in the two data sets, thus limiting the number of potential matches between observations in the two data sets. If `S` is the value in the reference dimension for a given observation (row) in one data set, then that observation is matched only with observations in the other data set whose values in the reference dimension fall within `S` ± `BandValue`. Then, only these potential matches are passed to the algorithm for further scoring. `BandValue` can be a scalar or a function specified using `@(z)`, where `z` is the mid-point between a given observation in one data set and a given observation in the other data set. Default `BandValue` is `Inf`.

This constraint reduces the time and memory complexity of the algorithm from O(`MN`) to O(sqrt(`MN`)*`K`), where `M` and `N` are the number of observations in `X` and `Y` respectively, and `K` is a small constant such that `K`<<`M` and `K`<<`N`. Adjust `BandValue` to the maximum expected shift between the reference dimensions in the two data sets, that is, between `X`(:,1) and `Y`(:,1).

```[I, J] = samplealign(X, Y, ...'Width', WidthValue, ...)``` limits the number of potential matches between observations in two data sets; that is, each observation in `X` is scored to the closest `U` observations in `Y`, and each observation in `Y` is scored to the closest `V` observations in `X`. Then, only these potential matches are passed to the algorithm for further scoring. `WidthValue` is either a two-element vector, [`U`, `V`] or a scalar that is used for both `U` and `V`. Closeness is measured using only the first column (reference dimension) in each data set. Default is `Inf` if `'Band'` is specified; otherwise default is `10`.

This constraint reduces the time and memory complexity of the algorithm from O(`MN`) to O(sqrt(`MN`)*sqrt(`UV`)), where `M` and `N` are the number of observations in `X` and `Y` respectively, and `U` and `V` are small such that `U`<<`M` and `V`<<`N`.

Note

If you specify both `'Band'` and `'Width'`, only pairs of observations that meet both constraints are considered potential matches and passed to the algorithm for scoring.

Tip

Specify `'Width'` when you do not have a good estimate for the `'Band'` property. To get an indication of the memory required to run the algorithm with specific `'Band'` and `'Width'` parameters on your data sets, run `samplealign`, but do not specify return values and set `'ShowConstraints'` to `true`.

```[I, J] = samplealign(X, Y, ...'Gap', GapValue, ...)``` specifies the position-dependent terms for assigning gap penalties.

`GapValue` is any of the following:

• Cell array, {`G`, `H`}, where `G` is either a scalar or a function handle specified using `@(X)`, and `H` is either a scalar or a function handle specified using `@(Y)`. The functions `@(X)` and `@(Y)` must calculate the penalty for each observation (row) when it is matched to a gap in the other data set. The functions `@(X)` and `@(Y)` must return a column vector with the same number of rows as `X` or `Y`, containing the gap penalty for each observation (row).

• Single function handle specified using `@(Z)`, that is used for both `G` and `H`. The function `@(Z)` must calculate the penalty for each observation (row) in both `X` and `Y` when it is matched to a gap in the other data set. The function `@(Z)` must take as arguments `X` and `Y`. The function `@(Z)` must return a column vector with the same number of rows as `X` or `Y`, containing the gap penalty for each observation (row).

• Scalar that is used for both `G` and `H`.

The calculated value, `GPX`, is the gap penalty for matching observations from the first data set `X` to gaps inserted in the second data set `Y`, and is the product of two terms: `GPX` = `G` * `QMS`. The term `G` takes its value as a function of the observations in `X`. Similarly, `GPY` is the gap penalty for matching observations from `Y` to gaps inserted in `X`, and is the product of two terms: `GPY` = `H` * `QMS`. The term `H` takes its value as a function of the observations in `Y`. By default, the term `QMS` is the 0.75 quantile of the score for the pairs of observations that are potential matches (that is, pairs that comply with the `'Band'` and `'Width'` constraints).

If `G` and `H` are positive scalars, then `GPX` and `GPY` are independent of the observation where the gap is being inserted.

Default `GapValue` is `1`, that is, both `G` and `H` are `1`, which indicates that the default penalty for gap insertions in both sequences is equivalent to the quantile (set by the `'Quantile'` property, default = `0.75`) of the score for the pairs of observations that are potential matches.

Note

`GapValue` defaults to a relatively safe value. However, the success of the algorithm depends on the fine tuning of the gap penalties, which is application dependent. When the gap penalties are large relative to the score of the correct matches, `samplealign` returns alignments with fewer gaps, but with more incorrectly aligned regions. When the gap penalties are smaller, the output alignment contains longer regions with gaps and fewer matched observations. Set `'ShowNetwork'` to `true` to compare the gap penalties to the score of matched observations in different regions of the alignment.

```[I, J] = samplealign(X, Y, ...'Quantile', QuantileValue, ...)``` specifies the quantile value used to calculate the term `QMS`, which is used by the `'Gap'` property to calculate gap penalties. `QuantileValue` is a scalar between `0` and `1`. Default is `0.75`.

Tip

Set `QuantileValue` to an empty array (`[]`) to make the gap penalties independent of `QMS`, that is, `GPX` and `GPY` are functions of only the `G` and `H` input parameters respectively.

```[I, J] = samplealign(X, Y, ...'Distance', DistanceValue, ...)``` specifies a function to calculate the distance between pairs of observations that are potential matches. `DistanceValue` is a function handle specified using `@(R,S)`. The function `@(R,S)` must take as arguments, `R` and `S`, matrices that have the same number of rows and columns, and whose paired rows represent all potential matches of observations in `X` and `Y` respectively. The function `@(R,S)` must return a column vector of positive values with the same number of elements as rows in `R` and `S`. Default is the Euclidean distance between the pairs.

Caution

All columns in `X` and `Y`, including the reference dimension, are considered when calculating distances. If you do not want to include the reference dimension in the distance calculations, use the `'Weight'` property to exclude it.

```[I, J] = samplealign(X, Y, ...'Weights', WeightsValue, ...)``` controls the inclusion/exclusion of columns (features) or the emphasis of columns (features) when calculating the distance score between observations that are potential matches, that is when using the `'Distance'` property. `WeightsValue` can be a logical row vector that specifies columns in `X` and `Y`. `WeightsValue` can also be a numeric row vector with the same number of elements as columns in `X` and `Y`, that specifies the relative weights of the columns (features). Default is a logical row vector with all elements set to `true`.

Tip

Using a numeric row vector for `WeightsValue` and setting some values to `0` can simplify the distance calculation when the data sets have many columns (features).

Note

The weight values are not considered when computing the constrained alignment space, that is when using the `'Band'` or `'Width'` properties, or when calculating the gap penalties, that is when using the `'Gap'` property.

```[I, J] = samplealign(X, Y, ...'ShowConstraints', ShowConstraintsValue, ...)``` controls the display of the search space constrained by the input parameters `'Band'` and `'Width'`, giving an indication of the memory required to run the algorithm with specific `'Band'` and `'Width'` on your data sets. Choices are `true` or `false` (default).

```[I, J] = samplealign(X, Y, ...'ShowNetwork', ShowNetworkValue, ...)``` controls the display of the dynamic programming network, the match scores, the gap penalties, and the winning path. Choices are `true` or `false` (default).

```[I, J] = samplealign(X, Y, ...'ShowAlignment', ShowAlignmentValue, ...)``` controls the display of the first and second columns of the `X` and `Y` data sets in the abscissa and the ordinate respectively, of a two-dimensional plot. Links between all the potential matches that meet the constraints are displayed, and the matches belonging to the output alignment are highlighted. Choices are `true`, `false` (default), or an integer specifying a column of the `X` and `Y` data sets to plot as the ordinate.

Examples

collapse all

Create two signals with noisy Gaussian peaks.

```rng('default') peakLoc = [30 60 90 130 150 200 230 300 380 430]; peakInt = [7 1 3 10 3 6 1 8 3 10]; time = 1:450; comp = exp(-(bsxfun(@minus,time,peakLoc')./5).^2); sig_1 = (peakInt + rand(1,10)) * comp + rand(1,450); sig_2 = (peakInt + rand(1,10)) * comp + rand(1,450);```

Define a nonlinear warping function.

```wf = @(t) 1 + (t<=100).*0.01.*(t.^2) + (t>100).*... (310+150*tanh(t./100-3));```

Warp the second signal to distort it.

`sig_2 = interp1(time,sig_2,wf(time),'pchip');`

Align the observations between the two signals by introducing gaps.

```[i,j] = samplealign([time;sig_1]',[time;sig_2]',... 'weights',[0,1],'band',35,'quantile',.5);```

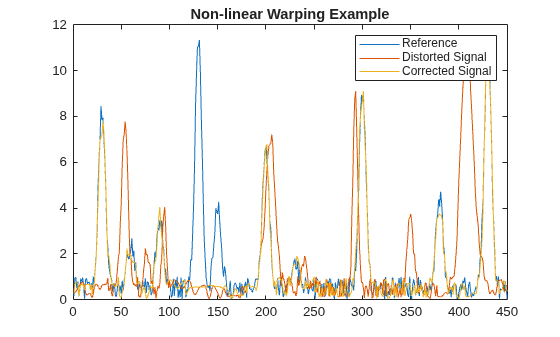

Plot the reference signal, distorted signal, and warped (corrected) signal.

```figure sig_3 = interp1(time,sig_2,interp1(i,j,time,'pchip'),'pchip'); plot(time,sig_1,time,sig_2,time,sig_3) legend('Reference','Distorted Signal','Corrected Signal') title('Non-linear Warping Example')```

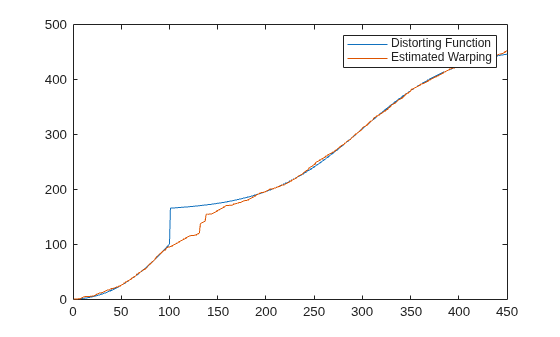

Plot the real and the estimated warping functions.

```figure plot(time,wf(time),time,interp1(j,i,time,'pchip')) legend('Distorting Function','Estimated Warping')```

References

[1] Myers, C.S. and Rabiner, L.R. (1981). A comparative study of several dynamic time-warping algorithms for connected word recognition. The Bell System Technical Journal 60:7, 1389–1409.

[2] Sakoe, H. and Chiba, S. (1978). Dynamic programming algorithm optimization for spoken word recognition. IEEE Trans. Acoustics, Speech and Signal Processing ASSP-26(1), 43–49.

Version History

Introduced in R2007b
