jcampread

Read JCAMP-DX-formatted files

Syntax

JCAMPStruct = jcampread(myFile)

Description

JCAMPStruct = jcampread(myFile) reads data from myFile, a JCAMP-DX-formatted file, and returns the data in a MATLAB^® structure.

Examples

Read and Plot Mass Spectrum Data from a JCAMP-DX File in MATLAB

Read the data from the JCAMP-DX-formatted file, ISAS_MS1.DX, provided with the software. The data came from http://www.jcamp-dx.org/testdata.html.

jcampStruct = jcampread('ISAS_MS1.DX')

jcampStruct = struct with fields:
        Title: '2-Chlorphenol'
     DataType: 'MASS SPECTRUM'
    DataClass: 'PEAKTABLE'
       Origin: 'H. Mayer, ISAS Dortmund'
        Owner: 'COPYRIGHT (C) 1993 by ISAS Dortmund, FRG'
       Blocks: [1×1 struct]
        Notes: {8×2 cell}

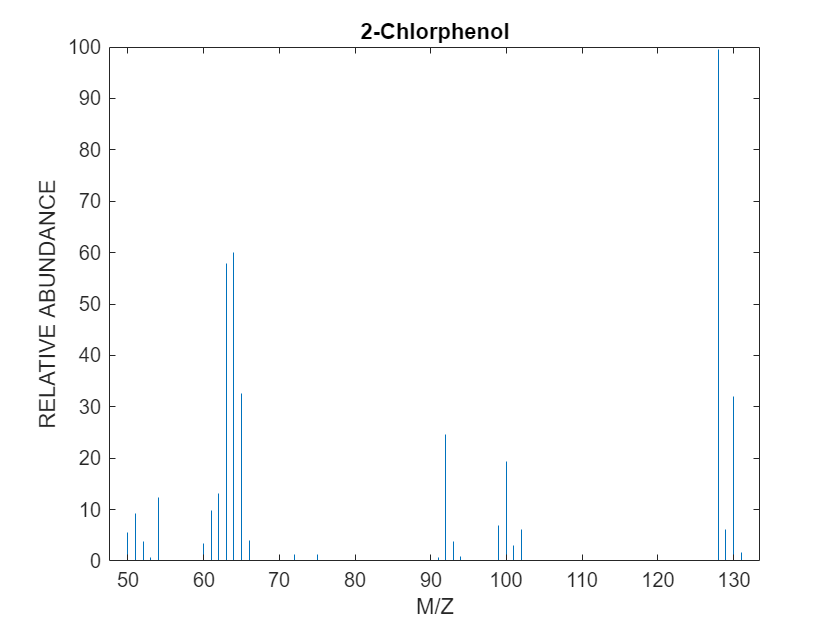

Plot the mass spectrum.


stem(jcampStruct.Blocks.XData,jcampStruct.Blocks.YData, ".",MarkerEdgeColor="w");
title(jcampStruct.Title);
xlabel(jcampStruct.Blocks.XUnits);
ylabel(jcampStruct.Blocks.YUnits);

Input Arguments

myFile — Input file

character array | character vector | string scalar

Input file, specified as one of these options.

• Character vector or string scalar specifying a file name, a path and file name, or a URL pointing to a file. The referenced file is a JCAMP-DX-formatted file (ASCII text file). If you specify only a file name, that file must be on the MATLAB search path or in the current folder.

• MATLAB character array that contains the text of a JCAMP-DX-formatted file.

JCAMP-DX is a file format for infrared, NMR, and mass spectrometry data from the Joint Committee on Atomic and Molecular Physical Data (JCAMP). jcampread supports reading data from files saved with Versions 4.24, 5, or 6 of the JCAMP-DX format. For more information about the JCAMP-DX format, see http://www.jcamp-dx.org/testdata.html.

Data Types: char | string

Output Arguments

JCAMPStruct — Information extracted from JCAMP-DX-formatted file

structure

Information extracted from the JCAMP-DX-formatted file, returned as a MATLAB structure. JCAMPStruct contains these fields.

Field	Description
Title	Title of the dataset
DataType	Type of data contained in the file
DataClass (version 5.00 and above)	Class of data
Origin	Origin of the data
Owner	Owner of the data
Blocks	Array of structures
Notes	Additional comments

The Blocks field of the structure is an array of structures corresponding to each set of data in the file. These structures have the following fields.

Field	Description
XData	x data values
YData	y data values
ZData (if multiple blocks)	z data values
XUnits	Units of the x data
YUnits	Units of the y data
ZUnits (if multiple blocks)	Units of the z data
Notes	Additional comments

Data Types: struct

Version History

Introduced before R2006a
