Render heatmap or clustergram



plot(hm_cg_object) renders a heatmap or clustergram of hm_cg_object.


plot(hm_cg_object,hFig) displays a heatmap or clustergram in a MATLAB® figure specified by the figure handle hFig.

hAxes = plot(___) returns the handle to the axes of the heatmap or clustergram figure using any of the input argument combinations from the previous syntaxes.


collapse all

Create a matrix of data.

data = gallery('invhess',20);

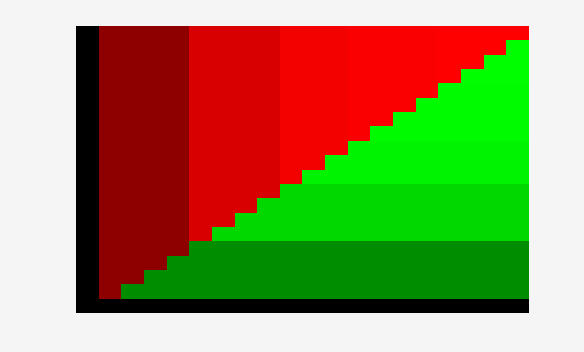

Display a 2-D color heatmap of the data.

hmo = HeatMap(data);
             Standardize: '[column | row | {none}]'
               Symmetric: '[true | false].'
            DisplayRange: 'Scalar.'
                Colormap: []
               ImputeFun: 'string -or- function handle -or- cell array'
            ColumnLabels: 'Cell array of strings, or an empty cell array'
               RowLabels: 'Cell array of strings, or an empty cell array'
      ColumnLabelsRotate: []
         RowLabelsRotate: []
                Annotate: '[on | {off}]'
          AnnotPrecision: []
              AnnotColor: []
       ColumnLabelsColor: 'A structure array.'
          RowLabelsColor: 'A structure array.'
       LabelsWithMarkers: '[true | false].'
    ColumnLabelsLocation: '[ top | {bottom} ]'
       RowLabelsLocation: '[ {left} | right ]'

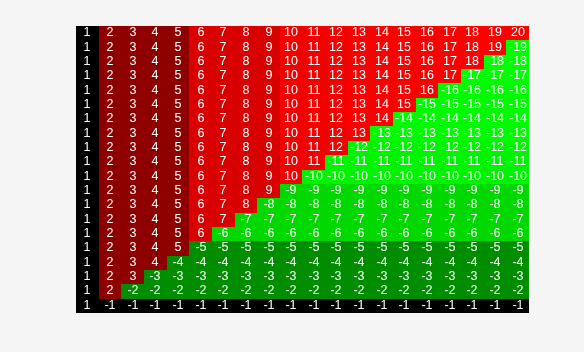

Display the data values in the heatmap.

hmo.Annotate = true;

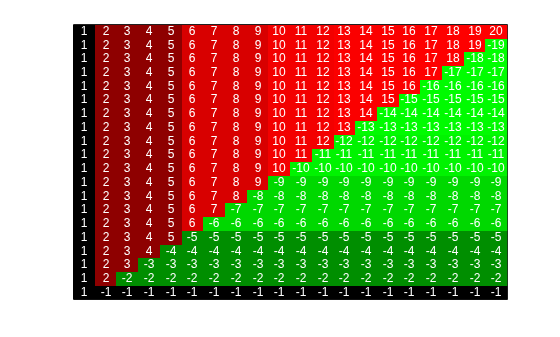

Use the plot function to display the heatmap in another figure specified by the figure handle fH.

fH = figure;
hA = plot(hmo,fH);

Use the returned axes handle hA to specify the axes properties.

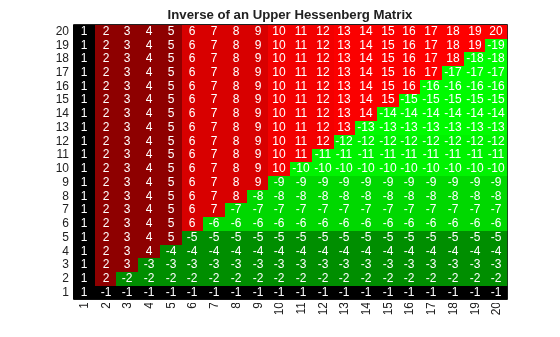

hA.Title.String = 'Inverse of an Upper Hessenberg Matrix';
hA.XTickLabelMode = 'auto';
hA.YTickLabelMode = 'auto';

Input Arguments

collapse all

Heatmap or clustergram object, specified as a HeatMap object or clustergram object.

Handle to a figure to display the heatmap or clustergram, specified as a figure handle.

Output Arguments

collapse all

Axes of the heatmap or clustergram figure, returned as an axes object.

Version History

Introduced in R2009b
