addSensor
R2026bSyntax
Description
multiSensorObj = addSensor(multiSensorObjIn,name,type,tformToRef)name, to
multiSensorObjIn and returns the updated object
multiSensorObj. The function uses tformToRef
to specify the 3-D rigid transformation from the sensor frame of each sensor to the
reference frame.
multiSensorObj = addSensor(multiSensorObjIn,fromSensor,type,tform,toSensor)fromSensor, to the object.
tform specifies the 3-D rigid transformation from the frame of each
new sensor to the frame of an existing sensor specified by
toSensor.
multiSensorObj = addSensor(multiSensorObjIn,name,type,mountingAngles,mountingLocation)mountingAngles and
mountingLocation to specify the mounting angles
[Yaw,Pitch,Roll] in degrees and
mounting location [X,Y,Z] in
meters, of each sensor in the reference frame of the object.
multiSensorObj = addSensor(___,Name=Value)Intrinsics=intrinsics, sets the Intrinsics
argument to a camera intrinsic parameters object.
Examples
Import sensor mounting poses and intrinsic parameters from a YAML file from the Pandaset data set [1] into MATLAB® and store them in a multiSensorParameters object. The Pandaset data set uses a multi-sensor rig consisting of six cameras and two lidar sensors all rigidly mounted on the roof of a vehicle.
Download and Extract Sensor Parameters
Download the YAML file from the Pandaset Devkit [2], and save it to the current directory.
downloadURL = "https://raw.githubusercontent.com/scaleapi/pandaset-devkit/master/docs/static_extrinsic_calibration.yaml"; yamlFileName = "static_extrinsic_calibration.yaml"; websave(yamlFileName,downloadURL);
Read the YAML file using the helperParsePandasetYAML helper function, which returns a structure containing the sensor parameters. The file contains parameters for eight sensors:
Six cameras:
back_camera,front_camera,front_left_camera,front_right_camera,left_camera, andright_cameraTwo lidar sensors:
main_pandar64andfront_gt
Each sensor stores its extrinsic parameters as a rotation quaternion (w, x, y, z) and a translation vector (x, y, z). Camera sensors additionally include intrinsic parameters: a 3-by-3 camera matrix K and distortion coefficients D. The main_pandar64 lidar defines the reference frame as it is mounted at the origin.
data = helperParsePandasetYAML(yamlFileName)
data = struct with fields:
back_camera: [1×1 struct]
front_camera: [1×1 struct]
front_gt: [1×1 struct]
front_left_camera: [1×1 struct]
front_right_camera: [1×1 struct]
left_camera: [1×1 struct]
main_pandar64: [1×1 struct]
right_camera: [1×1 struct]
Add Sensor Mounting Poses and Intrinsic Parameters
Create a multiSensorParameters object to store the sensor mounting poses. In this data set, the extrinsic parameters for each sensor represent a transformation from the reference frame, which is defined by the main_pandar64 lidar sensor, to the frame of that sensor. Inverting the extrinsic parameters provides the transformation from the sensor frame to the reference frame. Use addSensor to add each sensor to the multiSensorParameters object by specifying its transformation to the reference sensor main_pandar64. For the cameras, use the cameraIntrinsicsFromOpenCV function to create cameraIntrinsics objects from their camera matrices and distortion coefficients.
% Get sensor names sensorNames = string(fieldnames(data)); % Create multiSensorParameters object and add the reference sensor first refSensor = "main_pandar64"; multiSensorObj = multiSensorParameters(ReferenceFrame=refSensor); multiSensorObj = addSensor(multiSensorObj,refSensor,"lidar",rigidtform3d()); % Process each remaining sensor for i = 1:length(sensorNames) sensorName = sensorNames(i); if sensorName == refSensor continue end sensorData = data.(sensorName); % Determine sensor type: non-camera sensors in this file are lidar % sensors if contains(sensorName, "camera") sensorType = "camera"; else sensorType = "lidar"; end % Create extrinsic parameters from quaternions and translations, then invert to get % the transformations from the sensor frame to the reference frame quat = [sensorData.qw,sensorData.qx,sensorData.qy,sensorData.qz]; trvec = [sensorData.tx,sensorData.ty,sensorData.tz]; extrinsics = se3(quat,"quat",trvec); tformTRef = inv(extrinsics); % Add each sensor to the multiSensorParameters object if sensorType == "camera" % Extract intrinsic parameters intrinsicsMatrix = reshape(sensorData.K,3,3)'; distortionCoefficients = sensorData.D; % All cameras have the same image resolution imageSize = [1080 1920]; % Create cameraIntrinsics object camIntrinsics = cameraIntrinsicsFromOpenCV(intrinsicsMatrix,distortionCoefficients,imageSize); % Add camera with intrinsics multiSensorObj = addSensor(multiSensorObj,sensorName,sensorType,tformTRef,refSensor, ... Intrinsics=camIntrinsics); else % Add sensor without intrinsics multiSensorObj = addSensor(multiSensorObj,sensorName,sensorType,tformTRef,refSensor); end end

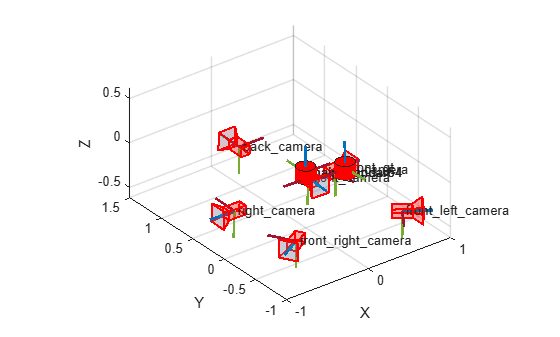

Visualize the sensor mounting configuration in the reference frame main_pandar64.
plot(multiSensorObj, ShowFrameAxisLabels=false);
hold off
Change Reference Frame to Vehicle Coordinate System
For automated driving applications, the vehicle coordinate system follows the ISO 8855 convention: the origin is on the ground directly below the midpoint of the rear axle, with the x-axis pointing forward, y-axis pointing left, and z-axis pointing up. In the Pandar64 reference frame used by your multiSensorParameters object,
, the x-axis points to the left of the vehicle and the y-axis points backward, which corresponds to a 90-degree rotation about the z-axis relative to the vehicle frame. The Pandar64 lidar sensor is mounted on the roof of the vehicle, approximately 0.36 m forward of and 1.85 m above the rear axle center. Use the changeReferenceFrame object function to transform all sensor mounting poses from the Pandar64 frame to the vehicle coordinate system.
% Pandar64 [X, Y, Z] axes correspond to [Y, -X, Z] in the vehicle frame, % which is a 90-degree rotation about the Z-axis. pandarRotation = [0 -1 0; 1 0 0; 0 0 1]; % Pandar64 position, in vehicle coordinates: [forward,left,up] in meters pandarTranslation = [0.36 0 1.85]; pandarToVehicleTransform = se3(pandarRotation,pandarTranslation); multiSensorObj = changeReferenceFrame(multiSensorObj,pandarToVehicleTransform,"vehicle");

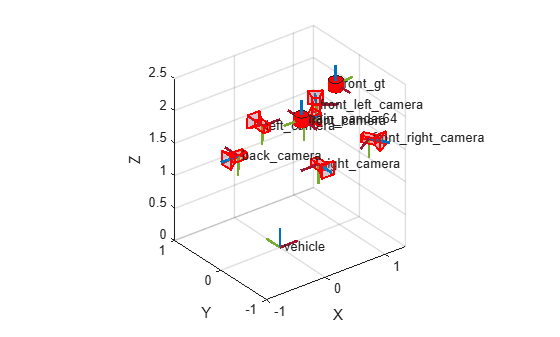

Visualize the sensor mounting configuration in the vehicle coordinate system.
plot(multiSensorObj, ShowFrameAxisLabels=false);
References
[1] Xiao, Pengchuan, Zhenlei Shao, Steven Hao, et al. “PandaSet: Advanced Sensor Suite Dataset for Autonomous Driving.” 2021 IEEE International Intelligent Transportation Systems Conference (ITSC), September 19, 2021, 3095–101. https://doi.org/10.1109/ITSC48978.2021.9565009.
[2] Scale AI. pandaset-devkit. https://github.com/scaleapi/pandaset-devkit.
