getBasePtr

Create MATLAB interface object for OpenCV base class

collapse all in page

    Syntax

    output = getBasePtr(ptr)

    Description

    example

    output = getBasePtr(ptr) creates a MATLAB® interface object for an OpenCV base class pointed by a smart pointer ptr. You can use the interface object to access the public member functions and public attributes of an OpenCV base class directly from MATLAB.

    Examples

    collapse all

    This example uses:

    Open Live Script

    Perform histogram equalization of an image by using the prebuilt MATLAB interface to the OpenCV function cv::CLAHE. The cv::CLAHE function is a base class, and you must create a MATLAB interface object by using the getBasePtr utility function to access the public methods and attributes of the base class.

    Add the MATLAB interface to OpenCV package names to the import list.

    import clib.opencv.*;
import vision.opencv.util.*;

    Read an image into the MATLAB workspace.

    img = imread("cameraman.tif");

    Create the MATLAB interface objects for the OpenCV MatND and InputArray classes to store the input image.

    [inputMat,inputArray] = createMat(img);

    Create the MATLAB interface objects for the OpenCV MatND and OutputArray classes to write the output image returned by the OpenCV function.

    [outputMat,outputArray] = createMat;

    Create a MATLAB interface object to represent the smart pointer of the OpenCV CLAHE class cv::CLAHE.

    ocvPtr = cv.createCLAHE;

    Create a MATLAB interface object for the base class cv::CLAHE.

    basePtr = getBasePtr(ocvPtr);

    Set the value of clip limit to 4.

    basePtr.setClipLimit(4);

    Perform contrast-limited adaptive histogram equalization by using the apply method of the cv::CLAHE base class.

    basePtr.apply(inputArray,outputArray);

    Read the enhanced output image.

    enhanced = getImage(outputArray);

    Display the original input and the enhanced output image.

    figure
imshow(img)
title("Input Image")

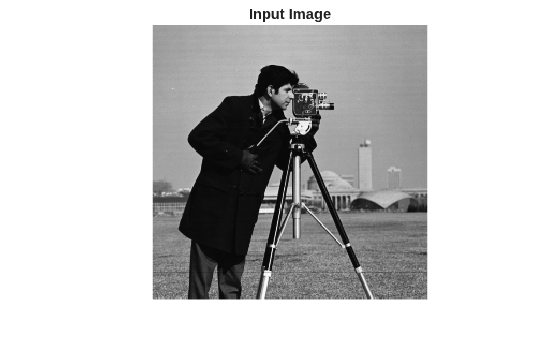

    Figure contains an axes object. The axes object with title Input Image contains an object of type image.

    figure
imshow(enhanced)
title("Enhanced Image")

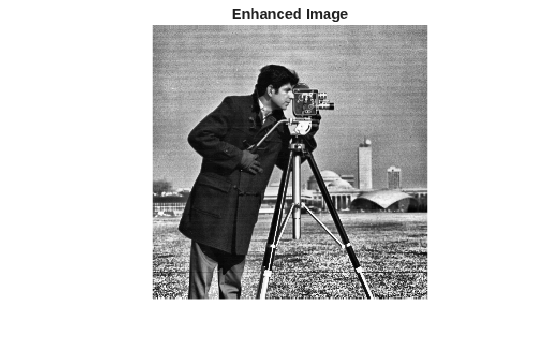

    Figure contains an axes object. The axes object with title Enhanced Image contains an object of type image.

    Input Arguments

    collapse all

    OpenCV smart pointer, specified as a Ptr_cv_<_T> interface object. This MATLAB interface object is a representation of an OpenCV smart pointer cv::Ptr<_T>.

    Output Arguments

    collapse all

    Representation of OpenCV base class, returned as a MATLAB interface object. You can use the object to directly access the public member functions and public attributes of an OpenCV base class.

    Version History

    Introduced in R2021b
