uavMission

UAV mission data

Since R2022b

Description

A uavMission object stores UAV mission data. Use the object functions to add and remove mission items, such as takeoff, waypoints, hover, loiter, and land.

To parse the mission data to fixed-wing and multirotor trajectories, use the fixedwingMissionParser and multirotorMissionParser objects, respectively.

Creation

Syntax

M = uavMission

M = uavMission(PlanFile=file)

M = uavMission(___,Name=Value)

Description

M = uavMission creates an empty UAV mission object.

M = uavMission(PlanFile=file) creates a UAV mission object using a PX4^® Mission JSON file (.plan) or MAVLink waypoints file (.waypoints)

M = uavMission(___,Name=Value) sets additional HomeLocation, InitialYaw, Speed, and Frame properties using one or more name-value arguments. For example, uavMission(InitialYaw=30) creates a UAV mission with an initial yaw angle of 30 degrees.

Input Arguments

file — Mission plan file path

string scalar | character vector

Path to a PX4 Mission JSON file (.plan) or MAVLink waypoints file (.waypoints), specified as a string scalar or character vector.

Example: uavMission(PlanFile="documents/matlab/uavwpts.waypoints")

Data Types: char | string

Properties

HomeLocation — Home location

[0 0 0] (default) | vector of the form [latitude longitude altitude]

UAV Starting location in global frame, specified in the form of [latitude longitude altitude]. Specify latitude and longitude in degrees, and altitude as height above the WGS84 reference ellipsoid in meters.

Example: uavMission(HomeLocation=[42.35 -71.05 10]) sets the home location at a coordinate of 42.35 degrees north, 71.05 degrees west, and at an altitude of 10 meters.

InitialYaw — Initial yaw angle

0 (default) | numeric scalar

Initial yaw angle, which is the angle of the UAV body x-axis relative to north. Specified as a numeric scalar in degrees

Example: uavMission(InitialYaw=45)

Speed — Reference speed

8 (default) | numeric scalar

UAV reference speed, specified as a numeric scalar in meters per second.

Example: uavMission(Speed=5)

Data Types: double

Frame — Mission waypoint reference frame

"Global" (default) | "GlobalRelativeAlt" | "LocalENU" | "LocalNED"

Reference frame of the stored mission waypoints, specified as one of these values:

• "Global" — Each waypoint has the form of [latitude longitude altitude]. latitude and longitude are in degrees. altitude is height above the WGS84 reference ellipsoid in meters.

• "GlobalRelativeAlt" — Each waypoint has the form of [latitude longitude relativeAltitude]. latitude and longitude are in degrees. relativeAltitude is height above the home location that you specified in HomeLocation in meters.

• "LocalENU" — Each waypoint has the form of [east north up], which corresponds to the east, north, and up positions of the waypoint relative to the home location that you specified in HomeLocation. Units are in meters.

• "LocalNED" — Each waypoint has the form of [north east down], which corresponds to the north, east, and down positions of the waypoint relative to the home location that you specified in HomeLocation. Units are in meters.

Example: uavMission(Frame="Global")

Data Types: char | string

NumMissionItems — Number of mission items

Read-only: 0 (default) | nonnegative integer

This property is read-only.

Number of mission items, specified as a nonnegative integer. The NumMissionItems property increases each time a mission item, such as waypoints, loiter, or hover, is added to the mission.

Object Functions

addChangeSpeed	Add change speed mission item
addHover	Add hover mission item
addLand	Add landing mission item
addLoiter	Add loiter mission item
addTakeoff	Add takeoff mission item
addWaypoint	Add waypoint mission item
copy	Copy UAV Mission
removeItem	Remove mission items at specified indices
show	Visualize UAV mission
showdetails	UAV mission data table

Examples

Generate Flight Trajectory for UAV Mission

Create a UAV mission by using the flight plan stored in a .plan file and show the mission.

mission = uavMission(PlanFile="flight.plan");
show(mission);
axis equal

Create parsers for a multirotor UAV and a fixed-wing UAV.

mrmParser = multirotorMissionParser(TransitionRadius=2,TakeoffSpeed=2);
fwmParser = fixedwingMissionParser(TransitionRadius=15,TakeoffPitch=10);

Generate one flight trajectory using each parser.

mrmTraj = parse(mrmParser,mission);
fwmTraj = parse(fwmParser,mission);

Visualize the waypoints, flight trajectory and body frames for each UAV.

figure
show(mrmTraj,FrameSize=20,NumSamples=75);

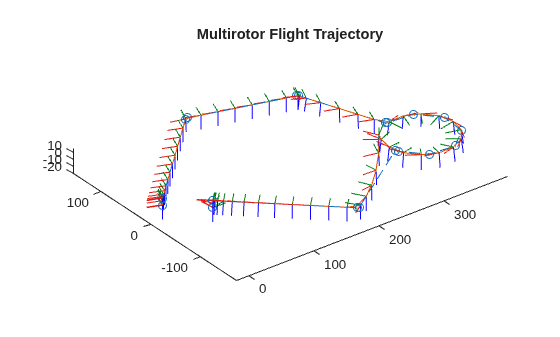

title("Multirotor Flight Trajectory")
axis equal

figure
show(fwmTraj,FrameSize=20,NumSamples=75);

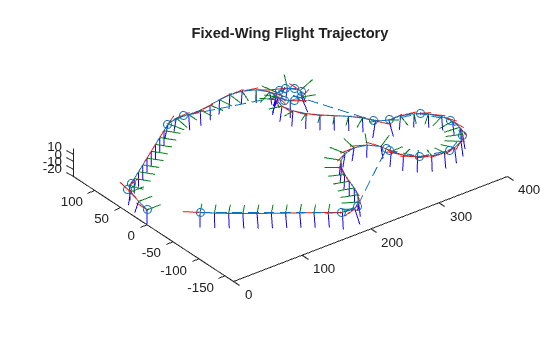

title("Fixed-Wing Flight Trajectory")
axis equal

Plot the mission, waypoints, flight trajectory and UAV body frames in the same plot for each UAV.

figure
show(mission);
hold on
show(mrmTraj,FrameSize=20,NumSamples=75);
hold off

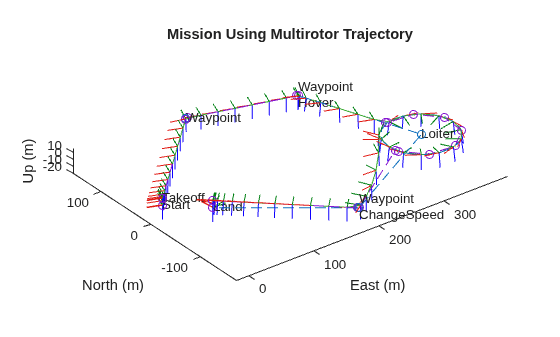

title("Mission Using Multirotor Trajectory")
axis equal

show(mission);
hold on
show(fwmTraj,FrameSize=20,NumSamples=75);
hold off

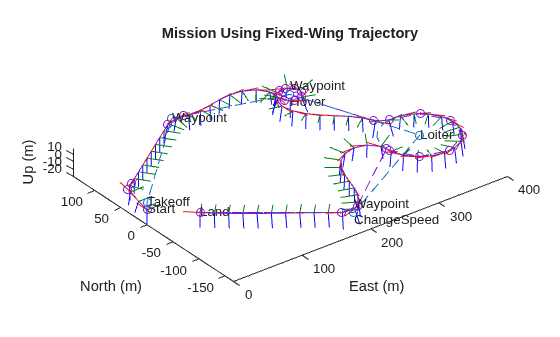

title("Mission Using Fixed-Wing Trajectory")
axis equal

Create UAV Mission Manually

Create a UAV mission object with a home location at the origin of the local ENU coordinate frame and an initial speed of 5 meters per second.

m = uavMission(Frame="LocalENU",HomeLocation=[0 0 0],Speed=5)

m =
  uavMission with properties:

       HomeLocation: [0 0 0]
         InitialYaw: 0
              Frame: "LocalENU"
              Speed: 5
    NumMissionItems: 0

Add a takeoff mission item to the mission with an altitude of 25 meters, pitch of 15 degrees, and yaw of 0 degrees.

addTakeoff(m,20,Pitch=15,Yaw=0);

Add two waypoint mission items to the mission. Between the two waypoints, increase the speed of the UAV to 20 meters per second. After the second waypoint, reduce the speed of the UAV back to 5 meters per second.

addWaypoint(m,[10 0 30]);
addChangeSpeed(m,20)
addWaypoint(m,[20 0 40]);
addChangeSpeed(m,5)
addWaypoint(m,[30 0 50])

Add loiter and hover mission items to the mission, specifying for the UAV to loiter and hover around the second waypoint at a radius of 50 meters for 20 seconds each.

addLoiter(m,[40 0 60],10,20);
addHover(m,[50 0 70],10,20);

Add a landing mission item to the mission to land the UAV.

addLand(m,[70 0 0],Yaw=0);

Show the mission item data table.

showdetails(m)

ans=9×17 table
    Idx    Timestamp     MissionType     ParameterName1    ParameterValue1    ParameterName2    ParameterValue2    ParameterName3    ParameterValue3    ParameterName4    ParameterValue4      ParameterName5      ParameterValue5    ParameterName6    ParameterValue6    ParameterName7    ParameterValue7
    ___    _________    _____________    ______________    _______________    ______________    _______________    ______________    _______________    ______________    _______________    __________________    _______________    ______________    _______________    ______________    _______________

     1        NaN       "Takeoff"          "Altitude"            20              "Pitch"               15              "Yaw"                 0             ""                   NaN          ""                          NaN                ""                NaN                ""                NaN
     2        NaN       "Waypoint"         "X"                   10              "Y"                    0              "Z"                  30             "Yaw"                NaN          "AcceptanceRadius"          NaN                ""                NaN                ""                NaN
     3        NaN       "ChangeSpeed"      "Speed"               20              ""                   NaN              ""                  NaN             ""                   NaN          ""                          NaN                ""                NaN                ""                NaN
     4        NaN       "Waypoint"         "X"                   20              "Y"                    0              "Z"                  40             "Yaw"                NaN          "AcceptanceRadius"          NaN                ""                NaN                ""                NaN
     5        NaN       "ChangeSpeed"      "Speed"                5              ""                   NaN              ""                  NaN             ""                   NaN          ""                          NaN                ""                NaN                ""                NaN
     6        NaN       "Waypoint"         "X"                   30              "Y"                    0              "Z"                  50             "Yaw"                NaN          "AcceptanceRadius"          NaN                ""                NaN                ""                NaN
     7        NaN       "Loiter"           "X"                   40              "Y"                    0              "Z"                  60             "Radius"              10          "Duration"                   20                ""                NaN                ""                NaN
     8        NaN       "Hover"            "X"                   50              "Y"                    0              "Z"                  70             "Radius"              10          "Duration"                   20                ""                NaN                ""                NaN
     9        NaN       "Land"             "X"                   70              "Y"                    0              "Z"                   0             "Yaw"                  0          ""                          NaN                ""                NaN                ""                NaN

Remove the hover action at index 7, and then add another waypoint at index 8 after the hover item moves to index 7. Show the mission details table again to see the changes.

removeItem(m,7);
addWaypoint(m,[65 0 70],InsertAtRow=8);
showdetails(m)

ans=9×17 table
    Idx    Timestamp     MissionType     ParameterName1    ParameterValue1    ParameterName2    ParameterValue2    ParameterName3    ParameterValue3    ParameterName4    ParameterValue4      ParameterName5      ParameterValue5    ParameterName6    ParameterValue6    ParameterName7    ParameterValue7
    ___    _________    _____________    ______________    _______________    ______________    _______________    ______________    _______________    ______________    _______________    __________________    _______________    ______________    _______________    ______________    _______________

     1        NaN       "Takeoff"          "Altitude"            20              "Pitch"               15              "Yaw"                 0             ""                   NaN          ""                          NaN                ""                NaN                ""                NaN
     2        NaN       "Waypoint"         "X"                   10              "Y"                    0              "Z"                  30             "Yaw"                NaN          "AcceptanceRadius"          NaN                ""                NaN                ""                NaN
     3        NaN       "ChangeSpeed"      "Speed"               20              ""                   NaN              ""                  NaN             ""                   NaN          ""                          NaN                ""                NaN                ""                NaN
     4        NaN       "Waypoint"         "X"                   20              "Y"                    0              "Z"                  40             "Yaw"                NaN          "AcceptanceRadius"          NaN                ""                NaN                ""                NaN
     5        NaN       "ChangeSpeed"      "Speed"                5              ""                   NaN              ""                  NaN             ""                   NaN          ""                          NaN                ""                NaN                ""                NaN
     6        NaN       "Waypoint"         "X"                   30              "Y"                    0              "Z"                  50             "Yaw"                NaN          "AcceptanceRadius"          NaN                ""                NaN                ""                NaN
     7        NaN       "Hover"            "X"                   50              "Y"                    0              "Z"                  70             "Radius"              10          "Duration"                   20                ""                NaN                ""                NaN
     8        NaN       "Waypoint"         "X"                   65              "Y"                    0              "Z"                  70             "Yaw"                NaN          "AcceptanceRadius"          NaN                ""                NaN                ""                NaN
     9        NaN       "Land"             "X"                   70              "Y"                    0              "Z"                   0             "Yaw"                  0          ""                          NaN                ""                NaN                ""                NaN

Visualize the mission.

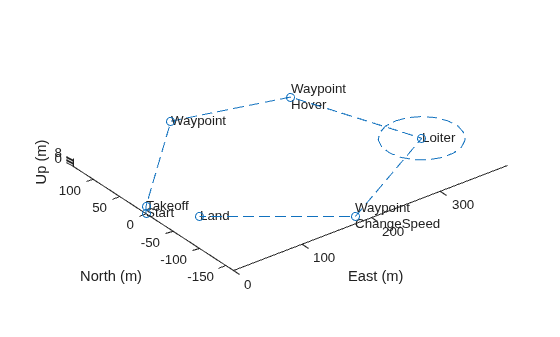

show(m);
axis equal

Execute Coverage Plan Using UAV Mission

Initialize the settings to use for the coverage planner, coverage space, and mission. Set a coverage width to 65 meters, the region as polygon vertices, takeoff and landing locations, the UAV elevation during flight to 150 meters, and a geocenter.

coverageWidth = 65;
region = [-210 130; 10 130; 10 20; 110 20;
          110 -130; -140 -130; -140 -20; -210 -20];
takeoff = [-250 150 0];
landing = [0 -200 0];
uavElevation = 150;
geocenter = [-45 71 0];

Create the coverage space with those UAV coverage space settings.

cs = uavCoverageSpace(Polygons=region, ...
                      UnitWidth=coverageWidth, ...
                      ReferenceHeight=uavElevation, ...
                      ReferenceLocation=geocenter);

cs.show;

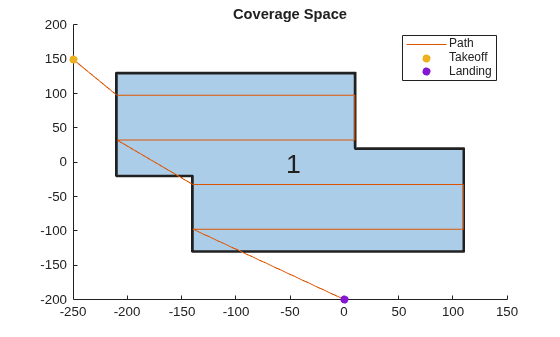

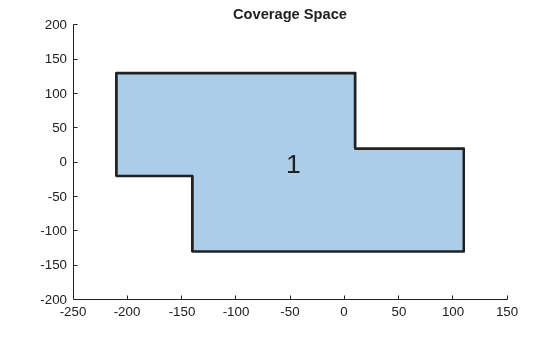

title("Coverage Space")

Create a coverage planner for the coverage space and plan the coverage path with the specified takeoff and landing locations.

cp = uavCoveragePlanner(cs);
[waypoints,solnInfo] = cp.plan(takeoff,landing);

Plot the waypoints, and the takeoff and landing locations on the coverage space.

hold on
plot(waypoints(:,1),waypoints(:,2))
scatter(takeoff(1),takeoff(2),"filled")
scatter(landing(1),landing(2),"filled")
legend("","Path","Takeoff","Landing")
hold off

Export the waypoints to a waypoints file and create a UAV mission from that file with a speed of 10 meters per second and an initial yaw of 90 degrees.

exportWaypointsPlan(cp,solnInfo,"customCoverage.waypoints");
mission = uavMission(PlanFile="customCoverage.waypoints",Speed=10,InitialYaw=90);

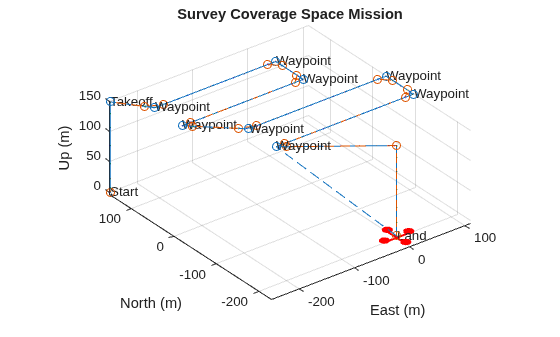

Use the exampleHelperSimulateUAVMission helper function to visualize the UAV mission with a simulation time of 60 seconds.

exampleHelperSimulateUAVMission(mission,geocenter)

Version History

Introduced in R2022b
