sendmsg

Send MAVLink message

collapse all in page

Syntax

sendmsg(mavlink,msg)
sendmsg(mavlink,msg,client)

Description

sendmsg(mavlink,msg) sends a message to all connected MAVLink clients in the mavlinkio object.

example

sendmsg(mavlink,msg,client) sends a message to the MAVLink client specified as a mavlinkclient object. If the client is not connected, no message is sent.

Examples

collapse all

Open Live Script

Create a MAVLink dialect object using the common.xml file.

dialect = mavlinkdialect("common.xml");

Create a local MAVLink client object that represents a simulated UAV. Specify these options:

  • MAVLink message definition — dialect

  • MAVLink system ID — 1

  • MAVLink component ID — 1

  • MAVLink component type — MAV_TYPE_QUADROTOR

  • MAVLink autopilot type — MAV_AUTOPILOT_GENERIC

uavClient = mavlinkio(dialect,SystemID=1,ComponentID=1,AutopilotType="MAV_AUTOPILOT_GENERIC",ComponentType="MAV_TYPE_QUADROTOR");

Connect the local simulated UAV to a random open UDP port by using the connect object function.

connect(uavClient,"UDP");

List all MAVLink clients that are connected to the simulated UAV by using the listClients object function. The output contains only the simulated UAV, which shows that no other MAVLink client is connected to the simulated UAV.

listClients(uavClient)
ans=1×4 table
    SystemID    ComponentID       ComponentType             AutopilotType
    ________    ___________    ____________________    _______________________

       1             1         "MAV_TYPE_QUADROTOR"    "MAV_AUTOPILOT_GENERIC"

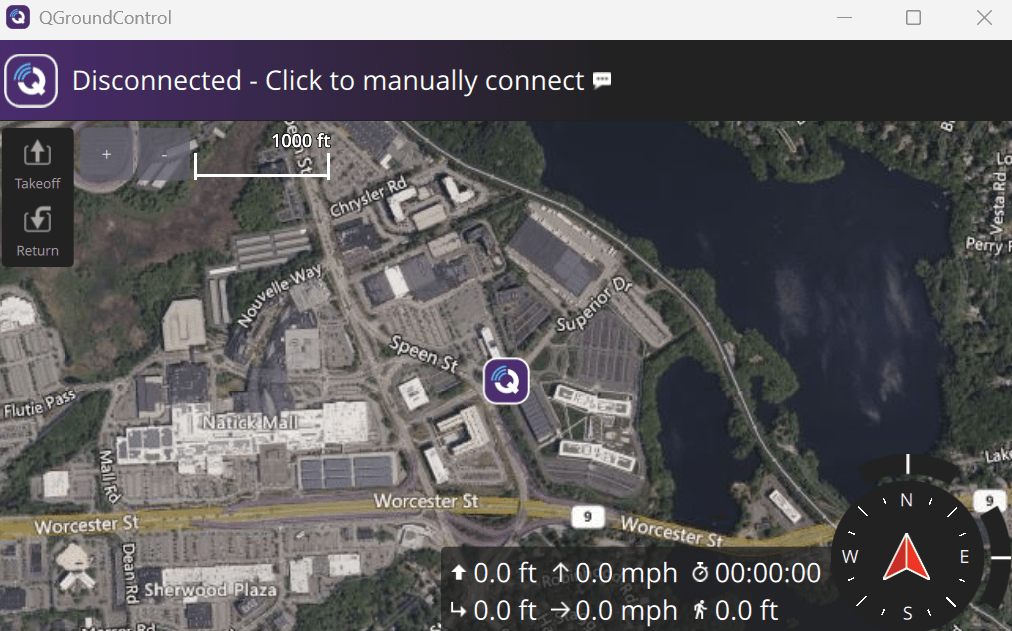

Launch QGroundControl.

To establish a connection with QGroundControl, first create a blank heartbeat message by using the createmsg object function.

heartbeat = createmsg(dialect,"HEARTBEAT");

Assign the component type and autopilot type of the simulated UAV, and the system status, to the heartbeat message fields.

heartbeat.Payload.type(:) = enum2num(dialect,MAV_TYPE=uavClient.LocalClient.ComponentType);
heartbeat.Payload.autopilot(:) = enum2num(dialect,MAV_AUTOPILOT=uavClient.LocalClient.AutopilotType);
heartbeat.Payload.system_status(:) = enum2num(dialect,MAV_STATE="MAV_STATE_STANDBY");

Create a timer callback function. Configure the callback function to send the heartbeat message to QGroundControl through a UDP connection using the sendudpmsg object function.

localHost = "127.0.0.1";
qgcPort = 14550;
heartBeatTimerFunction = @(~,~)sendudpmsg(uavClient,heartbeat,localHost,qgcPort);

Create a timer object with a fixed rate execution mode, period of 1 second, and the timer callback function.

heartbeatTimer = timer(ExecutionMode="fixedRate",Period=1,TimerFcn=heartBeatTimerFunction);

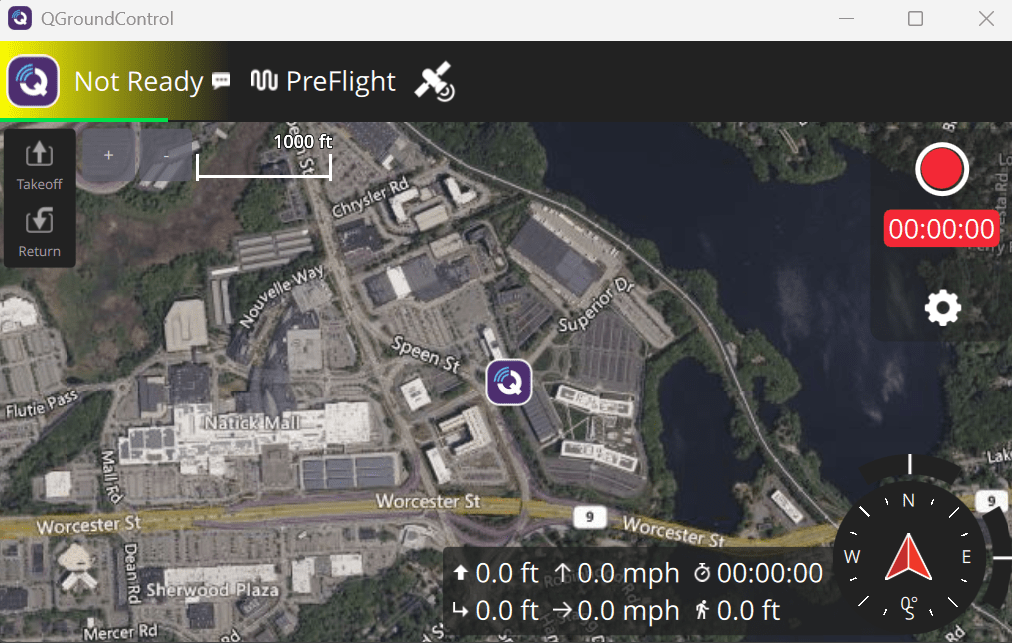

Start the timer object. The local simulated UAV broadcasts the heartbeat message at 1 Hz, and QGroundControl connects to the simulated UAV.

start(heartbeatTimer)

List the MAVLink clients again to verify that QGroundControl is now connected. The output shows that QGroundControl is a connected MAVLink client with a component type of MAV_TYPE_GCS.

listClients(uavClient)

Once you have finished running the example, stop and delete the timer object to end the connection.

stop(heartbeatTimer)
delete(heartbeatTimer)

Input Arguments

collapse all

MAVLink client connection, specified as a mavlinkio object.

MAVLink message, specified as a structure with the fields:

  • MsgID: Positive integer for message ID.

  • Payload: Structure containing fields for the specific message definition.

To create a blank message, use the createmsg with a mavlinkdialect object.

MAVLink client information, specified as a mavlinkclient object.

Version History

Introduced in R2019a
