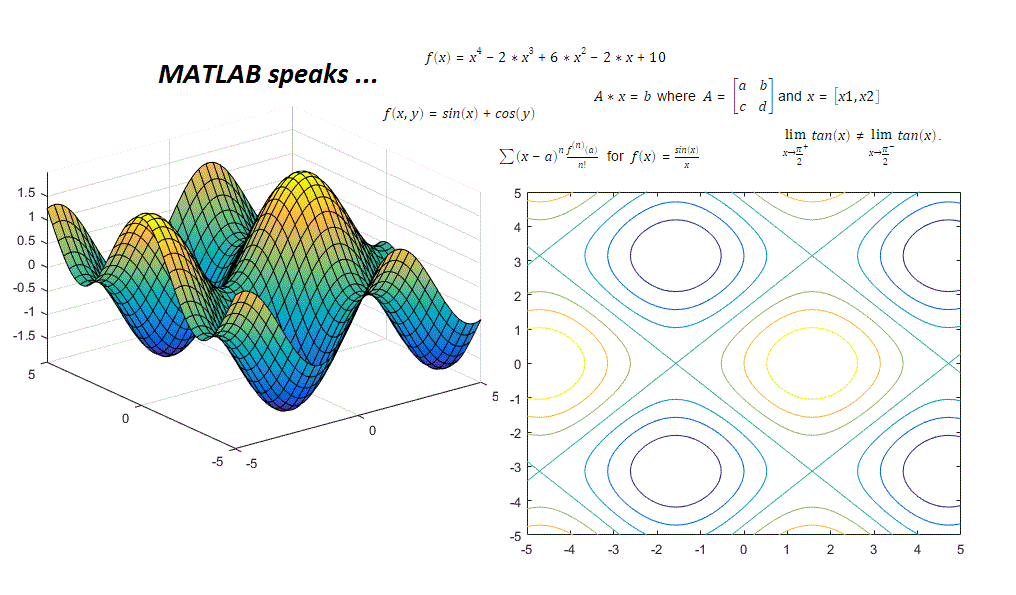

This example provides an overview of the Symbolic Math Toolbox which offers a complete set of tools for computational and analytical mathematics.
This example includes
Variables, Expressions, Functions and Equations
Substitution and Solving
Simplification and Manipulation
Calculus (Differentiation, Integration, Limits, Series)
pi/6 + pi/4
ans = 1.3090
sym(pi/6) + sym(pi/4)
vpa(pi/6) + vpa(pi/4)
Symbolic variables can be used in mathematical expressions, functions and equations including trigonometric, logarithmic, exponential, and special functions. You can create symbolic expressions and perform mathematical calculations on them.
syms x y log(x) + exp(y)
You can also create piecewise functions.
y(x) = piecewise(x<0, -1, x>0, 1)
Create and evaluate Create Symbolic Functions. Find the value of
f at .
syms f(x) f(x) = x^4-2*x^3+6*x^2-2*x+10
Find the intersection between lines and using
solve. Equate the lines using the == operator.
syms y1 y2 y1 = x+3; y2 = 3*x; solve(y1 == y2)
assume on symbolic variables. There are 4 solutions to , two real and two complex. Assuming that is real and , there is only one solution.
syms x solve(x^4 == 1)
assume(x,'real') assumeAlso( x > 0) assumptions(x)
solve(x^4 == 1)
The Symbolic Math Toolbox supports evaluation of mathematical functions by substituting for any part of an expression using
subs. You can substitute numeric values, other symbolic variables or expressions, vectors, or matrices. The Symbolic Math Toolbox supports the solving of equations and systems of equations using
solve. It supports solving multivariate equations, solving inequalities and solving with assumptions. Solutions can be found symbolically or numerically with high precision by using variable-precision arithmetic.
Make substitutions with your symbolic variables. Substitute into
syms x xo subs(x^2+1,x,xo-1)
Substitute multiple values. For example, evaluate by substituting .
syms a b c subs(cos(a) + sin(b) - exp(2*c), [a b c], [pi/2 pi/4 -1])
Create and solve equations. Find the zeros of .
solve(9*x^2 - 1 == 0)
Solve the general quadratic equation and use subs to evaluate that solution for .
eqn = a*x^2 + b*x + c == 0; sol = solve(eqn)
subs(sol,[a b c],[9 0 -1])

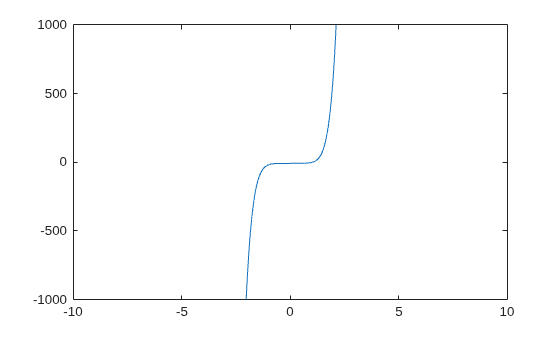

Solve equations symbolically or with variable-precision arithmetic when exact results or high precision is needed. The graph of is very flat near its root.
syms x f(x) assume(x>0) f(x) = 6*x^7-2*x^6+3*x^3-8; fplot(f) xlim([-10 10]) ylim([-1e3 1e3])
doubleSol = roots([6 -2 0 0 3 0 0 -8]) % double-precision
doubleSol = 7×1 complex 1.0240 + 0.0000i 0.7652 + 0.8319i 0.7652 - 0.8319i -0.8808 + 0.5043i -0.8808 - 0.5043i -0.2297 + 0.9677i -0.2297 - 0.9677i
symsSol = solve(f) % exact. The roots object stores the zeros for symbolic computations
vpaSol = vpasolve(f) % variable-precision
The Symbolic Math Toolbox supports the Formula Manipulation and Simplification of mathematical functions. Most mathematical expressions can be represented in different, but mathematically equivalent forms and the Symbolic Math Toolbox supports a number of operations, including factoring or expanding expressions, combining terms, rewriting or rearranging expressions, and simplification based on assumptions.
Perform polynomial multiplication and simplify the results, show that simplifies to .
simplify((x - 1)*(x + 1)*(x^2 + x + 1)*(x^2 + 1)*(x^2 - x + 1)*(x^4 - x^2 + 1))
Apply trigonometric identities to simplifications, for example .
combine(2*sin(x)*cos(x) + (1- cos(2*x))/2 + cos(x)^2,'sincos')
Factor or expand multivariate polynomials.
syms x y factor(y^6-x^6)
f(x) = (x^3 + 7); expand(f(y-1))
Find the functional composition .
f(x) = sqrt(log(x)); g(x) = sqrt(1-x); h = compose(g,f,x)
The Symbolic Math Toolbox has a full set of calculus tools for applied mathematics. It can perform multivariate symbolic integration and differentiation. It can generate, manipulate, and perform calculations with series.
Find the derivative of .
Find the derivative of using the chain rule.
Find the indefinite integral for .
Find the definite integral for from to .
Show that at by computing the Taylor series expansion for around the point .
syms x T = taylor(sin(x)/x)

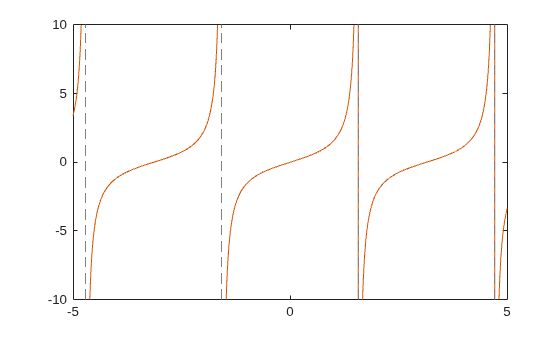

Show that is discontinuous at by showing that the left and right limits are not equal. .
The Symbolic Math Toolbox can analytically solve systems of Solve a System of Differential Equations using
Solve the first order ODE .
syms a b y(x) dsolve(diff(y) == -a*y)
Solve the same ODE with the initial condition .
Solve the system of coupled first order ODEs and .
syms x(t) y(t) z = dsolve(diff(x) == y, diff(y) == -x); disp([z.x;z.y])
The Symbolic Math Toolbox can work with symbolic vectors and matrices. It can compute
eig of symbolic matrices.
Perform matrix multiplication where and
syms a b c d syms x1 x2 x = [x1; x2]; A = [a b ; c d]; b = A*x
Find the determinant of A.
Find the eigenvalues of A.
lambda = eig(A)
The Symbolic Math Toolbox supports analytical plotting in 2D and 3D.

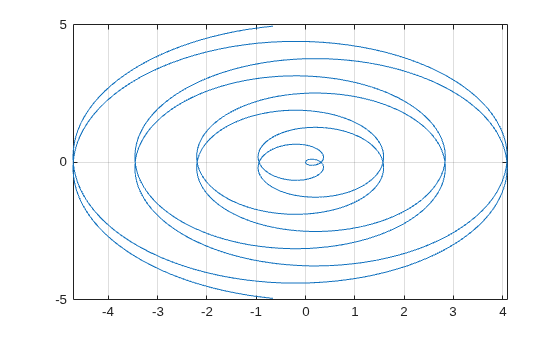

Plot the parametric curve and .
syms t x = t*sin(5*t); y = t*cos(5*t); fplot(x, y) grid on

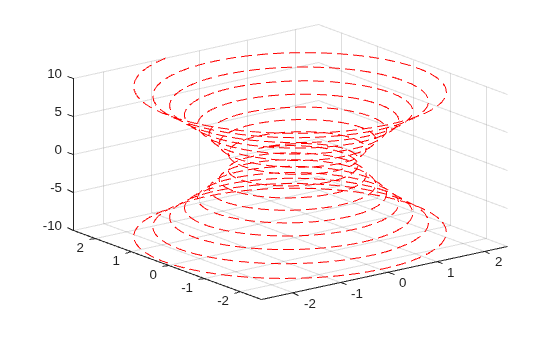

Plot the 3D parametric curve , and from
[-10,10] with a dashed red line.
syms t xt = exp(abs(t)/10).*sin(5*abs(t)); yt = exp(abs(t)/10).*cos(5*abs(t)); zt = t; h = fplot3(xt,yt,zt, [-10,10],'--r');

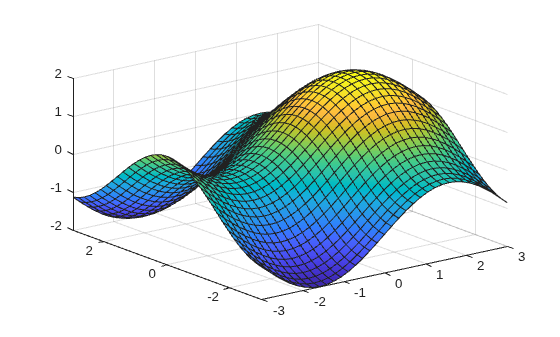

Plot the 3D surface .
syms x y fsurf(sin(x) + cos(y))

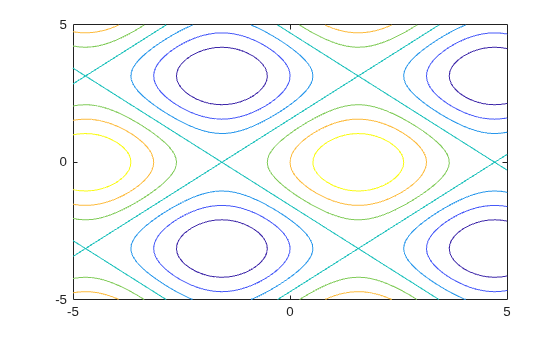

Plot the 2D contours of the same surface.
fcontour(sin(x) + cos(y))
