polyconf

Polynomial confidence intervals

Syntax

Y = polyconf(p,X)

[Y,Delta] = polyconf(p,X,S)

[___] = polyconf(___,Name=Value)

Description

Y = polyconf(p,X) evaluates the polynomial p at each point in X. The argument p is a vector of length n+1 whose elements are the coefficients (in descending powers) of an nth-degree polynomial:

$$p(x)=p_1{x}^n+p_2{x}^{n-1}+\mathrm{...}+p_{n}x+p_{n+1}.$$

The polynomial coefficients in p can be calculated by the polyfit function, but you can specify any vector for the coefficients.

[Y,Delta] = polyconf(p,X,S) also returns 95% prediction interval half-widths Delta for new observations at the values in X. The argument S is an error estimation structure returned by the polyfit function.

[___] = polyconf(___,Name=Value) specifies options using one or more name-value arguments in addition to any of the input argument combinations in previous syntaxes. For example, you can specify the confidence level for the confidence bounds.

Examples

Plot Polynomial Fit and Prediction Intervals

Fit a polynomial to a sample data set, and estimate the 95% prediction intervals and the roots of the fitted polynomial. Plot the data and the estimations, and display the fitted polynomial expression.

Generate sample data points (x,y) with a quadratic trend.

rng(0,"twister") % For reproducibility
x = -5:5;
y = x.^2 - 20*x - 3 + 5*randn(size(x));

Fit a second degree polynomial to the data by using polyfit.

degree = 2;
[p,S] = polyfit(x,y,degree);

Estimate the 95% prediction intervals by using polyconf.

alpha = 0.05; % Significance level
[yfit,delta] = polyconf(p,x,S,Alpha=alpha);

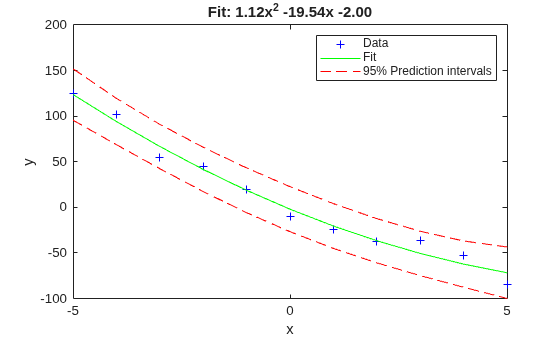

Plot the data, fitted polynomial, and prediction intervals, and display the fitted polynomial expression.

plot(x,y,"b+")
hold on
plot(x,yfit,"g-")
plot(x,yfit-delta,"r--",x,yfit+delta,"r--")
xlabel("x")
ylabel("y")
legend("Data","Fit","95% Prediction Intervals")
title(["Fit: "+ sprintf("%.2fx^2 %+ .2fx %+ .2f",p(1),p(2),p(3))])
hold off

Find the roots of the polynomial p.

r = roots(p)

r = 2×1

   17.5152
   -0.1017

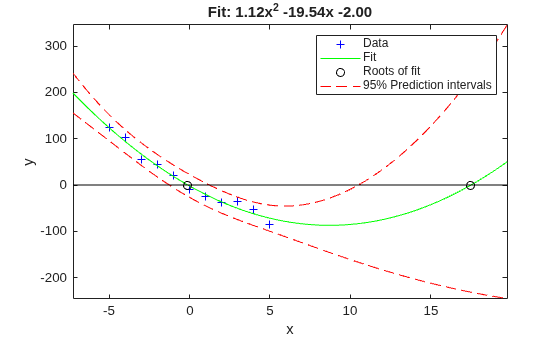

Because the roots are real values, you can plot them as well. Estimate the fitted values and prediction intervals for the x interval that includes the roots. Then, plot the roots and the estimations.

xmin = min([r(:);x(:)]);
xrange = range([r(:);x(:)]);
xExtended = linspace(xmin - 0.1*xrange, xmin + 1.1*xrange,1000);
[yfitExtended,deltaExtended] = polyconf(p,xExtended,S,Alpha=alpha);
plot(x,y,"b+")
hold on
plot(xExtended,yfitExtended,"g-")
plot(r,zeros(size(r)),"ko")
plot(xExtended,yfitExtended-deltaExtended,"r--")
plot(xExtended,yfitExtended+deltaExtended,"r--")
plot(xExtended,zeros(size(xExtended)),"k-")
xlabel("x")
ylabel("y")
legend("Data","Fit","Roots of Fit","95% Prediction Intervals")
title(["Fit: "+ sprintf("%.2fx^2 %+ .2fx %+ .2f",p(1),p(2),p(3))])
axis tight
hold off

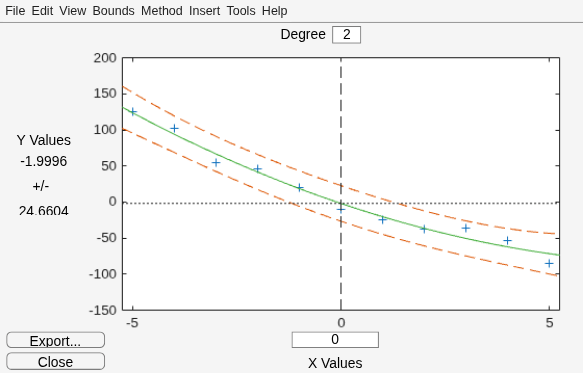

Alternatively, you can use polytool for interactive polynomial fitting.

polytool(x,y,degree,alpha)

Input Arguments

p — Polynomial coefficients

vector

Polynomial coefficients, specified as a vector of length n+1 whose elements are the coefficients (in descending powers) of an nth-degree polynomial. For example, the vector [1 0 1] represents the polynomial $$x^2+1$$, and the vector [3.13 -2.21 5.99] represents the polynomial $$3.13x^2-2.21x+5.99$$.

Data Types: single | double

X — Query points

numeric matrix

Query points, specified as a vector. polyconf evaluates the polynomial p at the points in X and returns the corresponding function values in Y.

Data Types: single | double

S — Error estimation structure

structure

Error estimation structure, specified as a structure returned by the polyfit function. You must specify S to return prediction interval half-widths, Delta. If you specify S, the dimension of the R field in the structure must equal the size of p.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: polyconf(b,X,Alpha=0.01) specifies a confidence level of 99% for the confidence bounds.

Alpha — Significance level

0.05 (default) | numeric value in the range [0,1]

Significance level for the confidence interval, specified as a numeric value in the range [0,1]. The confidence level of y is equal to 100(1 – Alpha)%. Alpha is the probability that the confidence interval does not contain the true value.

Example: Alpha=0.01

Data Types: single | double

Mu — Centering and scaling values

two-element vector

Centering and scaling values, specified as a two-element vector. If you specify Mu, the function converts the query points in X to standardized z-scores using mean value Mu(1) and standard deviation value Mu(2). To center the X values at zero with unit standard deviation, specify Mu=[mean(X),std(X)]. For more information about z-scores, see zscore.

Data Types: single | double

PredOpt — Prediction interval to compute

"observation" (default) | "curve"

Prediction interval to compute, specified as "observation" or "curve"

• "observation" (default) — the function computes prediction intervals for new observations at X.

  "curve" — the function computes confidence intervals for the polynomial at the query points X.

For more information, see Prediction Intervals.

Example: PredOpt="curve"

SimOpt — Indicator for specifying simultaneous bounds

"off" (default) | "on"

Indicator for specifying simultaneous bounds, specified as either "on" or "off". Specify "off" to compute nonsimultaneous bounds, or "on" for simultaneous bounds.

For more information, see Prediction Intervals.

Example: SimOpt="on"

Output Arguments

Y — Function values

matrix

Function values, returned as a matrix of the same size as the query points X. The matrix contains the result of evaluating the polynomial p at each point in X.

Data Types: single | double

Delta — Confidence interval half-widths

matrix

Confidence interval half-widths, returned as a matrix. By default, Delta contains the half-widths for 95% prediction intervals for new observations at the values in X. You can compute the lower and upper bounds of the prediction intervals as Y-Delta and Y+Delta, respectively.

If the "PredOpt" value is "curve", then Delta contains the half-widths for 95% confidence intervals for Y at the query points X.

More About

Prediction Intervals

The PredOpt and SimOpt name-value arguments can be understood in terms of the following functions:

• p(x) — the unknown mean function estimated by the fit

• l(x) — the lower confidence bound

• u(x) — the upper confidence bound

Suppose you make a new observation y_n+1 at x_n+1, so that

yn+1(xn+1) = p(xn+1) + εn+1

(1)

By default, the interval [l_n+1(x_n+1), u_n+1(x_n+1)] is a 95% confidence bound on y_n+1(x_n+1).

The following combinations of the PredOpt and SimOpt parameters allow you to specify other bounds.

SimOpt Value	PredOpt Value	Bounded Quantity
"off" (default)	"observation" (default)	yn+1(xn+1)
"off"	"curve"	p(xn+1)
"on"	"observation"	yn+1(x), for all x
"on"	"curve"	p(x), for all x

In general, "observation" (prediction) intervals are wider than "curve" (confidence) intervals, because of the additional uncertainty of predicting a new response value (the curve plus random errors). Likewise, simultaneous intervals are wider than nonsimultaneous intervals, because of the additional uncertainty of bounding values for all predictors x.

Version History

Introduced before R2006a
