Optimize Cross-Validated Classifier Using bayesopt

This example shows how to optimize an SVM classification using the bayesopt function.

Alternatively, you can optimize a classifier by using the OptimizeHyperparameters name-value argument. For an example, see Optimize Classifier Fit Using Bayesian Optimization.

Generate Data

The classification works on locations of points from a Gaussian mixture model. In The Elements of Statistical Learning, Hastie, Tibshirani, and Friedman (2009), page 17 describes the model. The model begins with generating 10 base points for a "green" class, distributed as 2-D independent normals with mean (1,0) and unit variance. It also generates 10 base points for a "red" class, distributed as 2-D independent normals with mean (0,1) and unit variance. For each class (green and red), generate 100 random points as follows:

  1. Choose a base point m of the appropriate color uniformly at random.

  2. Generate an independent random point with 2-D normal distribution with mean m and variance I/5, where I is the 2-by-2 identity matrix. In this example, use a variance I/50 to show the advantage of optimization more clearly.

Generate the 10 base points for each class.

rng('default') % For reproducibility
grnpop = mvnrnd([1,0],eye(2),10);
redpop = mvnrnd([0,1],eye(2),10);

View the base points.

plot(grnpop(:,1),grnpop(:,2),'go')
hold on
plot(redpop(:,1),redpop(:,2),'ro')
hold off

Figure contains an axes object. The axes object contains 2 objects of type line. One or more of the lines displays its values using only markers

Since some red base points are close to green base points, it can be difficult to classify the data points based on location alone.

Generate the 100 data points of each class.

redpts = zeros(100,2);grnpts = redpts;
for i = 1:100
    grnpts(i,:) = mvnrnd(grnpop(randi(10),:),eye(2)*0.02);
    redpts(i,:) = mvnrnd(redpop(randi(10),:),eye(2)*0.02);
end

View the data points.

figure
plot(grnpts(:,1),grnpts(:,2),'go')
hold on
plot(redpts(:,1),redpts(:,2),'ro')
hold off

Figure contains an axes object. The axes object contains 2 objects of type line. One or more of the lines displays its values using only markers

Prepare Data for Classification

Put the data into one matrix, and make a vector grp that labels the class of each point. 1 indicates the green class, and -1 indicates the red class.

cdata = [grnpts;redpts];
grp = ones(200,1);
grp(101:200) = -1;

Prepare Cross-Validation

Set up a partition for cross-validation. This step fixes the train and test sets that the optimization uses at each step.

c = cvpartition(200,'KFold',10);

Prepare Variables for Bayesian Optimization

Set up a function that takes an input z = [rbf_sigma,boxconstraint] and returns the cross-validation loss value of z. Take the components of z as positive, log-transformed variables between 1e-5 and 1e5. Choose a wide range, because you don't know which values are likely to be good.

sigma = optimizableVariable('sigma',[1e-5,1e5],'Transform','log');
box = optimizableVariable('box',[1e-5,1e5],'Transform','log');

Objective Function

This function handle computes the cross-validation loss at parameters [sigma,box]. For details, see kfoldLoss.

bayesopt passes the variable z to the objective function as a one-row table.

minfn = @(z)kfoldLoss(fitcsvm(cdata,grp,'CVPartition',c,...
    'KernelFunction','rbf','BoxConstraint',z.box,...
    'KernelScale',z.sigma));

Optimize Classifier

Search for the best parameters [sigma,box] using bayesopt. For reproducibility, choose the 'expected-improvement-plus' acquisition function. The default acquisition function depends on run time, and so can give varying results.

results = bayesopt(minfn,[sigma,box],'IsObjectiveDeterministic',true,...
    'AcquisitionFunctionName','expected-improvement-plus')
|=====================================================================================================|
| Iter | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |        sigma |          box |
|      | result |             | runtime     | (observed)  | (estim.)    |              |              |
|=====================================================================================================|
|    1 | Best   |        0.61 |     0.16814 |        0.61 |        0.61 |   0.00013375 |        13929 |
|    2 | Best   |       0.345 |     0.19002 |       0.345 |       0.345 |        24526 |        1.936 |
|    3 | Accept |        0.61 |     0.14965 |       0.345 |       0.345 |    0.0026459 |   0.00084929 |
|    4 | Accept |       0.345 |     0.14495 |       0.345 |       0.345 |       3506.3 |   6.7427e-05 |
|    5 | Accept |       0.345 |    0.098095 |       0.345 |       0.345 |       9135.2 |       571.87 |
|    6 | Accept |       0.345 |     0.14574 |       0.345 |       0.345 |        99701 |        10223 |
|    7 | Best   |       0.295 |     0.14731 |       0.295 |       0.295 |       455.88 |       9957.4 |
|    8 | Best   |        0.24 |     0.98874 |        0.24 |        0.24 |        31.56 |        99389 |
|    9 | Accept |        0.24 |       1.216 |        0.24 |        0.24 |       10.451 |        64429 |
|   10 | Accept |        0.35 |    0.061622 |        0.24 |        0.24 |       17.331 |   1.0264e-05 |
|   11 | Best   |        0.23 |     0.76664 |        0.23 |        0.23 |       16.005 |        90155 |
|   12 | Best   |         0.1 |     0.13937 |         0.1 |         0.1 |      0.36562 |        80878 |
|   13 | Accept |       0.115 |     0.07809 |         0.1 |         0.1 |       0.1793 |        68459 |
|   14 | Accept |       0.105 |     0.07018 |         0.1 |         0.1 |       0.2267 |        95421 |
|   15 | Best   |       0.095 |    0.056946 |       0.095 |       0.095 |      0.28999 |    0.0058227 |
|   16 | Best   |       0.075 |     0.20583 |       0.075 |       0.075 |      0.30554 |       8.9017 |
|   17 | Accept |       0.085 |     0.14375 |       0.075 |       0.075 |      0.41122 |       4.4476 |
|   18 | Accept |       0.085 |     0.09529 |       0.075 |       0.075 |      0.25565 |       7.8038 |
|   19 | Accept |       0.075 |     0.12555 |       0.075 |       0.075 |      0.32869 |       18.076 |
|   20 | Accept |       0.085 |    0.069276 |       0.075 |       0.075 |      0.32442 |       5.2118 |
|=====================================================================================================|
| Iter | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |        sigma |          box |
|      | result |             | runtime     | (observed)  | (estim.)    |              |              |
|=====================================================================================================|
|   21 | Accept |         0.3 |    0.064193 |       0.075 |       0.075 |       1.3592 |    0.0098067 |
|   22 | Accept |        0.12 |    0.057582 |       0.075 |       0.075 |      0.17515 |   0.00070913 |
|   23 | Accept |       0.175 |       0.131 |       0.075 |       0.075 |       0.1252 |     0.010749 |
|   24 | Accept |       0.105 |    0.067127 |       0.075 |       0.075 |       1.1664 |        31.13 |
|   25 | Accept |         0.1 |    0.086768 |       0.075 |       0.075 |      0.57465 |       2013.8 |
|   26 | Accept |        0.12 |    0.072945 |       0.075 |       0.075 |      0.42922 |   1.1602e-05 |
|   27 | Accept |        0.12 |     0.10464 |       0.075 |       0.075 |      0.42956 |   0.00027218 |
|   28 | Accept |       0.095 |    0.095945 |       0.075 |       0.075 |       0.4806 |       13.452 |
|   29 | Accept |       0.105 |     0.13501 |       0.075 |       0.075 |      0.19755 |       943.87 |
|   30 | Accept |       0.205 |    0.067905 |       0.075 |       0.075 |       3.5051 |       93.492 |

__________________________________________________________
Optimization completed.
MaxObjectiveEvaluations of 30 reached.
Total function evaluations: 30
Total elapsed time: 22.7968 seconds
Total objective function evaluation time: 5.9443

Best observed feasible point:
     sigma      box
    _______    ______

    0.30554    8.9017

Observed objective function value = 0.075
Estimated objective function value = 0.075
Function evaluation time = 0.20583

Best estimated feasible point (according to models):
     sigma      box
    _______    ______

    0.32869    18.076

Estimated objective function value = 0.075
Estimated function evaluation time = 0.11491

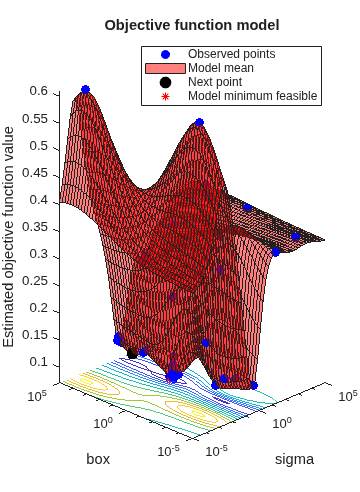

Figure contains an axes object. The axes object with title Objective function model, xlabel sigma, ylabel box contains 5 objects of type line, surface, contour. One or more of the lines displays its values using only markers These objects represent Observed points, Model mean, Next point, Model minimum feasible.

Figure contains an axes object. The axes object with title Min objective vs. Number of function evaluations, xlabel Function evaluations, ylabel Min objective contains 2 objects of type line. These objects represent Min observed objective, Estimated min objective.

results =
  BayesianOptimization with properties:

                      ObjectiveFcn: @(z)kfoldLoss(fitcsvm(cdata,grp,'CVPartition',c,'KernelFunction','rbf','BoxConstraint',z.box,'KernelScale',z.sigma))
              VariableDescriptions: [1x2 optimizableVariable]
                           Options: [1x1 struct]
                      MinObjective: 0.0750
                   XAtMinObjective: [1x2 table]
             MinEstimatedObjective: 0.0750
          XAtMinEstimatedObjective: [1x2 table]
           NumObjectiveEvaluations: 30
                  TotalElapsedTime: 22.7968
                         NextPoint: [1x2 table]
                            XTrace: [30x2 table]
                    ObjectiveTrace: [30x1 double]
                  ConstraintsTrace: []
                     UserDataTrace: {30x1 cell}
      ObjectiveEvaluationTimeTrace: [30x1 double]
                IterationTimeTrace: [30x1 double]
                        ErrorTrace: [30x1 double]
                  FeasibilityTrace: [30x1 logical]
       FeasibilityProbabilityTrace: [30x1 double]
               IndexOfMinimumTrace: [30x1 double]
             ObjectiveMinimumTrace: [30x1 double]
    EstimatedObjectiveMinimumTrace: [30x1 double]

Obtain the best estimated feasible point from the XAtMinEstimatedObjective property or by using the bestPoint function. By default, the bestPoint function uses the 'min-visited-upper-confidence-interval' criterion. For details, see the Criterion name-value argument of bestPoint.

results.XAtMinEstimatedObjective
ans=1×2 table
     sigma      box
    _______    ______

    0.32869    18.076

z = bestPoint(results)
z=1×2 table
     sigma      box
    _______    ______

    0.32869    18.076

Use the best point to train a new, optimized SVM classifier.

SVMModel = fitcsvm(cdata,grp,'KernelFunction','rbf', ...
    'KernelScale',z.sigma,'BoxConstraint',z.box);

To visualize the support vector classifier, predict scores over a grid.

d = 0.02;
[x1Grid,x2Grid] = meshgrid(min(cdata(:,1)):d:max(cdata(:,1)), ...
    min(cdata(:,2)):d:max(cdata(:,2)));
xGrid = [x1Grid(:),x2Grid(:)];
[~,scores] = predict(SVMModel,xGrid);

Plot the classification boundaries.

figure
h(1:2) = gscatter(cdata(:,1),cdata(:,2),grp,'rg','+*');
hold on
h(3) = plot(cdata(SVMModel.IsSupportVector,1) ,...
    cdata(SVMModel.IsSupportVector,2),'ko');
contour(x1Grid,x2Grid,reshape(scores(:,2),size(x1Grid)),[0 0],'k');
legend(h,{'-1','+1','Support Vectors'},'Location','Southeast');

Figure contains an axes object. The axes object contains 4 objects of type line, contour. One or more of the lines displays its values using only markers These objects represent -1, +1, Support Vectors.

Evaluate Accuracy on New Data

Generate and classify new test data points.

grnobj = gmdistribution(grnpop,.2*eye(2));
redobj = gmdistribution(redpop,.2*eye(2));

newData = random(grnobj,10);
newData = [newData;random(redobj,10)];
grpData = ones(20,1);  % green = 1
grpData(11:20) = -1; % red = -1

v = predict(SVMModel,newData);

Compute the misclassification rates on the test data set.

L = loss(SVMModel,newData,grpData)
L =
0.3500

See which new data points are correctly classified. Circle the correctly classified points in red, and the incorrectly classified points in black.

h(4:5) = gscatter(newData(:,1),newData(:,2),v,'mc','**');

mydiff = (v == grpData); % Classified correctly

for ii = mydiff % Plot red squares around correct pts
    h(6) = plot(newData(ii,1),newData(ii,2),'rs','MarkerSize',12);
end

for ii = not(mydiff) % Plot black squares around incorrect pts
    h(7) = plot(newData(ii,1),newData(ii,2),'ks','MarkerSize',12);
end
legend(h,{'-1 (training)','+1 (training)','Support Vectors', ...
    '-1 (classified)','+1 (classified)', ...
    'Correctly Classified','Misclassified'}, ...
    'Location','Southeast');
hold off

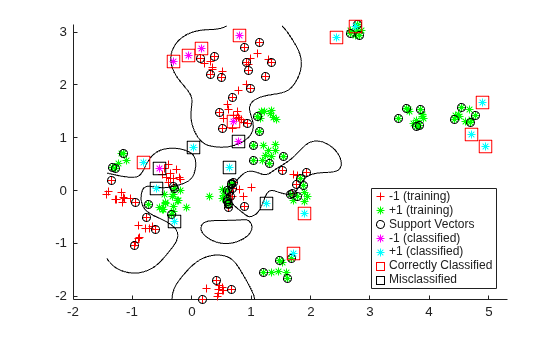

Figure contains an axes object. The axes object contains 8 objects of type line, contour. One or more of the lines displays its values using only markers These objects represent -1 (training), +1 (training), Support Vectors, -1 (classified), +1 (classified), Correctly Classified, Misclassified.
