Single-Phase Asynchronous Machine Field-Oriented Control

This example shows how to control the rotor speed in a single-phase asynchronous machine (ASM) based electrical drive using field-oriented control. An ideal torque source provides the load. The Control subsystem uses a PI-based cascade control structure with an outer speed control loop and two inner current control loops. The single-phase ASM is fed by an H bridge. The Scopes subsystem contains scopes that allow you to see the simulation results.


Simulation Results from Simscape Logging

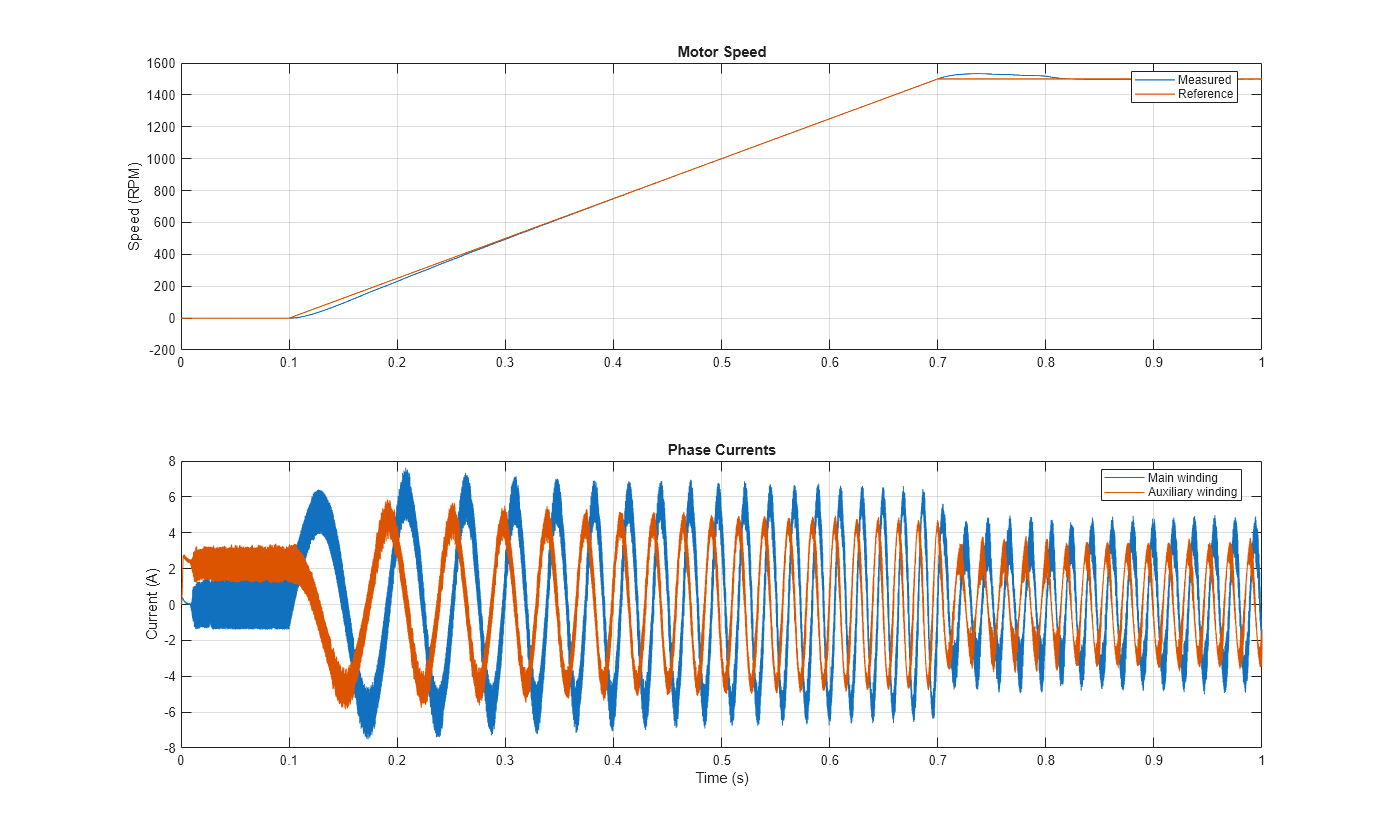

The plot below shows the requested and measured speed for the test, as well as the phase currents in the electric drive.
