Highlight linearization path in Simulink model
highlight( highlights the blocks
on the linearization path for the model linearization associated with a
LinearizationAdvisor object. The software identifies blocks
that are on or off the linearization path. Also, for blocks that are on the
linearization path, the software indicates whether they contribute to the
Load Simulink model.
mdl = 'scdspeed'; load_system(mdl)
Linearize the model and obtain the
opts = linearizeOptions('StoreAdvisor',true); io(1) = linio('scdspeed/throttle (degrees)',1,'input'); io(2) = linio('scdspeed/rad//s to rpm',1,'output'); [sys,op,info] = linearize(mdl,io,opts); advisor = info.Advisor;
Highlight the linearization path.

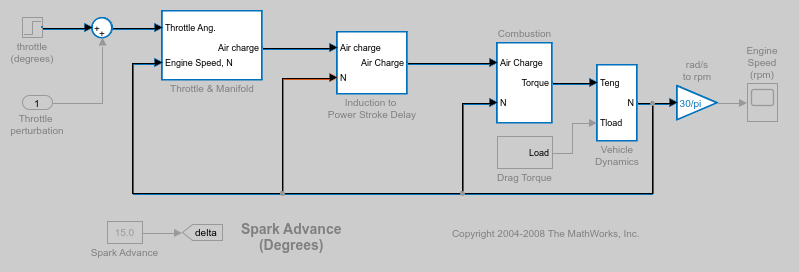

The Simulink model is highlighted as follows:

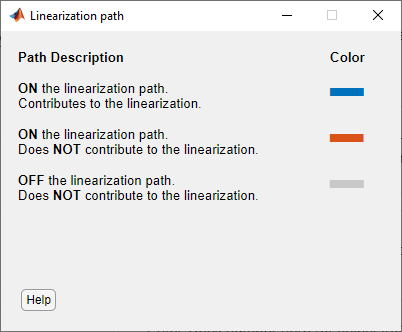

Blue blocks are on the linearization path and contribute to the model linearization.
Red blocks are on the linearization path and do not contribute to the model linearization.
Gray blocks are not on the linearization path.
A block is on the linearization path if there is a signal path from at least one linearization input to at least one linearization output that passes through the block.
