Run Iterative Simulations Without Recompiling Model for Variant Systems Using Fast Restart
This example shows how to run iterative simulations on a fog lamp controller system using fast restart. The fog lamp controller system can operate in Driver Switch mode or in Sensor Connected mode. In Driver Switch mode, the driver controls the intensity of the fog lamps. In Sensor Connected mode, a sensor adjusts the intensity of the fog lamps based on the intensity of ambient light in the external environment.
When you run iterative simulations on the fog lamp controller system with fast restart enabled, Simulink does not need to recompile the model each time you simulate the model. Using fast restart, you compile a model only once. You can then change the control modes or type of fog lamps and simulate the model again without recompiling the model. For more information on fast restart, see How Fast Restart Improves Iterative Simulations.
Model
Consider the model slexVariantsWithStartup
.
The Variant Subsystem block named Controller
represents the structural variation. The variant parameter lightVolt
represents the parameter variation in the model.
The Controller subsystem enables you to switch between Sensors Connected and Driver Switch modes by using the variant control variable CTRL_MODE
. Sensors Connected mode is a sensor-based mode that automatically adjusts the intensity of fog lamps based on the sensor voltage for the varying intensity of ambient light. The Drivers Switch mode represents driver manually switching the fog lamps on and off.
The lightVolt
parameter contains fog lamp intensities for different types of fog lamps, LIGHT_TYPE
, in Sensor Connected mode. The fog lamp intensities are mapped to the sensor voltage using the 1-D Lookup Table block.
In this example, the variables CTRL_MODE
, LIGHT_TYPE
, and lightVolt
are defined in the PreLoadFcn
callback. To view or modify the value of these variables, on the Modeling tab, select Model Settings > Model Properties. On the Callbacks tab, in the Model callback pane, select PreLoadFcn
.
To run iterative simulations using fast restart, the activation time of the Controller block and lightVolt
is set to startup
.

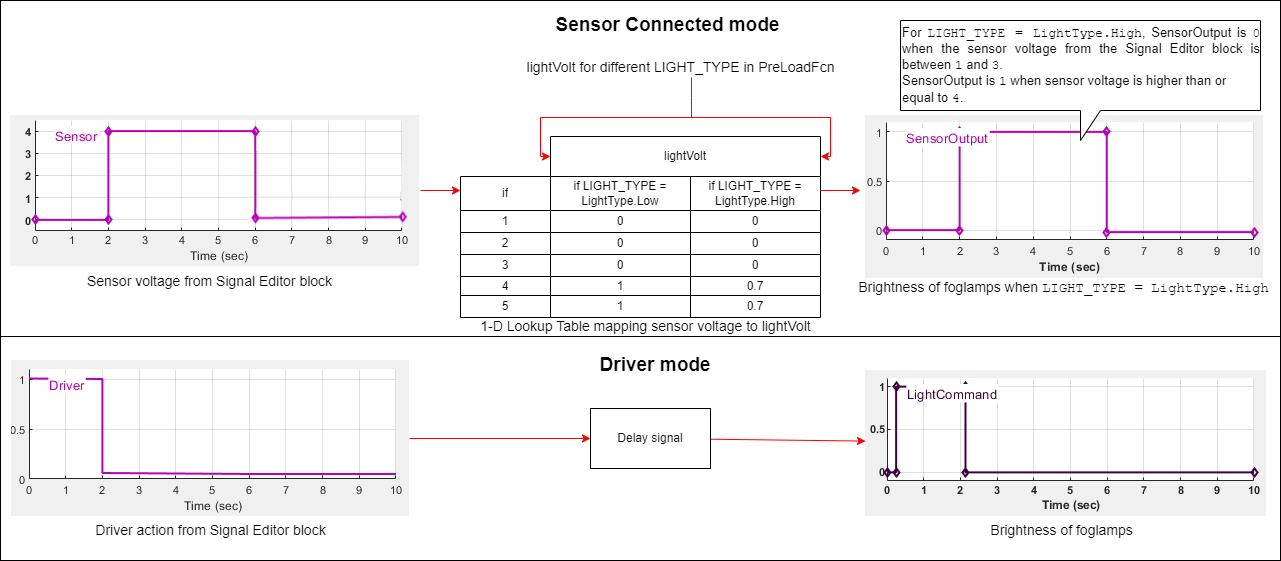

Explore Model Inputs and Outputs
The Signal Editor block generates two signal groups Sensor
and Driver
that are provided as inputs to the Controller subsystem block.
In the
Sensor
signal group, the x-axis represents time in seconds. The y-axis represents the sensor voltages for varying ambient light intensities in external environment.
In the
Driver
signal group, the x-axis represents time in seconds. The y-axis represents the driver action.1
indicates that the driver has turned on the fog lamps and0
indicates that the driver has turned off the fog lamps.
In this example, the driver turns on the fog lamps for first two seconds. During this time, the output is a delayed driver switch signal. From two seconds onward, the sensor generates voltages based on the intensity of the ambient light. The sensor voltage is then provided as an input to the 1-D Lookup Table block in the Sensor Connected mode. The lookup table then maps the sensor voltages to the fog lamp intensities in lightVolt
. lightVolt
has multiple values of fog lamp intensities that vary for different types of fog lamps, which are represented by LIGHT_TYPE
.
The Scope block outputs these parameter values. The time axis is in seconds.
LightCommand
: In the Driver Switch mode,LightCommand
is a delayed driver switch signal. TheLightCommand
signal is high if the Driver signal is high, andLightCommand
is low if the Driver signal is low. In other words, when the driver turns on the fog lamps, the fog lamps are illuminated. When the driver turns off the fog lamps, the fog lamps turn dim.
In the Sensor Connected mode, LightCommand
is same as SensorOutput
, provided the sensor is working. LightCommand
is high if SensorOutput
output is high, and LightCommand
is low if SensorOutput
is low. LightCommand
is independent of the Driver signal. However, LightCommand
honors the Driver signal if the sensor is faulty.
Driver
:0
indicates that the driver has turned off the fog lamps.1
indicates that the driver has turned on the fog lamps.
SensorFault
: A sensor voltage between0.5
and5
indicates that the sensor is working correctly and theSensorFault
is0
.
SensorOutput
: Fog lamp intensities correspond to the sensor voltages specified in the 1-D Lookup Table block.
Iteratively Simulate Fog Lamp Controller System in Driver Switch and Sensor Connected Modes
To simulate the model in Driver Switch mode, perform these settings:
1. To enable fast restart, on the Simulation tab, in the Simulate section, click Fast Restart.
2. In the MATLAB® Command Window, set CTRL_MODE
to 2
to activate the Driver Switch mode. Check that the activation time of the Controller subsystem is set to startup
.
CTRL_MODE.Value = int32(2);

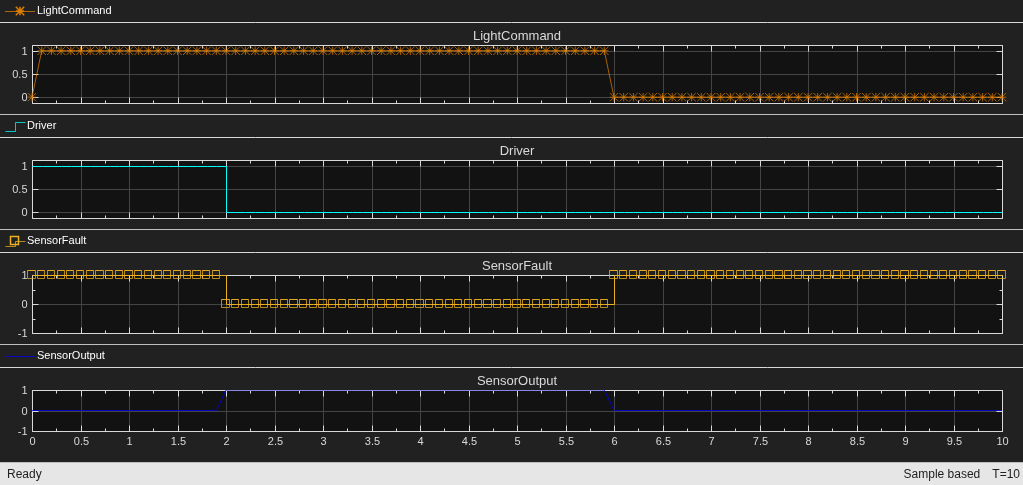

3. Run the simulation. Use the Scope block to visualize the results.
In the Driver Switch mode, the fog lamps are turned on and off based on the action performed by the driver. So, the LightCommand
is high when the Driver
signal is high and the LightCommand
is low when the Driver
signal is low. The sensors are not active in this mode and hence the value of SensorFault
and SensorOutput
is 0
. For more information, see Model Inputs and Outputs.
sim('slexVariantsWithStartup'); open_system('slexVariantsWithStartup/Scope')
4. Now, simulate the model in Sensor Connected mode by changing the value of CTRL_MODE
to 1
. The type of fog lamp, LIGHT_TYPE
, is set to LightType.Type1
.
CTRL_MODE.Value = int32(1);

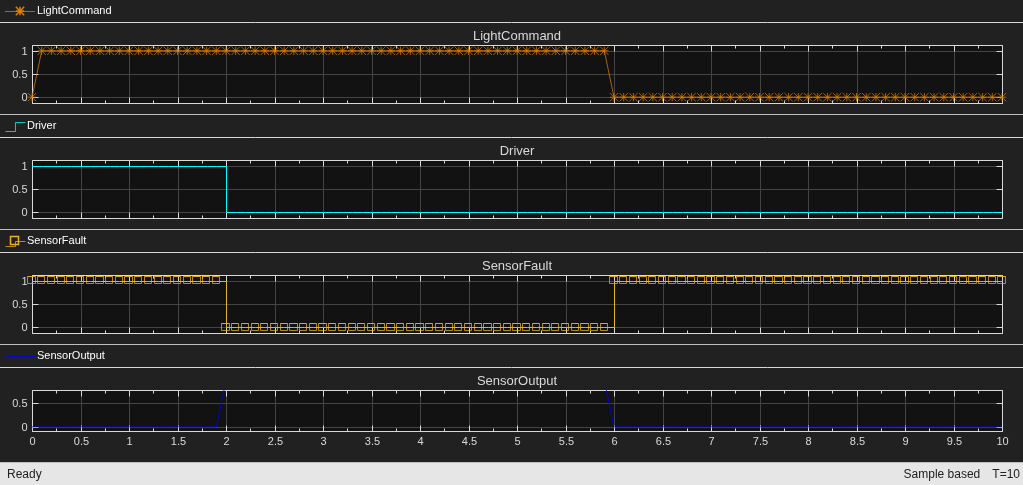

5. Run the simulation again. Because fast restart is enabled, Simulink skips compilation and directly starts simulating the model. With fast restart enabled, recompiling is not required for accurate results when there is no structural change in the model. Use the Scope block to visualize the results.
LightCommand
is high until SensorOutput
is high and is independent of the Driver
signal. For more information, see Model Inputs and Outputs.
sim('slexVariantsWithStartup'); open_system('slexVariantsWithStartup/Scope')
Iteratively Simulate Fog Lamp Controller System with Varying Ambient Light in Sensor Connected Mode
1. To enable fast restart, on the Simulation tab, in the Simulate section, click Fast Restart.
2. In the MATLAB Command Window, set CTRL_MODE
to 1
to activate the Sensors Connected mode and set the value of LIGHT_TYPE
to LightType.Type1
.
Check that the activation time of lightVolt
is set to startup
.
CTRL_MODE.Value = int32(1); LIGHT_TYPE.Value = LightType.Type1;

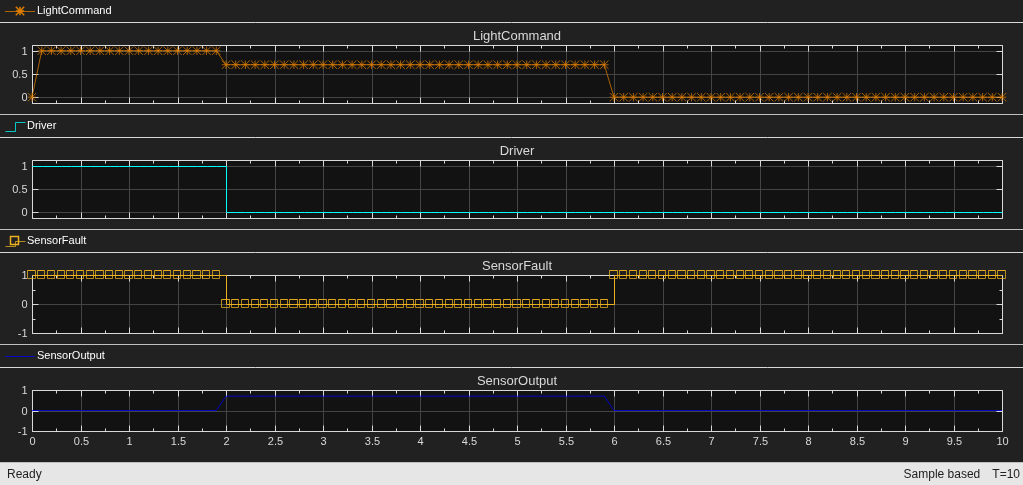

3. Run the simulation. Use the Scope block to visualize the results.
For the first two seconds, the Driver
signal from the Signal Editor block is high, so the LightCommand
signal is also high. From two seconds onward, the sensor is working and generates SensorOutput
based on the sensor voltages from the Signal Editor block. LightCommand
is high until SensorOutput
is high and is independent of the Driver
signal. For information on how sensor voltages are mapped to SensorOutput
, see Model Inputs and Outputs.
sim('slexVariantsWithStartup'); open_system('slexVariantsWithStartup/Scope')
4. Change the value of LIGHT_TYPE
to LightType.Type2
and run the simulation again. Because fast restart is enabled, Simulink skips compilation and immediately starts simulating the model. Recompiling is not required for accurate results when no structural changes occur in the model.
LIGHT_TYPE.Value = LightType.Type2;
Use the Scope block to visualize the results. For more information, see Model Inputs and Outputs.
sim('slexVariantsWithStartup'); open_system('slexVariantsWithStartup/Scope')
