UDP Send

Send UDP message to UDP host

Add-On Required: This feature requires the Simulink Support Package for Parrot Minidrones add-on.

Libraries:
Simulink Support Package for Parrot Minidrones

Description

The UDP Send block sends an input vector as UDP message over an IP network port to a UDP host.

Specify the IP address and the port number of the receiving host in the Remote IP address and Remote IP Port parameter.

Examples

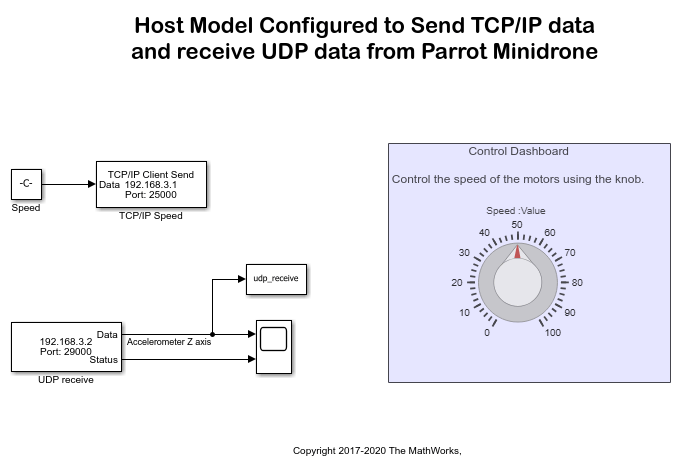

Communicating with a Parrot Minidrone Using TCP/IP and UDP

Use the TCP/IP and UDP communication blocks in the Simulink® Support Package for Parrot® Minidrones. The blocks are used to control the motor speed of the drone and visualize the accelerometer sensor data from the drone.

Open Model

Ports

Input

expand all

Port1 — Send UDP messages to another UDP host
vector

The port accepts an array and sends it as UDP messages over an IP network port to the receiving host.

Parameters

expand all

Remote IP address — IP address of receiving UDP host
`192.168.3.2` (default)

Specify the IP address or the host name to which the block sends the UDP messages. The Remote IP address is set at 192.168.3.2; do not change this IP address.

Remote IP Port — IP port on the receiving UDP host
`25000` (default) | [1, 65535]

Specify the port number of the application on the receiving host to which you want to send the messages. Match the remote port number with the local port number of the receiving host.

Note

Do not use ports 24099 and 26061 for UDP communication with Parrot minidrone as these ports are reserved.

Local IP Port — IP port on the sending UDP host
`2048` (default) | [1, 65535]

This parameter appears if you select the Specify via dialog option for Local IP port source. Specify the port number of the application from which you want to send the messages.

Version History

Introduced in R2018a
