Simulink Subsystem Semantics
This set of examples shows different types of Simulink® Subsystems and what semantics are used when simulating these Subsystems. Each example provides a description of the model and the subtleties governing how it will be executed.
Examples are provided for the following Subsystem types.

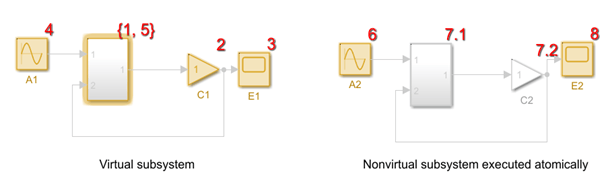

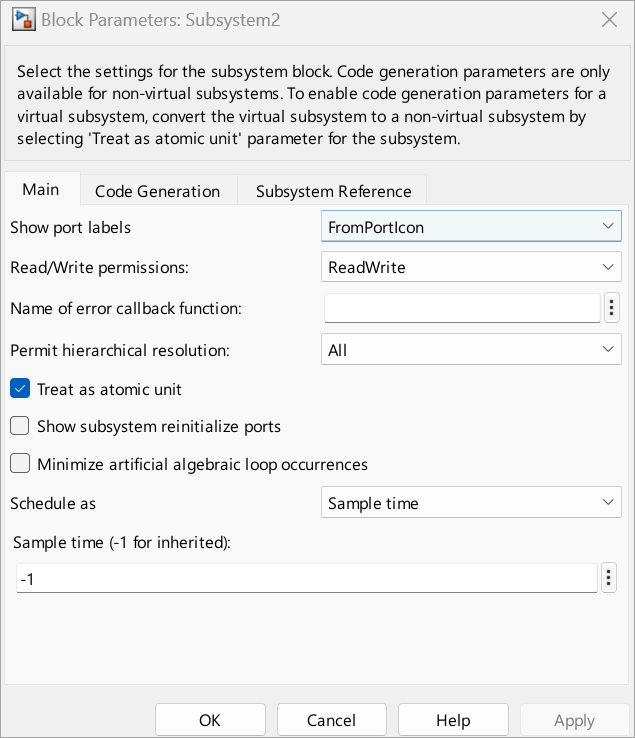

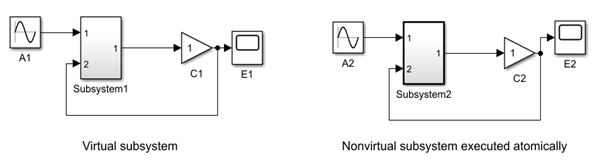

Virtual and Nonvirtual Subsystems

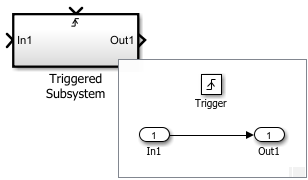

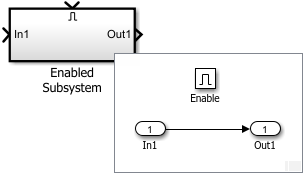

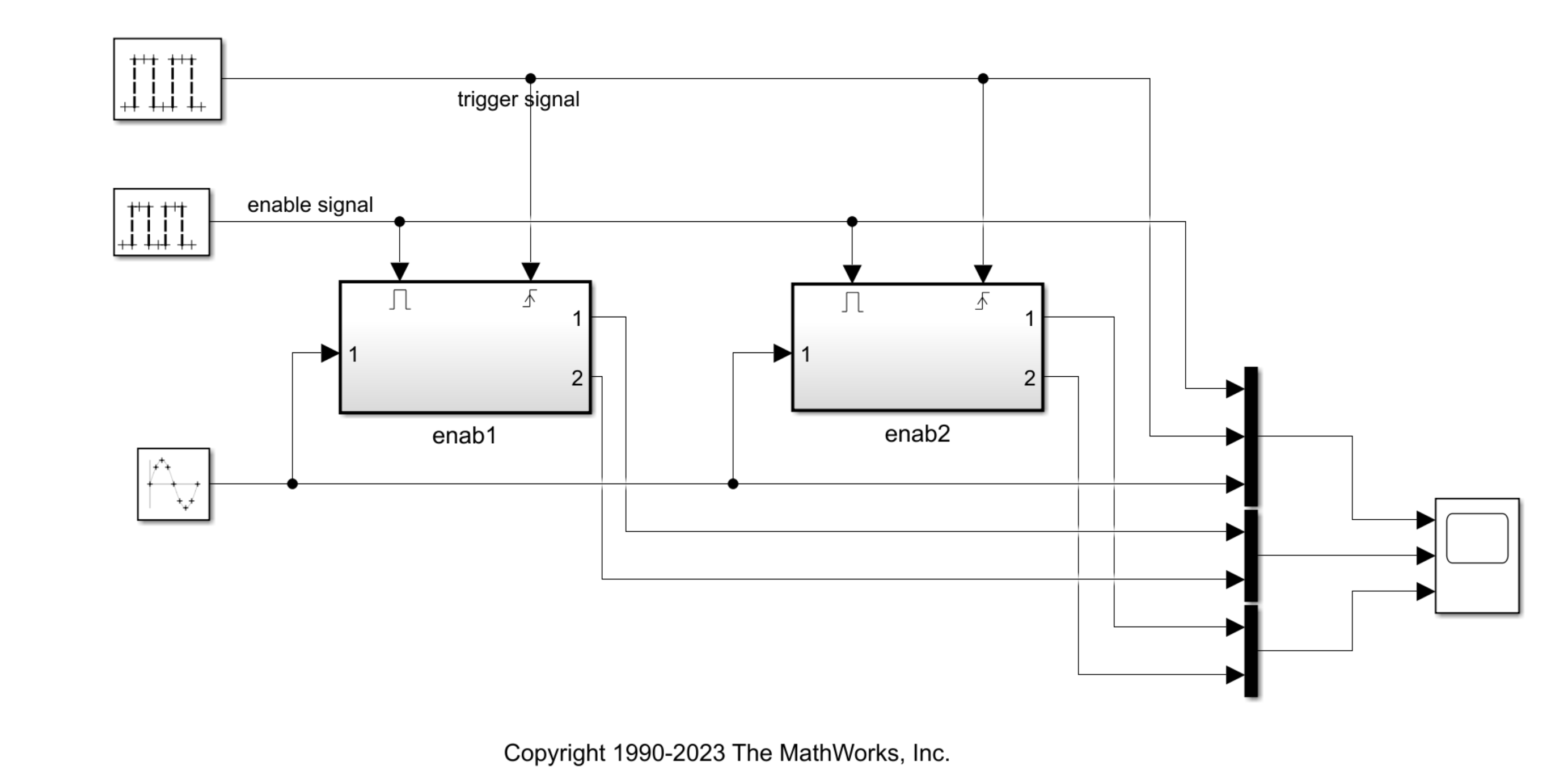

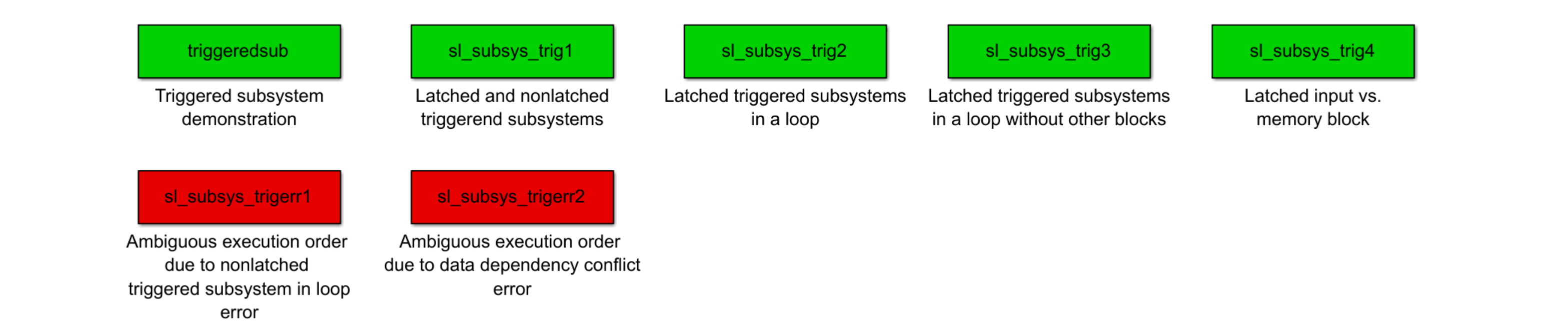

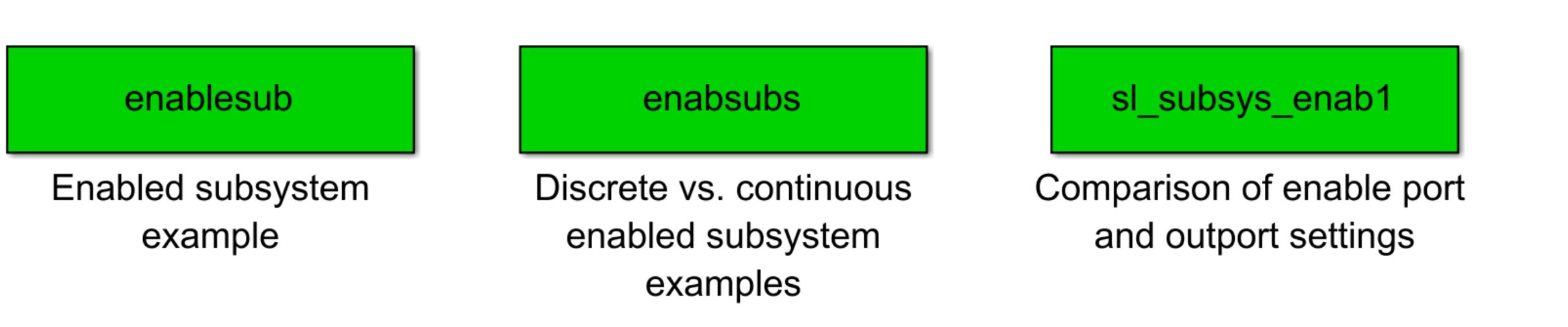

Triggered and Enabled Subsystems
