IO Device Builder
Mit der App IO Device Builder im Simulink® Support Package für Arduino®-Hardware können Sie schnell ein System object™ für benutzerdefinierte oder Drittanbieter-Quelldateien (C/C++) erstellen. Sie können das System object verwenden, um einen Simulink-Block mit dem MATLAB®-Systemblock zu erstellen.
Um die IO Device Builder-App zu verwenden, navigieren Sie auf der Registerkarte Hardware in der Simulink-Symbolleiste zu Prepare > Design > IO Device Builder. Eine Anleitung führt Sie durch den Prozess der Erstellung eines System object- und eines Simulink-Blocks.
Themen
- Get Started with IO Device Builder
Understand system requirements and work with IO Device Builder.
- Working with Arduino Libraries in IO Device Builder
Instructions to handle Arduino Libraries in IO Device Builder.
Verwandte Informationen
Enthaltene Beispiele
Create DHT11 Sensor Block to Measure Relative Humidity and Temperature Using IO Device Builder App

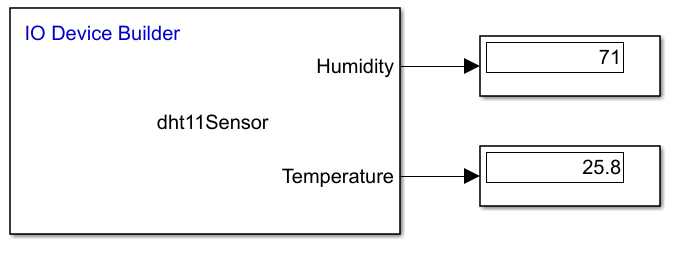

Use the IO Device Builder app to create DHT11 sensor for measuring relative humidity and temperature. In this example, the DHT11 sensor communicates with a microcontroller through a single-wire interface. The communication protocol is a proprietary one-wire protocol that uses a timing-based communication scheme. It detects water vapor by measuring the electrical resistance between two electrodes, and it measures temperature with a surface-mounted NTC temperature sensor (thermistor) built into the unit.
Create ADXL343 Sensor Block to Read Acceleration Using IO Device Builder App
Use the IO Device Builder app to create ADXL343 sensor to measure acceleration. In this example, the ADXL343 sensor values are retrieved by using the SPI bus requiring four wires (SCL, SDA, SDO and CS).
Create OLED Display Block to Display Acceleration Using IO Device Builder App
Use the IO Device Builder app to create ADXL343 sensor to measure acceleration and display the same in SH1106 OLED (Organic Light Emitting Diodes) display module.
Create OLED Display Block to Display Acceleration and Tap Count Using IO Device Builder App
Use the IO Device Builder app to create OLED Display block to measure acceleration, tap count and then display the same in OLED (Organic Light Emitting Diodes) display module.
Create OLED Display Block to Display Acceleration and Tap Count Using Arduino External Interrupt Block and IO Device Builder App
Use the IO Device Builder app to create OLED Display block to display acceleration and tap count using Arduino External Interrupt block.
