Seriell
R2026aDie serielle Kommunikation ist das gängigste Low-Level-Protokoll für die Kommunikation zwischen zwei oder mehr Geräten. Sie können die serielle Kommunikation über Universal Asynchronous Receiver-Transmitter (UART) effektiv nutzen, um mit Ihre Arduino®-Board und Ihrem Host-Computer anwendungsübergreifend Daten auszutauschen, zu steuern und zu automatisieren.
Blöcke
 | Serial Receive | Receive data over Arduino serial port |
 | Serial Transmit | Transmit data over Arduino serial port |
 | Serial Receive SAMD | Receive data over Arduino SAM D21 core serial port (Seit R2026a) |
 | Serial Transmit SAMD | Transmit data over Arduino SAM D21 core serial port (Seit R2026a) |
Modelleinstellungen
Themen
- Use Serial Communication with Arduino Hardware
Set up and use serial communication with Arduino hardware.
Enthaltene Beispiele

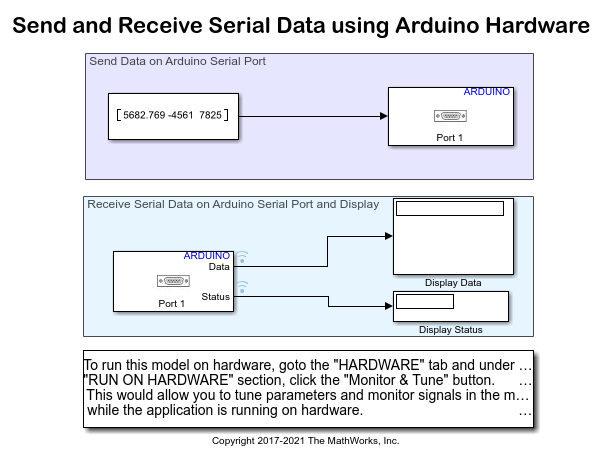

Send and Receive Serial Data Using Arduino Hardware
Use Simulink® Support Package for Arduino® Hardware to send and receive serial data with Arduino hardware.
Encode and Decode Serial Data Using Arduino Hardware
Use Simulink® Support Package for Arduino® Hardware to encode and decode serial data with Arduino hardware.

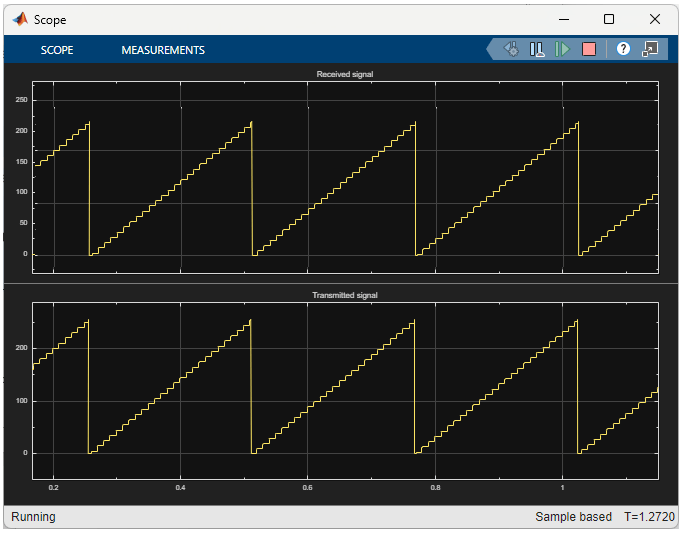

Send and Receive Data Between Arduino and Host Using Serial Communication
Use the Serial Transmit and Serial Receive blocks from the Simulink® Support Package for Arduino® Hardware to transmit and receive data between your host computer and Arduino hardware using a USB to serial converter. When the Arduino hardware receives data, it transmits back the same data to the host. The host then displays both the transmitted and received data on the scope.

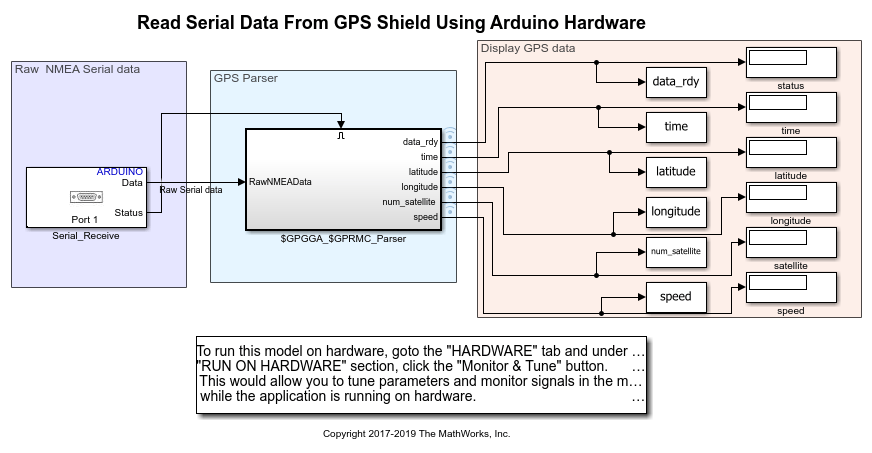

Read Serial Data from GPS Shield Using Arduino Hardware
Use Simulink® Support Package for Arduino® Hardware to receive serial data from a GPS shield on the Arduino hardware.
Send and Receive Data of Variable Lengths Using Arduino Serial Communication Blocks
Use the Serial Transmit and Serial Receive blocks from the Simulink® Support Package for Arduino® Hardware to transmit and receive data of variable lengths on the Arduino serial port using a USB to serial converter.
Capture Images Using ArduCam OV2640 Camera Module and ESP32 Hardware
Capture JPEG images using the ArduCam OV2640 camera module with ESP32 hardware.
