Remove Trends from Data

Measured signals can show overall patterns that are not intrinsic to the data. These trends can sometimes hinder the data analysis and must be removed.

Consider two electrocardiogram (ECG) signals with different trends. ECG signals are sensitive to disturbances such as power source interference. Load the signals and plot them.


t = (1:length(ecgl))';

plot(t,ecgl), grid
title 'ECG Signals with Trends', ylabel 'Voltage (mV)'

plot(t,ecgnl), grid
xlabel Sample, ylabel 'Voltage (mV)'

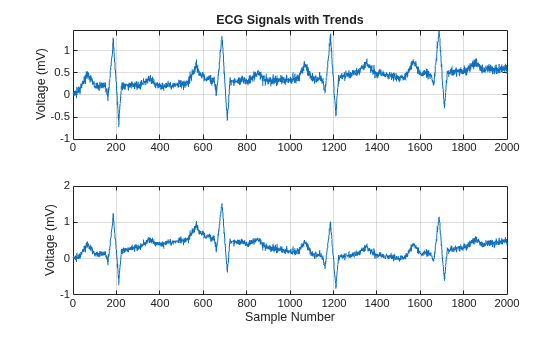

The signal on the first plot shows a linear trend. The trend on the second signal is nonlinear. To eliminate the linear trend, use the MATLAB® function detrend.

dt_ecgl = detrend(ecgl);

To eliminate the nonlinear trend, fit a low-order polynomial to the signal and subtract it. In this case, the polynomial is of order 6. Plot the two new signals.

opol = 6;
[p,s,mu] = polyfit(t,ecgnl,opol);
f_y = polyval(p,t,[],mu);

dt_ecgnl = ecgnl - f_y;

plot(t,dt_ecgl), grid
title 'Detrended ECG Signals', ylabel 'Voltage (mV)'

plot(t,dt_ecgnl), grid
xlabel Sample, ylabel 'Voltage (mV)'

The trends have been effectively removed. Observe how the signals do not show a baseline shift anymore. They are ready for further processing.
