Eliminate Outliers Using Hampel Identifier

This example shows a naive implementation of the procedure used by hampel to detect and remove outliers. The actual function is much faster.

Generate a random signal, x, containing 24 samples. Reset the random number generator for reproducible results.

rng default

lx = 24;
x = randn(1,lx);

Generate an observation window around each element of x. Take k = 2 neighbors at either side of the sample. The moving window that results has a length of 2×2+1=5 samples.

k = 2;

iLo = (1:lx)-k;
iHi = (1:lx)+k;

Truncate the window so that the function computes medians of smaller segments as it reaches the signal edges.

iLo(iLo<1) = 1;
iHi(iHi>lx) = lx;

Record the median of each surrounding window. Find the median of the absolute deviation of each element with respect to the window median.

for j = 1:lx
    w = x(iLo(j):iHi(j));
    medj = median(w);
    mmed(j) = medj;
    mmad(j) = median(abs(w-medj));

Scale the median absolute deviation with


to obtain an estimate of the standard deviation of a normal distribution.

sd = mmad/(erfinv(1/2)*sqrt(2));

Find the samples that differ from the median by more than nd = 2 standard deviations. Replace each of those outliers by the value of the median of its surrounding window. This is the essence of the Hampel algorithm.

nd = 2;
ki = abs(x-mmed) > nd*sd;

yu = x;
yu(ki) = mmed(ki);

Use the hampel function to compute the filtered signal and annotate the outliers. Overlay the filtered values computed in this example.


hold on
hold off

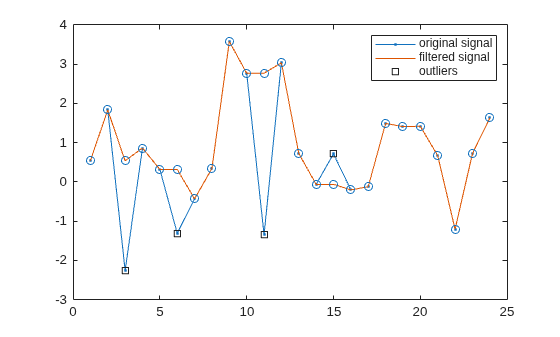

Figure contains an axes object. The axes object contains 3 objects of type line. One or more of the lines displays its values using only markers These objects represent original signal, filtered signal, outliers.
