Unbuffered DDR3L Architectural Kit
Implement an unbuffered DDR3L interface for pre-layout analysis or post-layout verification.
DDR3L is a lower voltage version of standard DDR3 that utilizes a 1.35V I/O voltage instead of 1.5V. This unbuffered DDR3L architectural signal integrity kit includes all the transfer nets, timing models, waveform processing levels and generic models for an unbuffered DDR3L interface. This includes generic buffer models for the DDR3L controller and SDRAM, along with fully functional timing models and complete waveform processing levels. You can modify the kit to match your exact implementation. Then, perform complete pre-layout solution space analysis and/or full post-layout verification for waveform quality and timing margins.
Open Unbuffered DDR3L Kit

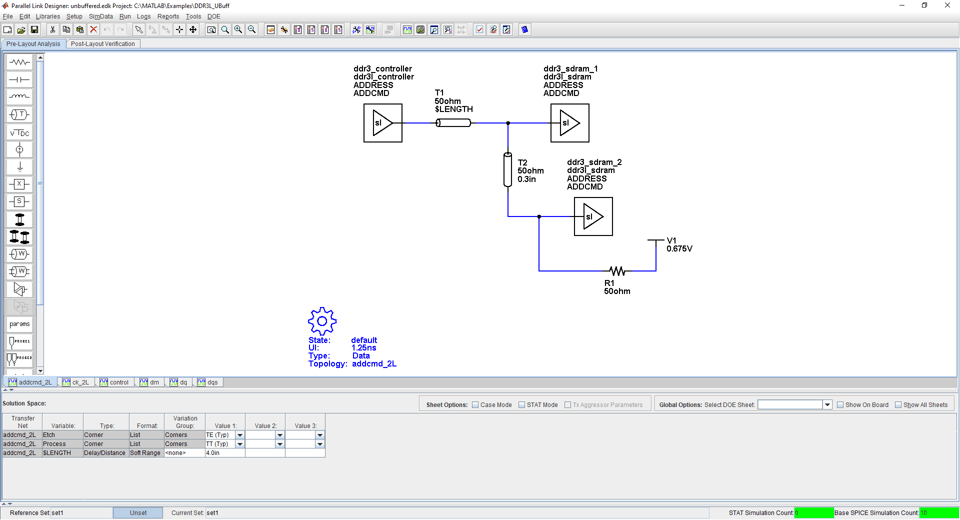

Open the unbuffered DDR3L kit in the Parallel Link Designer app using the
For more information about the unbuffered DDR3L architectural signal integrity kit, including block diagrams, system configurations, transfer nets and libraries, along with instructions on how to customize the kit for a specific implementation, refer to the document DDR3L_Unbuffered.pdf that is attached to this example as a supporting file.
 JEDEC – DDR3 SDRAM Standard. JESD79-3E, July 2010.
 JEDEC – Addendum No. 1 to JESD79-3 – 1.35 V DDR3L-800, DDR3L-1066, DDR3L-1333, and DDR3L-1600. JESD79-3-1, July 2010.
