advance

Move simulation forward by one sample time

    Description

    example

    isrunning = advance(sc) moves the simulation forward by the amount of time specified by the SampleTime property of the scenario sc.

    Examples

    collapse all

    Create a satellite scenario object and set the AutoSimulate property to false to enable manual simulation of the satellite scenario.

    startTime = datetime(2022,1,12);
    stopTime = startTime + days(0.5);
    sampleTime = 60;                             % Seconds
    sc = satelliteScenario('AutoSimulate',false);

    Add a GPS satellite constellation to the scenario.

    sat = satellite(sc,"gpsAlmanac.txt");

    Simulate the scenario using the advance function.

    while advance(sc)
    end

    Obtain the satellite position histories.

    p = states(sat);

    AutoSimulate is false, so restart the scenario before adding a ground station.

    restart(sc);

    Add a ground station to the scenario.

    gs = groundStation(sc);

    Add access analysis between each satellite and ground station.

    ac = access(sat,gs);

    Simulate the scenario and determine the access intervals.

    while advance(sc)
    end
    intvls1 = accessIntervals(ac)
    intvls1=35×8 table
         Source           Target           IntervalNumber         StartTime                EndTime           Duration    StartOrbit    EndOrbit
        ________    ___________________    ______________    ____________________    ____________________    ________    __________    ________

        "PRN:1"     "Ground station 32"          1           11-Jan-2020 23:20:25    12-Jan-2020 05:15:47      21322        NaN          NaN
        "PRN:2"     "Ground station 32"          1           12-Jan-2020 04:03:16    12-Jan-2020 07:40:50      13055        NaN          NaN
        "PRN:3"     "Ground station 32"          1           11-Jan-2020 19:50:06    11-Jan-2020 21:38:53     6527.3        NaN          NaN
        "PRN:3"     "Ground station 32"          2           12-Jan-2020 01:52:43    12-Jan-2020 06:42:49      17406        NaN          NaN
        "PRN:4"     "Ground station 32"          1           11-Jan-2020 19:50:06    12-Jan-2020 00:11:11      15665        NaN          NaN
        "PRN:4"     "Ground station 32"          2           12-Jan-2020 04:54:02    12-Jan-2020 07:40:50      10008        NaN          NaN
        "PRN:5"     "Ground station 32"          1           12-Jan-2020 05:52:03    12-Jan-2020 07:40:50     6527.3        NaN          NaN
        "PRN:6"     "Ground station 32"          1           12-Jan-2020 02:43:29    12-Jan-2020 07:40:50      17841        NaN          NaN
        "PRN:7"     "Ground station 32"          1           11-Jan-2020 21:09:52    12-Jan-2020 03:27:00      22628        NaN          NaN
        "PRN:8"     "Ground station 32"          1           11-Jan-2020 20:33:36    12-Jan-2020 03:19:45      24369        NaN          NaN
        "PRN:9"     "Ground station 32"          1           11-Jan-2020 19:50:06    12-Jan-2020 00:47:27      17841        NaN          NaN
        "PRN:9"     "Ground station 32"          2           12-Jan-2020 05:08:32    12-Jan-2020 07:40:50     9138.2        NaN          NaN
        "PRN:10"    "Ground station 32"          1           12-Jan-2020 00:32:56    12-Jan-2020 01:59:58     5221.8        NaN          NaN
        "PRN:11"    "Ground station 32"          1           11-Jan-2020 22:15:09    12-Jan-2020 04:39:32      23063        NaN          NaN
        "PRN:12"    "Ground station 32"          1           12-Jan-2020 04:32:16    12-Jan-2020 07:40:50      11314        NaN          NaN
        "PRN:13"    "Ground station 32"          1           12-Jan-2020 00:03:56    12-Jan-2020 02:50:44      10008        NaN          NaN
          ⋮

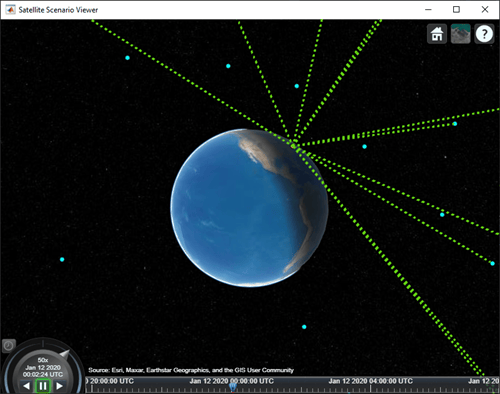

    Visualize the simulation results.

    v = satelliteScenarioViewer(sc,'ShowDetails',false);
    play(sc);

    Verify that the access intervals are the same when you set the AutoSimulate property to true.

    sc.AutoSimulate = true;
    intvls2 = accessIntervals(ac)
    intvls2=35×8 table
         Source           Target           IntervalNumber         StartTime                EndTime           Duration    StartOrbit    EndOrbit
        ________    ___________________    ______________    ____________________    ____________________    ________    __________    ________

        "PRN:1"     "Ground station 32"          1           11-Jan-2020 23:20:25    12-Jan-2020 05:15:47      21322        NaN          NaN
        "PRN:2"     "Ground station 32"          1           12-Jan-2020 04:03:16    12-Jan-2020 07:48:06      13490        NaN          NaN
        "PRN:3"     "Ground station 32"          1           11-Jan-2020 19:50:06    11-Jan-2020 21:38:53     6527.3        NaN          NaN
        "PRN:3"     "Ground station 32"          2           12-Jan-2020 01:52:43    12-Jan-2020 06:42:49      17406        NaN          NaN
        "PRN:4"     "Ground station 32"          1           11-Jan-2020 19:50:06    12-Jan-2020 00:11:11      15665        NaN          NaN
        "PRN:4"     "Ground station 32"          2           12-Jan-2020 04:54:02    12-Jan-2020 07:48:06      10444        NaN          NaN
        "PRN:5"     "Ground station 32"          1           12-Jan-2020 05:52:03    12-Jan-2020 07:48:06     6962.4        NaN          NaN
        "PRN:6"     "Ground station 32"          1           12-Jan-2020 02:43:29    12-Jan-2020 07:48:06      18276        NaN          NaN
        "PRN:7"     "Ground station 32"          1           11-Jan-2020 21:09:52    12-Jan-2020 03:27:00      22628        NaN          NaN
        "PRN:8"     "Ground station 32"          1           11-Jan-2020 20:33:36    12-Jan-2020 03:19:45      24369        NaN          NaN
        "PRN:9"     "Ground station 32"          1           11-Jan-2020 19:50:06    12-Jan-2020 00:47:27      17841        NaN          NaN
        "PRN:9"     "Ground station 32"          2           12-Jan-2020 05:08:32    12-Jan-2020 07:48:06     9573.3        NaN          NaN
        "PRN:10"    "Ground station 32"          1           12-Jan-2020 00:32:56    12-Jan-2020 01:59:58     5221.8        NaN          NaN
        "PRN:11"    "Ground station 32"          1           11-Jan-2020 22:15:09    12-Jan-2020 04:39:32      23063        NaN          NaN
        "PRN:12"    "Ground station 32"          1           12-Jan-2020 04:32:16    12-Jan-2020 07:48:06      11749        NaN          NaN
        "PRN:13"    "Ground station 32"          1           12-Jan-2020 00:03:56    12-Jan-2020 02:50:44      10008        NaN          NaN
          ⋮

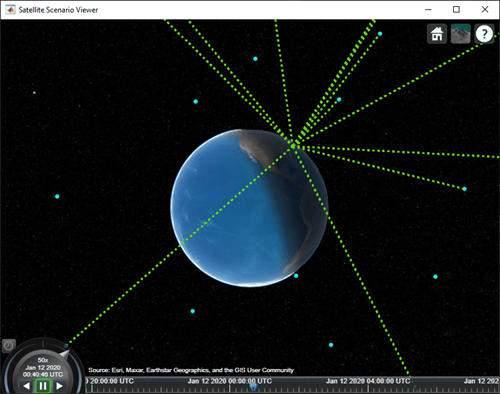

    Visualize the scenario.

    play(sc);

    Input Arguments

    collapse all

    Satellite scenario, specified as a satelliteScenario object. The argument applies only if the AutoSimulate property of the sc object is false.

    Output Arguments

    collapse all

    Running status of the satellite scenario simulation, returned as a logical 1 (true) or 0 (false). The isrunning value is true until the scenario reaches the specified StopTime value.

    Version History

    Introduced in R2022a
