replace

Remove current data and add new data to Smith chart

Syntax

replace(plot,data)

replace(plot,frequency,data)

Description

replace(plot,data) removes all current data from a Smith chart, plot, and adds new data to the Smith chart.

replace(plot,frequency,data) removes all current data and adds new data to the Smith chart based on multiple data sets containing frequencies corresponding to columns of the data matrix.

Examples

Replace S-Parameter Data on an existing Smith Plot

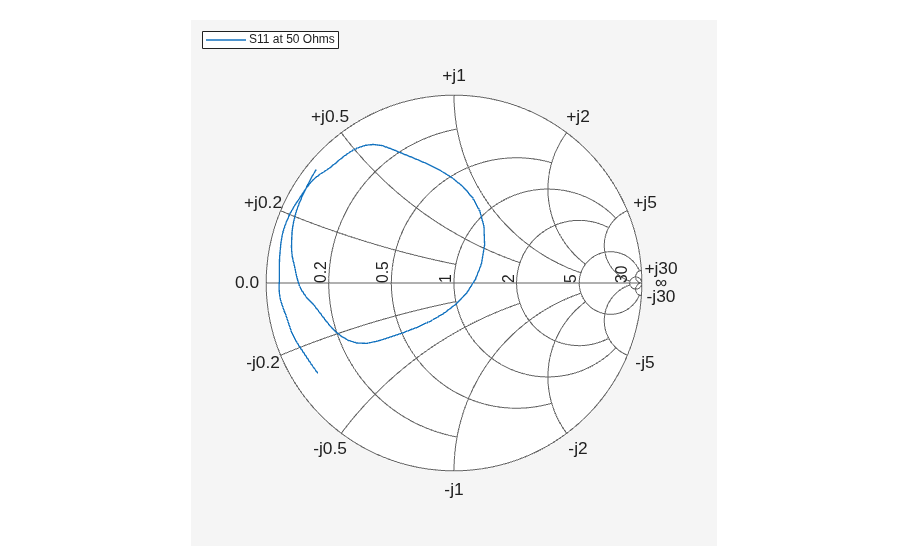

Read S-parameter data.

amp = read(rfckt.amplifier,'default.s2p');
Sa = sparameters(amp);
smithplot(Sa,[1,1],'LegendLabels','S11 at 50 Ohms');

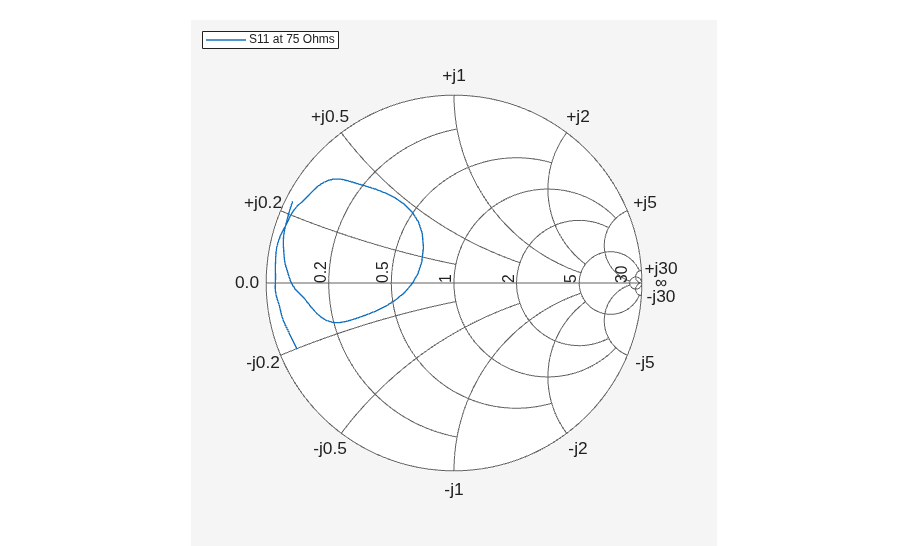

Plot S-parameter object with a new impedance of Z0 = 75 Ohms.

Sa = sparameters(Sa,75);
S11 = rfparam(Sa,1,1);
Freq = Sa.Frequencies;
s = smithplot('gco');
replace(s, Freq, S11);
s.LegendLabels = 'S11 at 75 Ohms';

Input Arguments

plot — Smith plot

plot handle

Smith chart handle, specified as a plot handle. If the handle of the Smith chart is not retained during creation, use p = smithplot('gco').

data — Input data

complex vector | complex matrix

Input data, specified as a complex vector or complex matrix.

For a matrix D, the columns of D are independent datasets. For N-by-D arrays, dimensions 2 and greater are independent datasets.

Data Types: double
Complex Number Support: Yes

frequency — Frequency data

real vector

Frequency data, specified as a real vector.

Data Types: double

Version History

Introduced in R2017b
