clutterRegionData

Create data structure used as input to clutter region plotter

Since R2022b

Syntax

plotterData = clutterRegionData(cluttergen)

data = clutterRegionData(cluttergen,plotheight)

Description

plotterData = clutterRegionData(cluttergen) creates a plotter data structure plotterData from a ClutterGenerator object cluttergen. The data structure is used as input to the plotClutterRegion function.

data = clutterRegionData(cluttergen,plotheight) also specifies the height plotheight of the clutter region.

Examples

Plot Clutter Region in Radar Scenario

Create a radar scenario with a radarDataGenerator object attached to a platform.

scenario = radarScenario;
rdr = radarDataGenerator(1,'no scanning', ...
    'FieldOfView',[30 30],'MountingAngles',[0 45 0]);
platform(scenario,'Sensors',rdr,'Position',[0 0 1e3]);

Enable clutter generation using the clutterGenerator.

clut = clutterGenerator(scenario,rdr);

Run the scenario for one frame.

dets = detect(scenario);

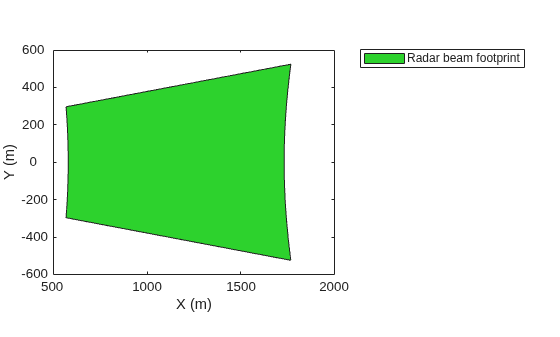

Create a theater plotter with an associated clutterRegionPlotter. Then plot the default clutter region.

tp = theaterPlot;
regPlotter = clutterRegionPlotter(tp, ...
    "DisplayName","Radar beam footprint");
regPlotterData = clutterRegionData(clut);
plotClutterRegion(regPlotter,regPlotterData)

Input Arguments

cluttergen — Clutter generator

ClutterGenerator object

Clutter generator, specified as a ClutterGenerator object.

plotheight — Region height

minimum height over all regions (default) | scalar

Height for all regions, specified as a scalar. Units are in meters.

Output Arguments

plotterData — Plotter data

struct

Plotter data structure, returned as a struct.

Field Name	Description
X	x-coordinates of region specified as a M-by-N matrix. Each column contains the x-coordinates of a different clutter region. N is the number of clutter regions.
Y	y-coordinates of region specified as a M-by-N matrix. Each column contains the y-coordinates of a different clutter region. N is the number of clutter regions.
RegionPlotHeight	Height of the clutter region, specified as a scalar. The same height applies to all regions.
PatchCenters	Patch centers, specified as a 3-by-N matrix where each column is a patch center position in scenario coordinates.

The units for all fields of the struct are in meters. The RegionPlotHeight field is obtained from the plotheight input argument.

Version History

Introduced in R2022b
