pambgfun

Periodic ambiguity function

Syntax

pafmag = pambgfun(X,fs)

[pafmag,delay,doppler] = pambgfun(X,fs)

[pafmag,delay,doppler] = pambgfun(X,fs,P)

[pafmag,delay] = pambgfun(___,Cut="Doppler")

[pafmag,delay] = pambgfun(___,Cut="Doppler",CutValue=V)

[pafmag,doppler] = pambgfun(___,Cut="Delay")

[pafmag,doppler] = pambgfun(___,Cut="Delay",CutValue=V)

[pafmag,delay,doppler] = pambgfun(___,Cut="2D")

pambgfun(___)

Description

pafmag = pambgfun(X,fs) returns the magnitude of the normalized periodic ambiguity function (PAF) for one period of the periodic signal X. fs is the sampling rate.

[pafmag,delay,doppler] = pambgfun(X,fs) also returns the time delay vector, delay, and the Doppler shift vector, doppler. The delay vector is along the zero Doppler cut of the PAF. The Doppler shift vector is along the zero delay cut.

[pafmag,delay,doppler] = pambgfun(X,fs,P) returns the magnitude of the normalized PAF for P periods of the periodic signal X.

[pafmag,delay] = pambgfun(___,Cut="Doppler") returns the PAF, pafmag, along a zero Doppler cut. The delay argument contains the time delay vector corresponding to the columns of pafmag.

[pafmag,delay] = pambgfun(___,Cut="Doppler",CutValue=V) returns the PAF, pafmag, along a nonzero Doppler cut specified by the values V. The delay argument contains the time delay vector corresponding to the columns of pafmag.

[pafmag,doppler] = pambgfun(___,Cut="Delay") returns the PAF, pafmag, along the zero delay cut. The doppler argument contains the Doppler shift vector corresponding to the rows of pafmag.

[pafmag,doppler] = pambgfun(___,Cut="Delay",CutValue=V) returns the PAF, pafmag, along a nonzero delay cut specified by the values V. The doppler argument contains the Doppler shift vector corresponding to the rows of pafmag.

[pafmag,delay,doppler] = pambgfun(___,Cut="2D") returns the PAF, pafmag, for all delays and Doppler shifts. The doppler argument contains the Doppler shift vector corresponding to the rows of pafmag. The delay argument contains the time delay vector corresponding to the columns of pafmag. You cannot use "CutValue" when "Cut" is set to "2D".

pambgfun(___) with no output arguments plots the PAF. When "Cut" is "2D", the function produces a contour plot of the PAF function. When "Cut" is "Delay" or "Doppler", the function produces a line plot of the PAF cut.

Examples

Periodic Ambiguity Function for Rectangular Waveform

Plot the PAF function of a rectangular pulse waveform for one period. Assume the pulse repetition frequency (PRF) is 10.0 kHz and that the sampling frequency is a multiple of the PRF.

PRF = 10.0e3;
fs = 101*PRF;
waveform = phased.RectangularWaveform('SampleRate',fs,'PulseWidth',1e-5, ...
    'NumPulses',1,'PRF',PRF);
wav = waveform();
pamf = pambgfun(wav,fs);
imagesc(pamf)
axis equal
axis tight

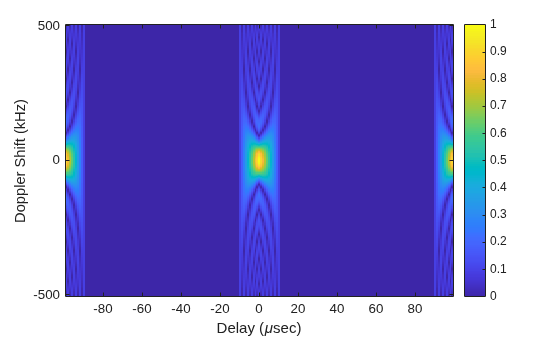

Periodic Ambiguity Function with Delay and Doppler Output

Plot the periodic ambiguity function of a rectangular pulse waveform for one period. Assume the pulse repetition frequency (PRF) is 10.0 kHz and that the sampling frequency is a multiple of the PRF. Return the Doppler and delay values from the pambgfun function.

PRF = 10.0e3;
fs = 101*PRF;
waveform = phased.RectangularWaveform('SampleRate',fs,'PulseWidth',1e-5, ...
    'NumPulses',1,'PRF',PRF);
wav = waveform();
[pamf,delays,doppler] = pambgfun(wav,fs);

Plot the periodic ambiguity function.

imagesc(delays*1e6,doppler/1000,pamf)
axis xy
xlabel('Delay (\musec)')
ylabel('Doppler Shift (kHz)')
colorbar

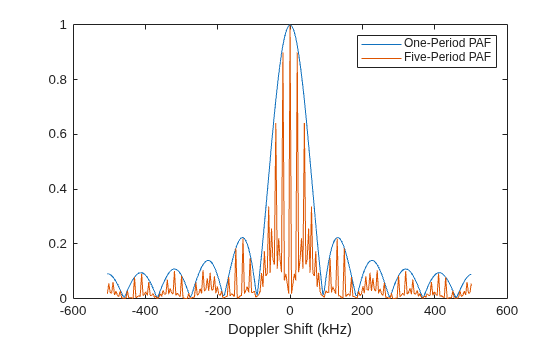

Zero Delay Cut of Periodic Ambiguity Function

Plot a cut at zero delay for the periodic ambiguity function of a rectangular pulse waveform for five periods. Assume the pulse repetition frequency is 10.0 kHz and that the sampling frequency is a multiple of the PRF. Return the Doppler and delay values from the function.

PRF = 10.0e3;
fs = 101*PRF;
waveform = phased.RectangularWaveform('SampleRate',fs,'PulseWidth',1e-5, ...
    'NumPulses',1,'PRF',PRF);
wav = waveform();

Find the periodic ambiguity functions along a zero delay cut for one and for five periods.

[pamf,delays,doppler] = pambgfun(wav,fs,1);
f1 = pamf(:,101);
[pamf,delays,doppler] = pambgfun(wav,fs,5);
f2 = pamf(:,101);

Plot the periodic ambiguity functions.

plot(doppler/1000,f1)
hold on
plot(doppler/1000,f2)
xlabel('Doppler Shift (kHz)')
legend('One-Period PAF','Five-Period PAF')

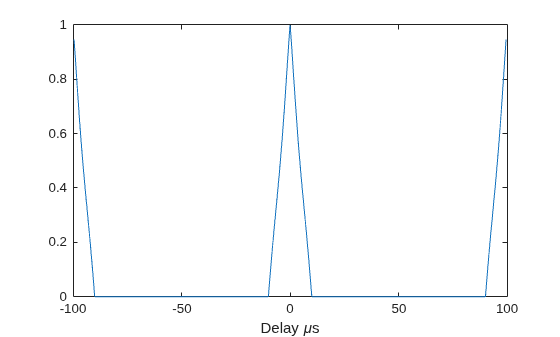

Zero Doppler Cut of LFM Periodic Ambiguity Function

Plot the zero Doppler cut for the five-period periodic ambiguity function of a linear FM pulse waveform. Assume the pulse repetition frequency (PRF) is 10.0 kHz and that the sampling frequency is a multiple of the PRF. Return the Doppler and delay values from the pambgfun function.

PRF = 10.0e3;
fs = 200*PRF;
waveform = phased.LinearFMWaveform('SampleRate',fs,'PulseWidth',1e-5, ...
    'NumPulses',1,'PRF',PRF);
wav = waveform();

Find the five-period periodic ambiguity function along a zero Doppler cut.

[pamf,delays] = pambgfun(wav,fs,5,'Cut','Doppler');

Plot the periodic ambiguity functions.

plot(delays*1.0e6,pamf)
xlabel('Delay \mus')

Non-Zero Doppler Cut of LFM Periodic Ambiguity Function

Plot a non-zero Doppler cut for the 5-period periodic ambiguity function of a linear FM pulse waveform by explicitly specifying the cut value. Assume the pulse repetition frequency is 10.0e3 Hz and that the sampling frequency is a multiple of the PRF. Return the Doppler and delay values from the function.

PRF = 10.0e3;
fs = 200*PRF;
waveform = phased.LinearFMWaveform('SampleRate',fs,'PulseWidth',1e-5,...
    'NumPulses',1,'PRF',PRF);
wav = waveform();

Find the 5-period periodic ambiguity function along a non-zero Doppler cut.

dopval = 20.0;
[pamf,delays] = pambgfun(wav,fs,5,'Cut','Doppler','CutValue',dopval);

Plot the periodic ambiguity functions.

plot(delays*1.0e6,pamf)
xlabel('Delay \mus')

Zero-Delay Cut of FMCW Periodic Ambiguity Function

Plot a zero delay cut for the three-period periodic ambiguity function of an FMCW waveform. Assume a sweep bandwidth of 100 kHz with a sampling frequency of 1 MHz. Return and plot the Doppler shift values.

fs = 1.0e6;
waveform = phased.FMCWWaveform('SweepBandwidth',100.0e3,'SampleRate',fs, ...
    'OutputFormat','Sweeps','NumSweeps',1);
wav = waveform();

Find the three-period periodic ambiguity function along a zero delay cut.

[pamf,doppler] = pambgfun(wav,fs,3,'Cut','Delay');

Plot the zero delay cut of the periodic ambiguity function.

plot(doppler/1.0e3,pamf)
xlabel('Doppler Shift (kHz)')

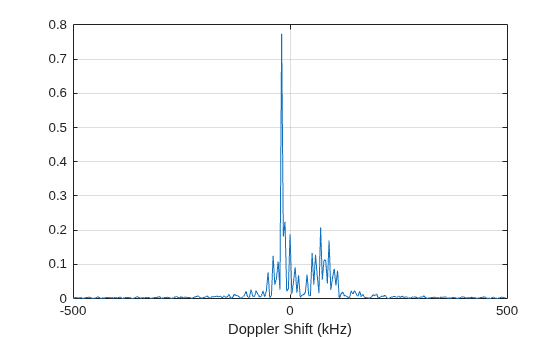

Nonzero Delay Cut of FMCW Periodic Ambiguity Function

Plot a non-zero delay cut of -20 μs for the three-period periodic ambiguity function of an FMCW waveform. Assume a sweep bandwidth of 100 kHz with a sampling frequency of 1 MHz. Return and plot the Doppler shift values.

fs = 1.0e6;
waveform = phased.FMCWWaveform('SweepBandwidth',100.0e3,'SampleRate',fs, ...
    'OutputFormat','Sweeps','NumSweeps',1,'SweepTime',100e-6);
wav = waveform();

Find the three-period periodic ambiguity function along a nonzero Delay cut.

delayval = -20.0e-6;
[pamf,doppler] = pambgfun(wav,fs,3,'Cut','Delay','CutValue',delayval);

Plot the nonzero delay cut of the periodic ambiguity function.

plot(doppler/1.0e3,pamf)
grid
xlabel('Doppler Shift (kHz)')

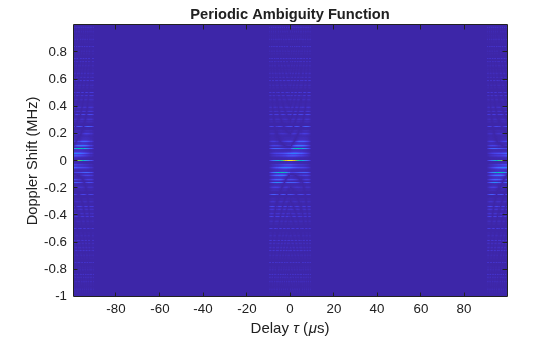

Linear FM Periodic Ambiguity Diagram Image

Display an image of the 9-period periodic ambiguity function for a linear FM pulse waveform. Assume the pulse repetition frequency is 10.0e3 Hz and that the sampling frequency is a multiple of the PRF.

PRF = 10.0e3;
fs = 200*PRF;
waveform = phased.LinearFMWaveform('SampleRate',fs,'PulseWidth',1e-5,...
    'NumPulses',1,'PRF',PRF);
wav = waveform();

Compute and display the 9-period periodic ambiguity function for all delays and frequencies.

[pamf,delays,doppler] = pambgfun(wav,fs,9,'Cut','2D');
imagesc(delays*1e6,doppler/1e6,pamf)
title('Periodic Ambiguity Function')
xlabel('Delay \tau ({\mu}s)')
ylabel('Doppler Shift (MHz)')
axis xy

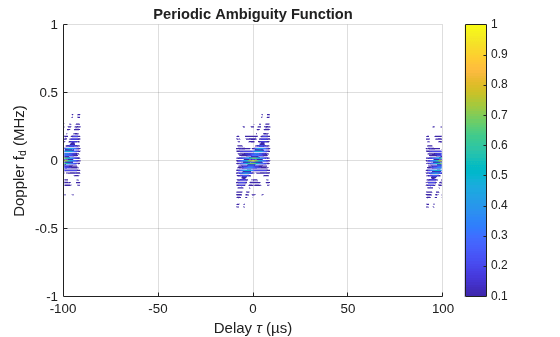

Linear FM Periodic Ambiguity Diagram

Plot the seven-period periodic ambiguity function of a linear FM pulse waveform. Assume the pulse repetition frequency (PRF) is 10.0 kHz and that the sampling frequency is a multiple of the PRF.

PRF = 10.0e3;
fs = 200*PRF;
waveform = phased.LinearFMWaveform('SampleRate',fs,'PulseWidth',1e-5, ...
    'NumPulses',1,'PRF',PRF);
wav = waveform();

Find the periodic ambiguity function.

pambgfun(wav,fs,7,'Cut','2D')

Input Arguments

X — Input pulse waveform

complex-valued vector

Input pulse waveform, specified as a complex-valued vector.

Example: [0,.1,.3,.4,.3,.1.0]

Data Types: double | single
Complex Number Support: Yes

fs — Sampling frequency

positive scalar

Sampling frequency, specified as a positive scalar. Units are in hertz.

Example: 3e3

Data Types: double | single

P — Number of periods

1 (default) | positive integer

Number of periods, specified as a positive integer.

Example: 5

Data Types: double | single

V — Optional time delay or Doppler shift at which ambiguity function cut is taken

0 (default) | real-valued scalar | real-valued vector

When you set "Cut" to "Delay" or "Doppler", use V to specify a nonzero cut value. You cannot use V when you set "Cut" to "2D".

When "Cut" is set to "Delay", V is the time delay at which the cut is taken. Time delay units are in seconds.

When "Cut" is set to "Doppler", V is the Doppler frequency shift at which the cut is taken. Doppler units are in Hz.

Example: 10.0

Data Types: double | single

Output Arguments

pafmag — Normalized PAF function magnitude

real-valued M-by-N matrix | real-valued M-element column vector | real-valued N-element row vector

Normalized PAF function magnitude, returned as a vector or a matrix of nonnegative real values. The dimensions of pafmag depend on the value of 'Cut'.

'Cut'	pafmagdimensions
"2D"	M-by-N matrix.
"Delay"	M-element column vector.
"Doppler"	N-element row vector.

M is the number of Doppler frequencies and N is the number of time delays.

delay — Time delay vector

real-valued N-element vector

Time delay vector, returned as an N-by-1 vector. If N is the length of signal X, then the delay vector consist of 2N – 1 samples in the range, –(N/2) – 1,...,(N/2) – 1).

doppler — Doppler shift vector

real-valued M vector

Doppler shift vector, returned as an M-by-1 vector of Doppler frequencies. The Doppler frequency vector consists of M = 2^{ceil(log2 N)} equally-spaced samples. Frequencies are (–(M/2)F_s,...,(M/2–1)F_s).

More About

Periodic Ambiguity Function

The periodic ambiguity function (PAF) is an extension of the ordinary ambiguity function to periodic waveforms.

Use this function analyze the response of a correlation receiver to a time-delayed or Doppler-shifted narrowband periodic waveform. Narrowband periodic signals consist of CW tones modulated by a periodic complex envelope. These types of signals are commonly used in radar systems to form transmitted pulse trains.

A time periodic waveform has the property y(t + T) = y(t), where T is the period. The PAF function for an N-period waveform is defined as

$$A_{NT}(\tau ,\nu )=\frac{1}{NT}{\displaystyle {\int }_0^{NT}y(t+\frac{\tau }{2})y^{*}(t-\frac{\tau }{2})e^{i2\pi \nu t}}dt$$

Taking advantage of the periodicity, you can rewrite the function as

$$A_{NT}(\tau ,\nu )=\frac{1}{NT}{\displaystyle \sum _{n=1}^N{e}^{i2\pi \nu (n-1)T}}{\displaystyle {\int }_0^{T}u(t+\frac{\tau }{2})u^{*}(t-\frac{\tau }{2})e^{i2\pi \nu s}ds}$$

The last term on the right side is the one-period PAF function, A_T(τ,ν). The first term on the right side is due to Doppler only. The Doppler term is proportional to the periodic sinc() function and you can rewrite the periodic ambiguity function as

$$A_{NT}(\tau ,\nu )=\frac{\sin 2\pi \nu NT}{N\sin 2\pi \nu T}{e}^{i2\pi \nu (N-1)T}{A}_T(\tau ,\nu )$$

The Doppler term improves the Doppler resolution by a factor of 1/NT.

The one-period PAF function is not the same as the ordinary ambiguity because the integration limits are different.

References

[1] Levanon, N. and E. Mozeson. Radar Signals. Hoboken, NJ: John Wiley & Sons, 2004.

[2] Mahafza, B. R., and A. Z. Elsherbeni. MATLAB^® Simulations for Radar Systems Design. Boca Raton, FL: CRC Press, 2004.

[3] Richards, M. A. Fundamentals of Radar Signal Processing. New York: McGraw-Hill, 2005.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• Does not support variable-size inputs.

• Supported only when output arguments are specified.

GPU Arrays
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Version History

Introduced in R2016b
